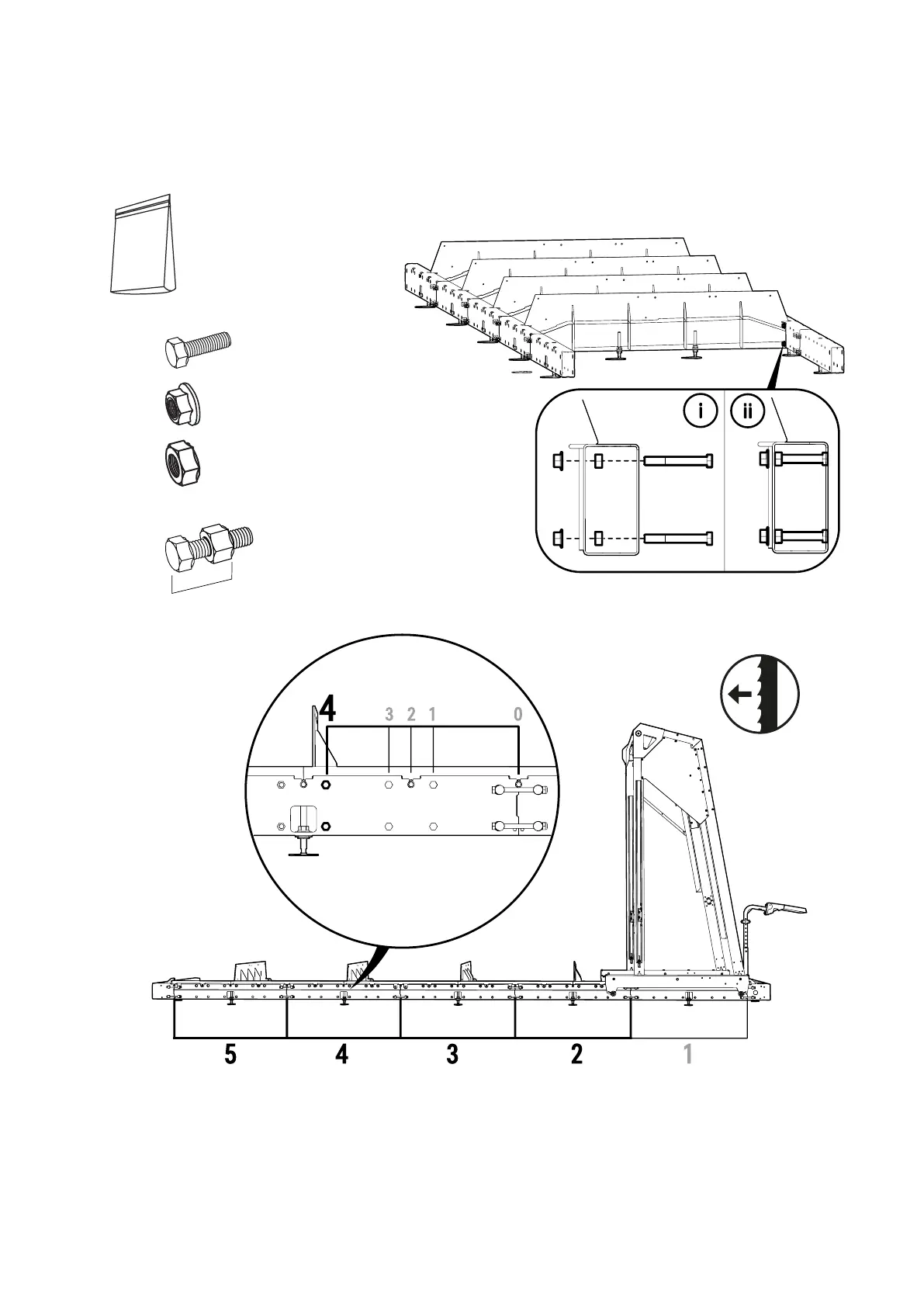

7. Attach the cross bunks to the rail pipes number 2,3,4 and 5 seen from the sawing direction. Count the hole
patterns from the pipe joint; the cross bunks should be placed on hole pattern 4 from each respective pipe
joint. Fasten the bolts ngertight and make sure that the bolt heads are level with the rail pipe.
02-00554-SKP
16 x M12x90
16 x M12
16 x
M12
78.5mm
