OTHER ADJUSTMENTS
Read through all the assembly instructions before starting assembly, then follow the instructions
step by step as you work.
The following instructions are crucial for a good operation of the sawmill, but the adjustments do not
affect each other and do not have to be carried out in a particular order.

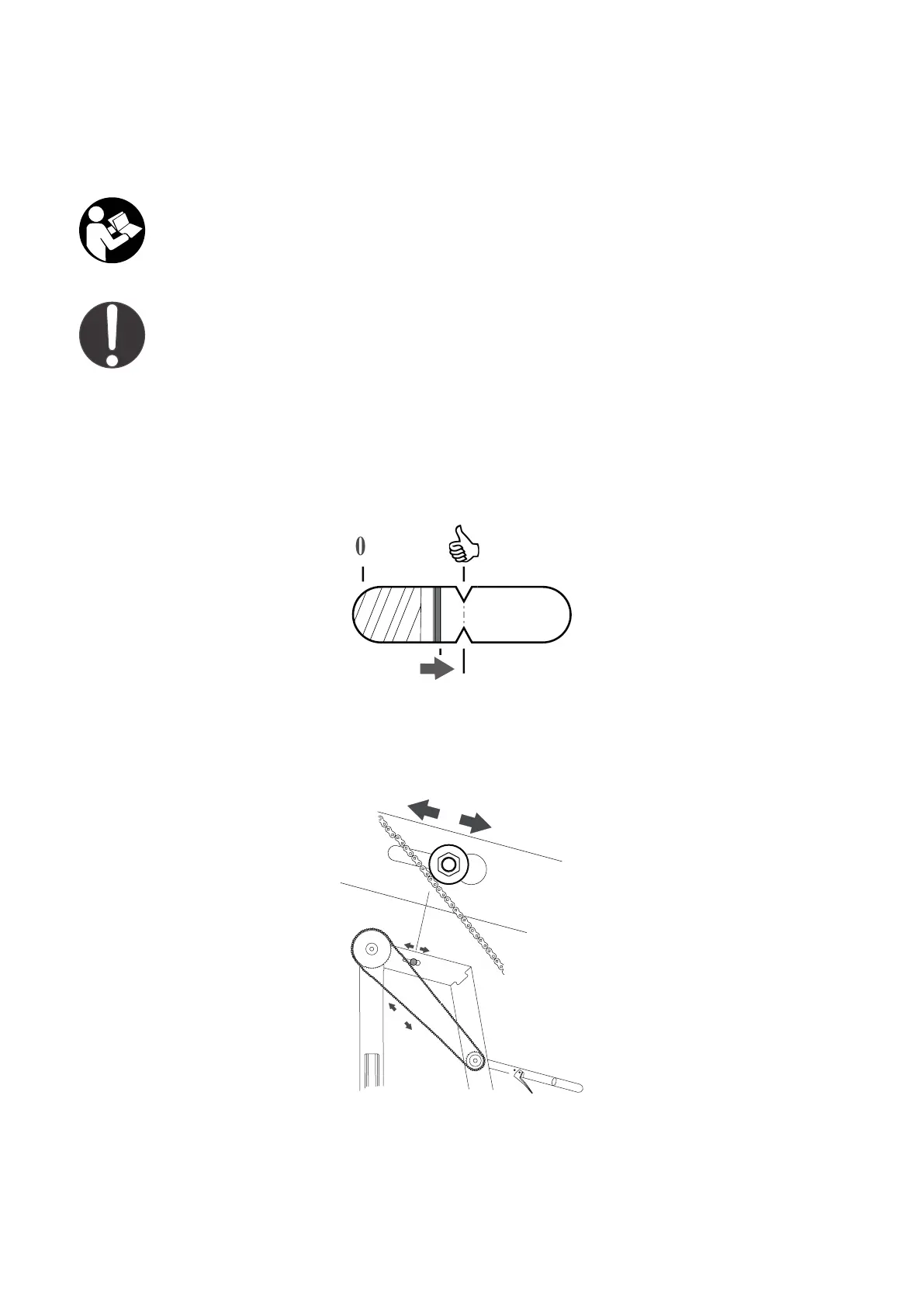

BLADE TENSION
Tension the blade by turning the T-handle clockwise. Read the blade tension scale, which is located inside the
band wheel guards. Tension the blade until the red line is aligned with the two “arrows” in the opening for the
blade tension spring.
CHAIN TENSION
The crank handle chain has to be tensioned to ensure good functioning of the lifting mechanism. First,
untighten the xing bolt of the chain tensioner. Then, move the chain tensioner towards the chain until the
chain is slightly tensioned. Tighten the bolting.
LOG SUPPORTS
To ensure good operation of the sawmill, it is important that the cross bunk and the log support are at right
angles to each other. Adjust this by turning the adjusting handle located at the lower part of the log support.
Check the angle with a set square.
USER MANUAL
81
