MOUNTING OF THE CHAIN

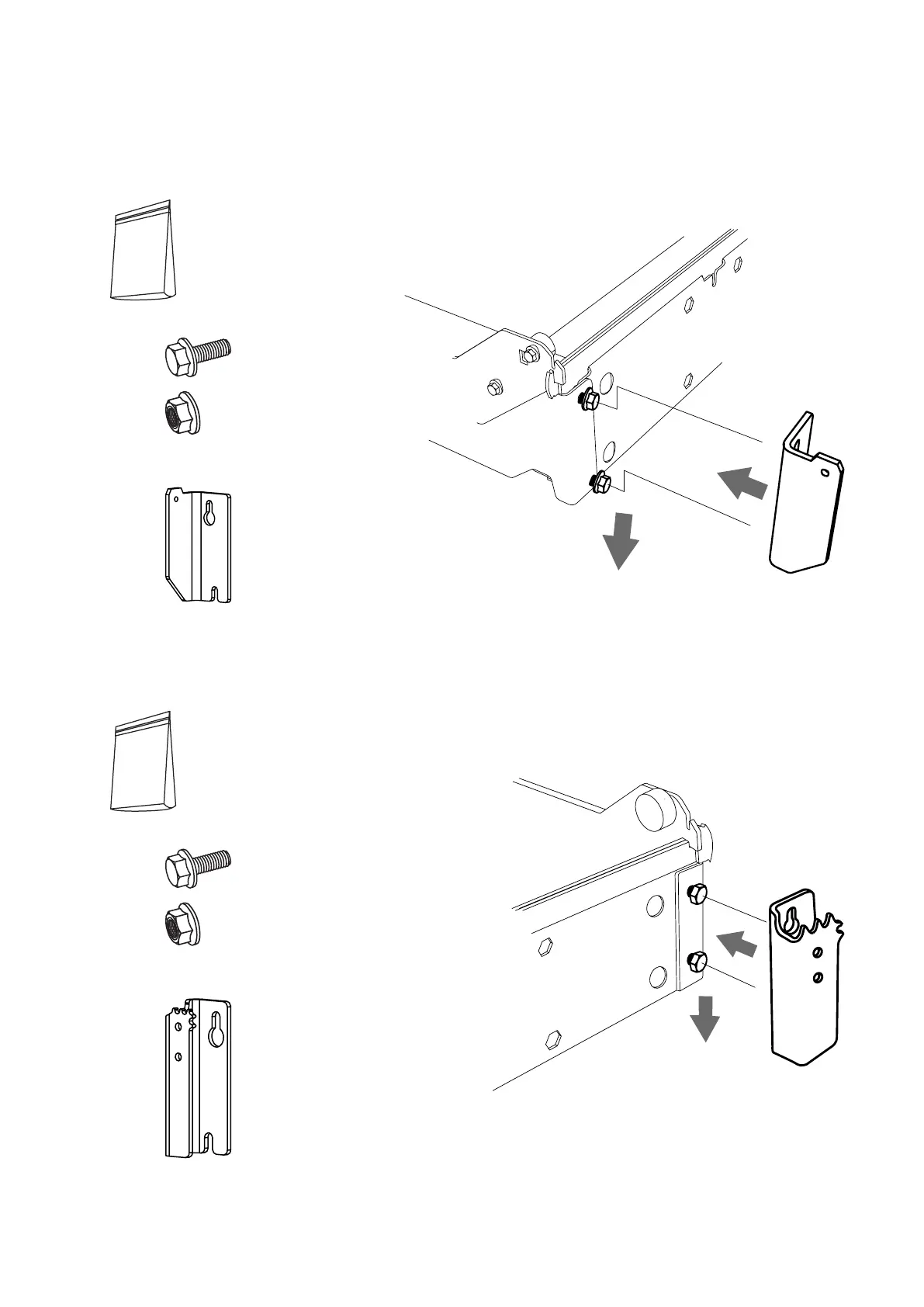

1. Attach the plate to the side of the rail pipe edge.
2 x M8x20
2 x M8
1 x
2.
Attach the second plate to the other end of the machine.
2 x M8x20
2 x M8
1 x
USER MANUAL
61
