THE FUNCTIONS OF THE SAWMILL
LOG CLAMPS

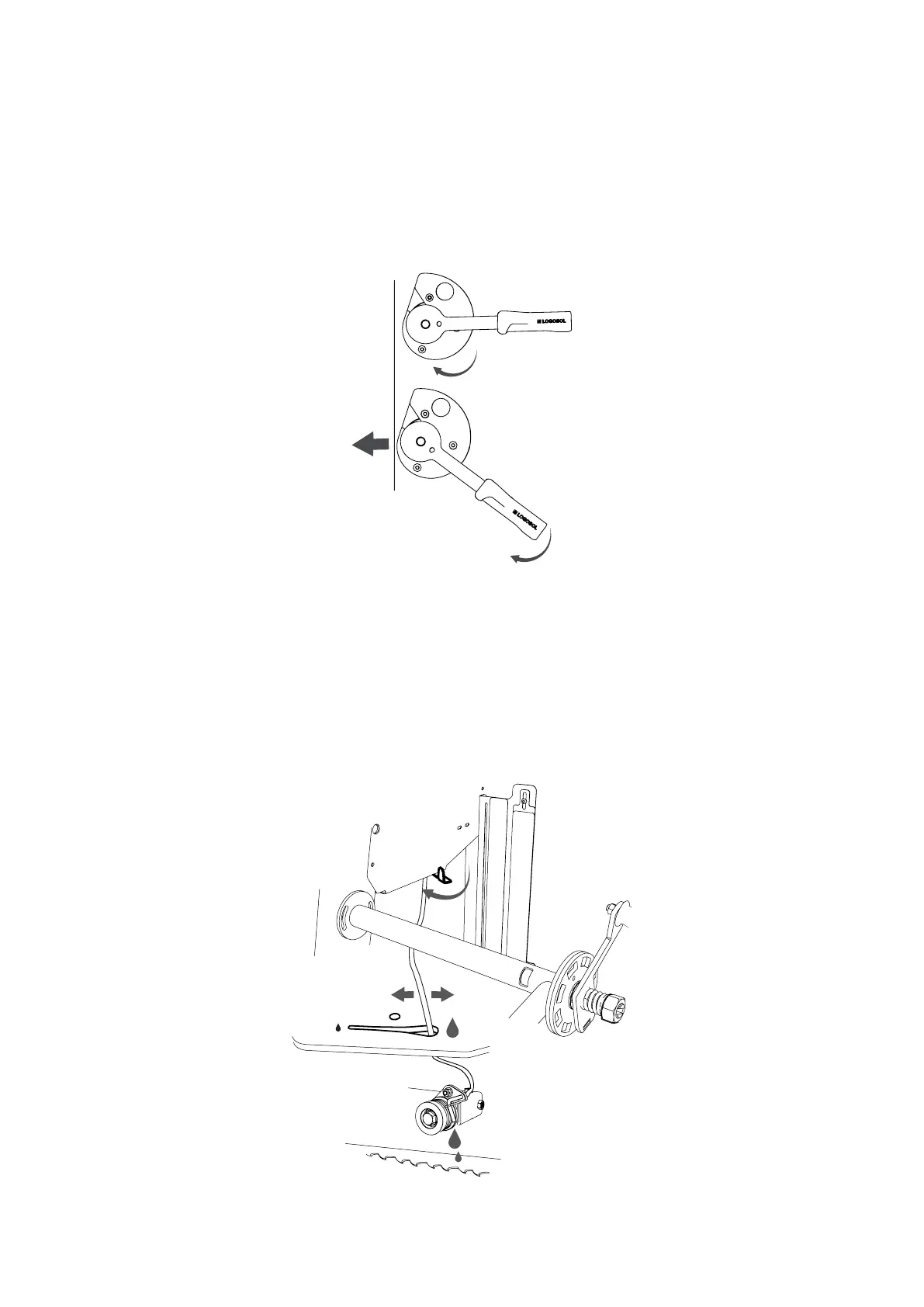

The sawmill comes with two log clamps that secure the log on the sawmill. The log clamp is an eccentric
clamping device.
First, set the eccentric plate so that it lies against the log. This is done by turning the eccentric plate clockwise.
Then, to secure the log, you turn the handle on the clamp clockwise, as shown in the illustration. To release the
tension, carry out the steps in reverse order and turn the plate and the handle counter-clockwise.
WATER COOLING
The water cooling of the blade is controlled by a lever located on the side plate at the operator side. In its
starting position, the lever points at a right angle from the side plate. To release the water ow, the lever is
pulled back. The ow of the water cooling is controlled by moving the cooling tube in the narrowing slot in the
motor bracket. Move the tube inwards or outwards in the slot until you reach the desired cooling level.
