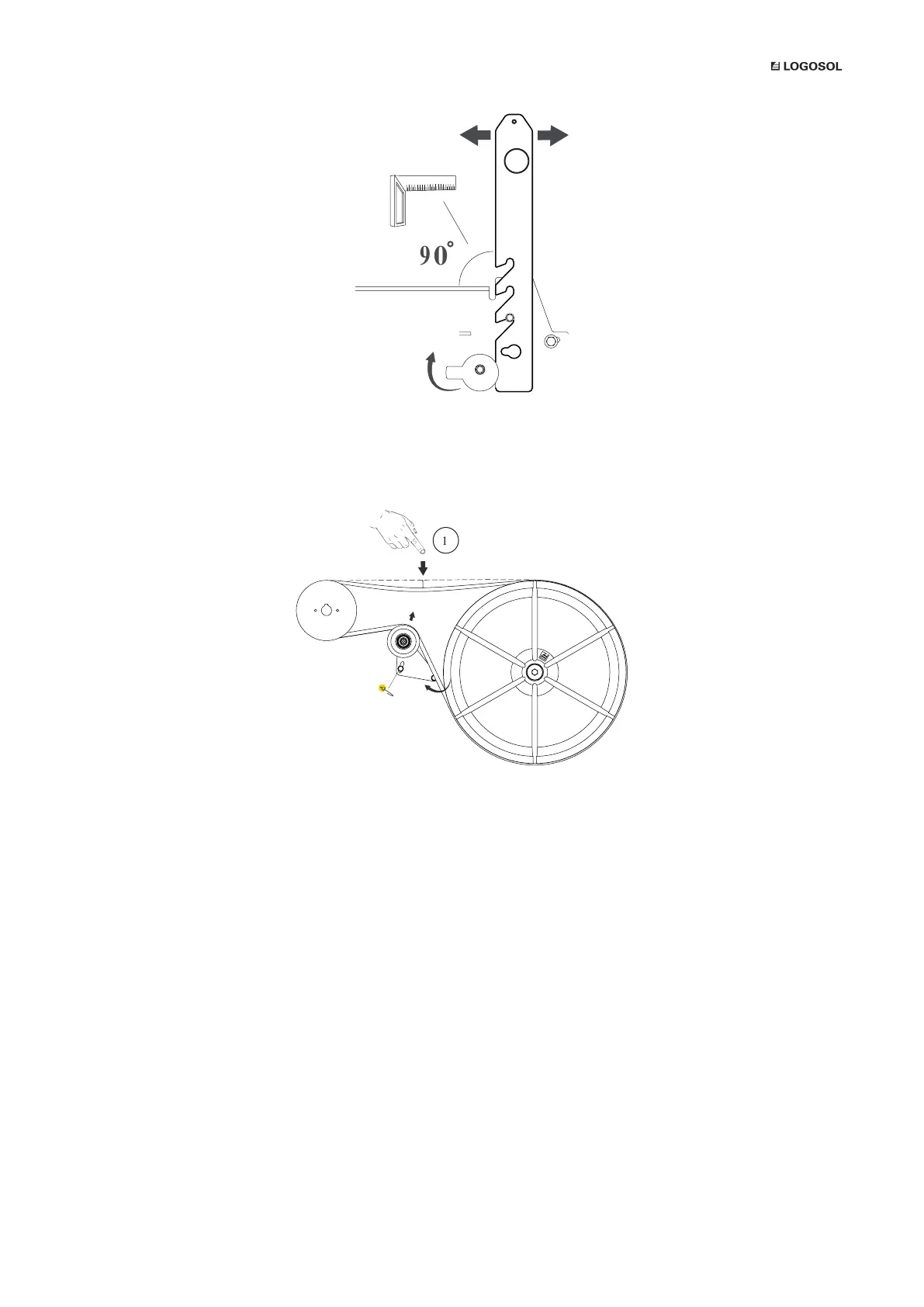

DRIVE BELT TENSION
To prevent the drive belt from slipping on the pulley, the drive belt has to be correctly tensioned. The belt
tensioner pulley assembly can be rotated around its lower bolting. Tension the belt until you have reached the
same values at the tension checking point as in the illustration to the right.
1
1. Tension checking point
Belt tension:
•
Pressure: 3kg
•
Deection: 6 mm
WATER TANK
The sawmill water tank has to be relled before operation. Rell through the opening in the back of the saw
carriage. The volume of the tank is 25 liters. There is a scale positioned on the side of the saw carriage that
shows how much water there is in the tank.
