Logosol B1651 - Mounting of the Operator Panel

MOUNTING OF THE OPERATOR PANEL

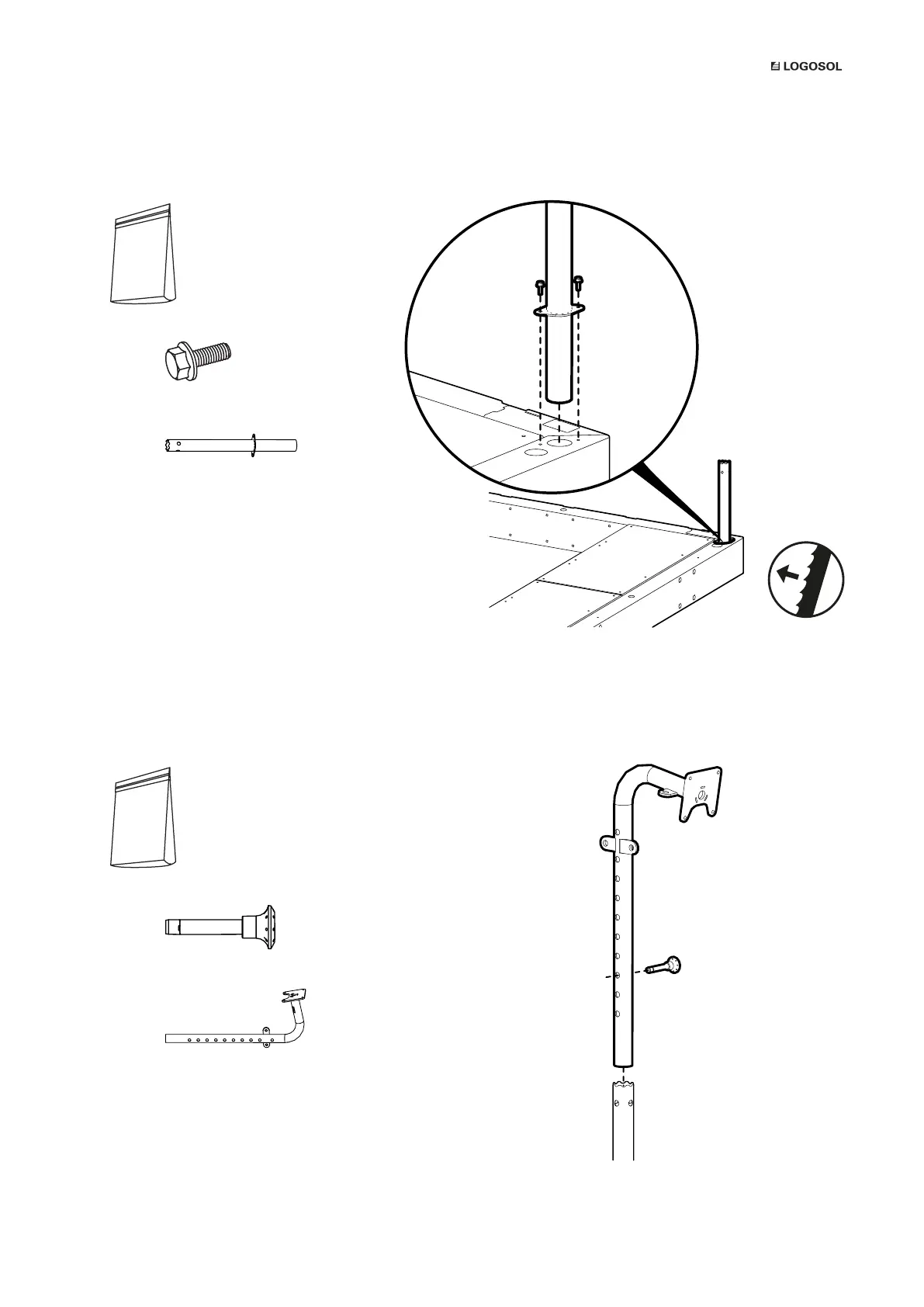

1. Please note the direction of the saw blade before assembling the following steps.
01-00955-SKP
2 x M6x16
1 x
2. Use the holes in the tube to position the operator panel at your desired height. It is recommended to have
it set just above your stomach. Using the holes above the seam allows free rotational movement of the
operator panel. Using the hole under the seam locks the operator panel in position, which can be useful
while transporting the band saw.
01-00955-SKP
1 x
1 x
USER MANUAL
