MOUNTING OF THE RAIL AND GUIDEBAR

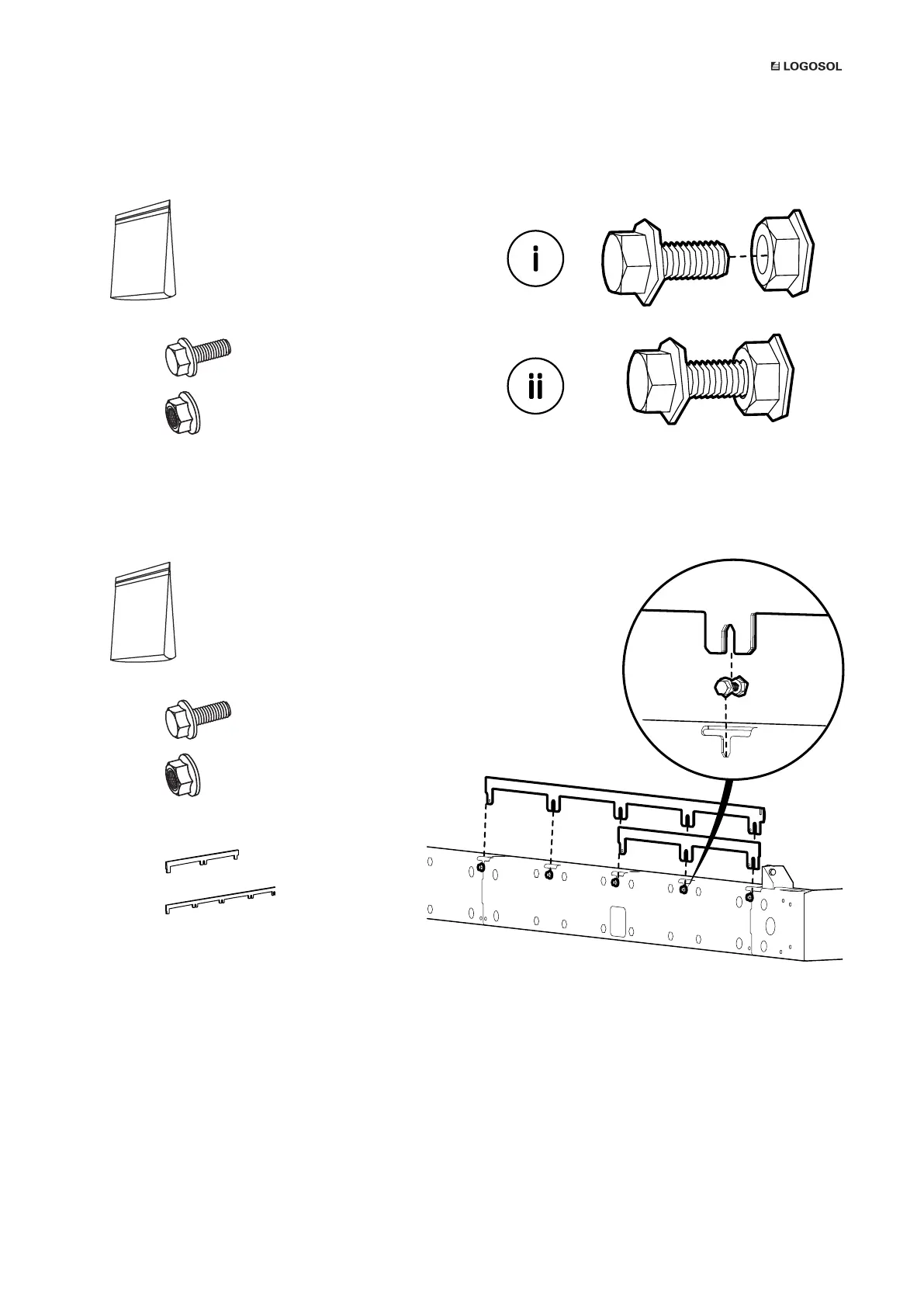

1. Leave a distance between the bolt head and the nut. This distance should be 8-10 mm.
1 x M8x16
1 x M8
2. The rail sections should be tted so that they overlap each other. The last short rail section should be tted
the same way as the rst one.
21 x M8x16
21 x M8
1 x 602mm
1 x 1195mm
