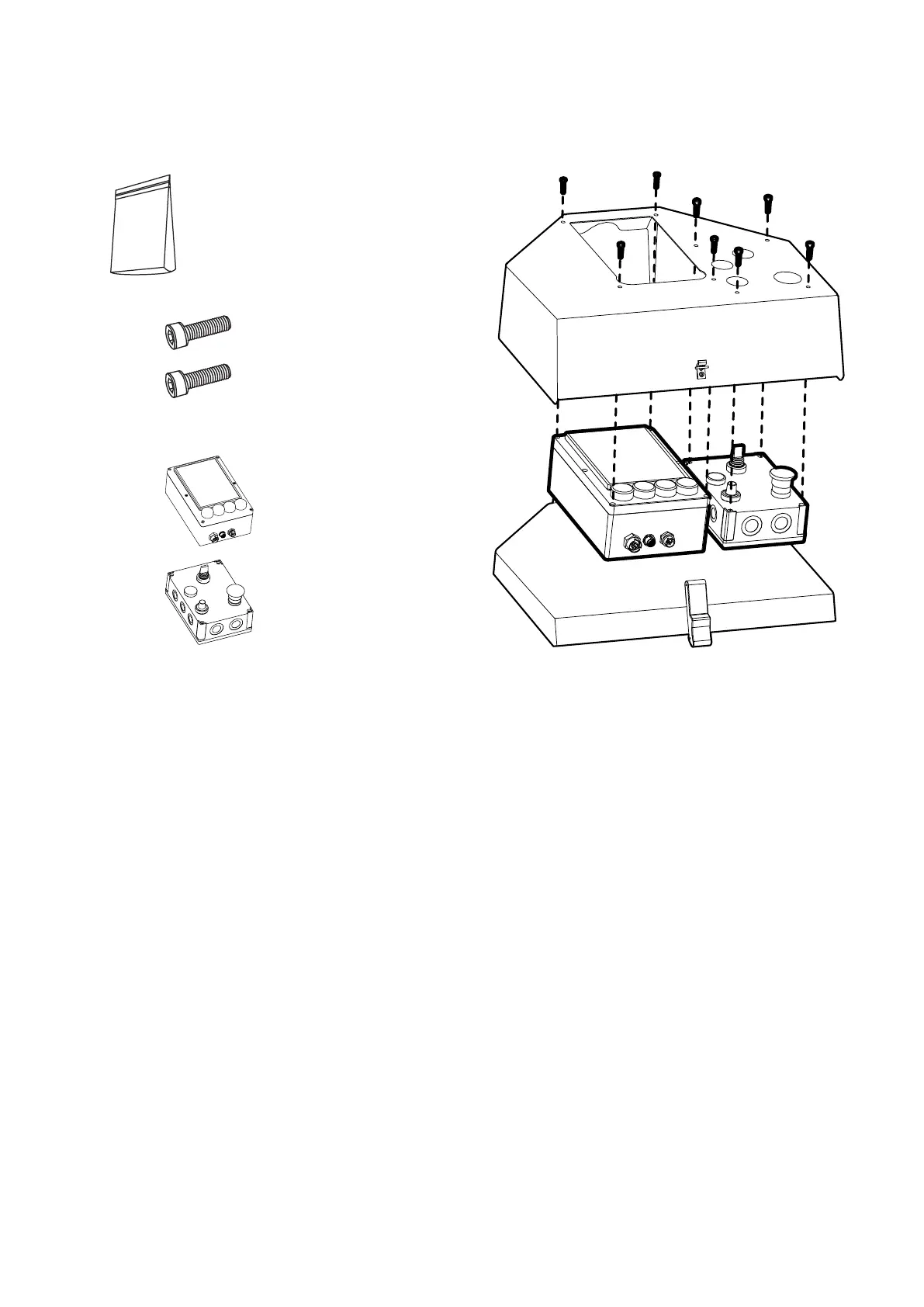

7. Fasten the consoles to the lid. Use the M4x20 screws to fasten the big console and the M5x20 to fasten the
smaller consol.
4 x
M5x20
4 x
M4x20
1 x
1 x
USER MANUAL
31
