Logosol B1651 - Page 33

3.
1 x 602mm
1 x 1195mm
7 x 1156mm

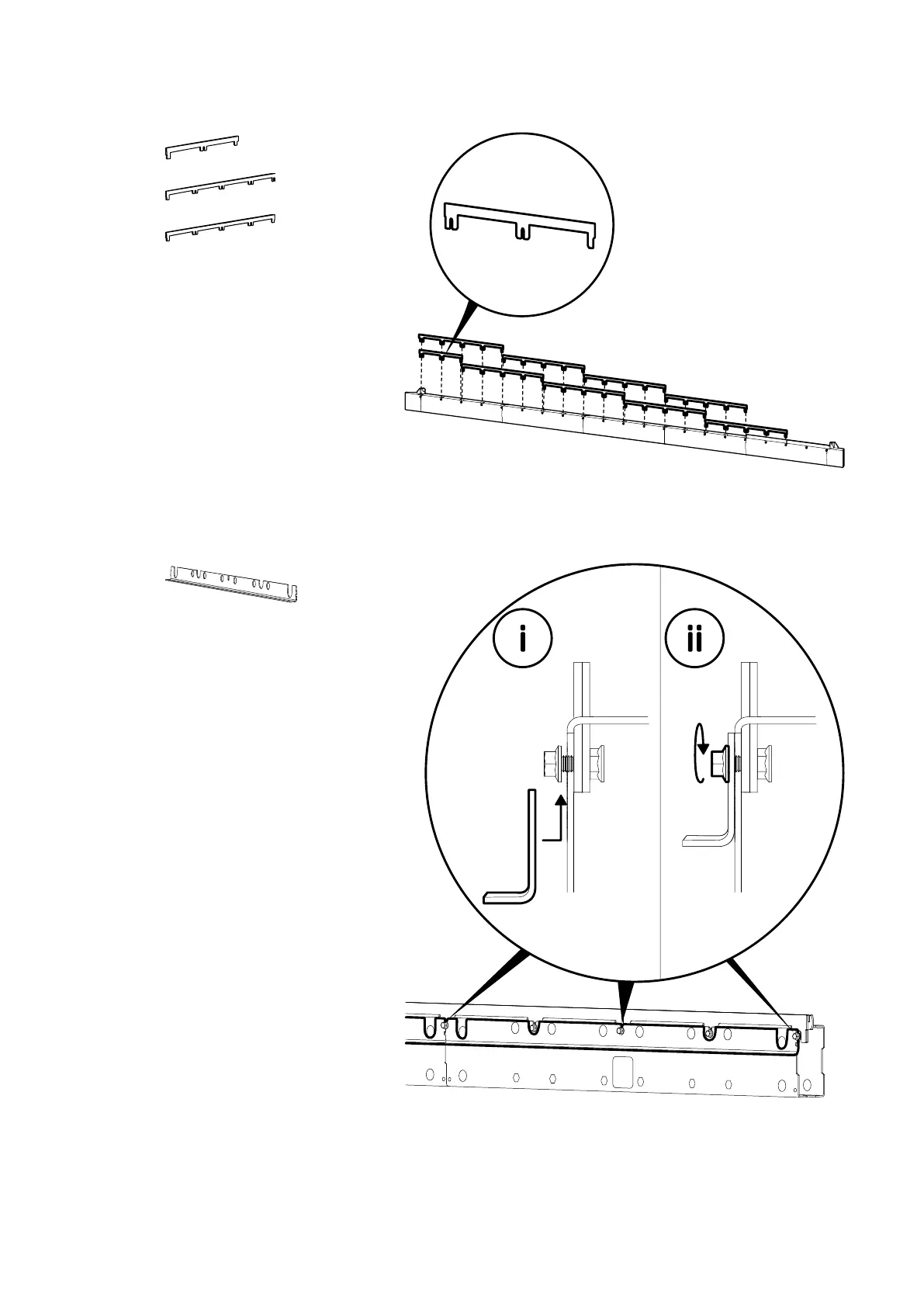

4. After the rails have been positioned, slide the guide bars in place along the rail pipe and tighten the bolt
with your ngers. Make sure the guidebar is pushed all the way up and aligned at the bottom.
5 x
5. Repeat the installation on the other side. See step 1-4 above.
