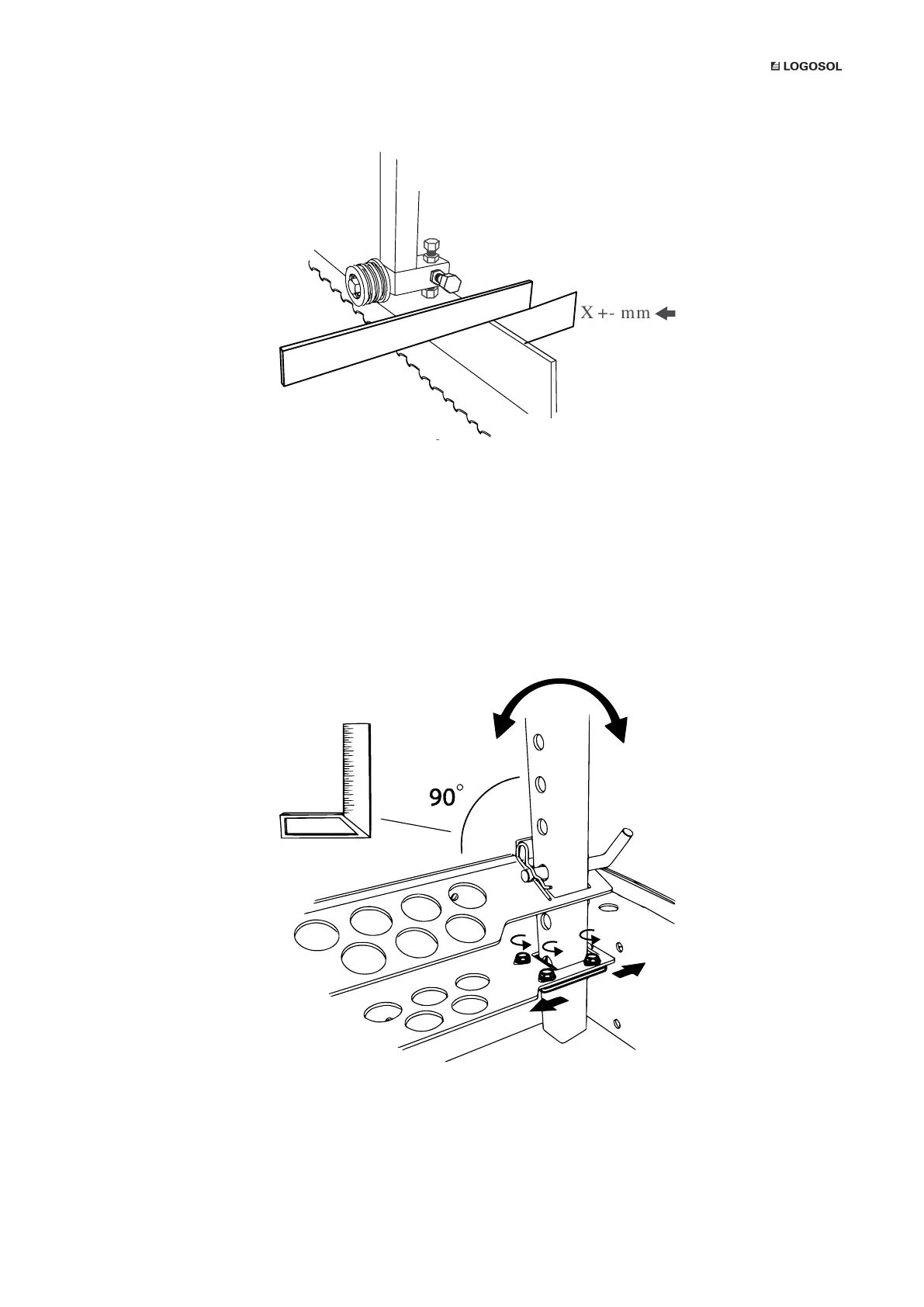

Measurement point 2
If the measurements differ, turn the adjusting bolts on the blade guide until the measurements are
the same at both measurment points. One method to facilitate adjusting, is to use the value from
measurement point 1, compare it with the value from measurement 2 and then, by raising or lowering
the blade guide, adjust half the difference at measurement point 2.
When the blade is parallel to the rails, repeat the adjustment steps on the other blade guide roller.
7. ADJUST THE LOG SUPPORT ANGLE
Adjust the log support angle by loosening the adjustment plate bolts. Set the angle of the log support so
that the ratio is 90 degrees to the log shelf.
