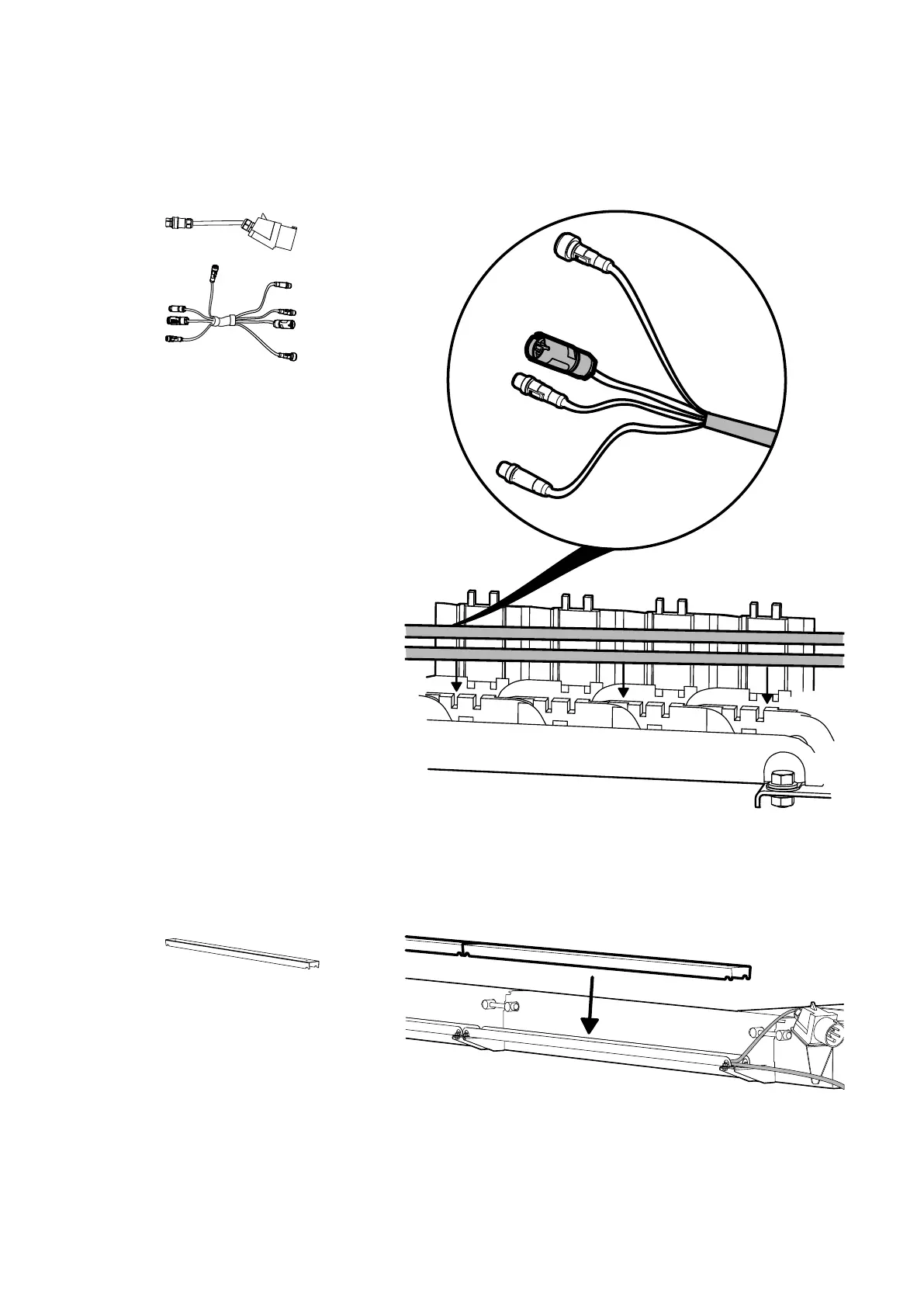

10. Insert the power cable and the signal cable into the cable holder. Align the cable ends together and make
sure that there is at least 60-70 cm of cable extending beyond the end of the holder. Make sure the cables
are straight and oriented correctly by placing the biggest, male coded connector beyond the cable holder
end, furthest away from the power inlet in step 8. Close the lids again.
1 x 6m
1 x 10m
11. Cover up the rest of the cables in the rail base using the protection covers.
2 x
USER MANUAL
39
