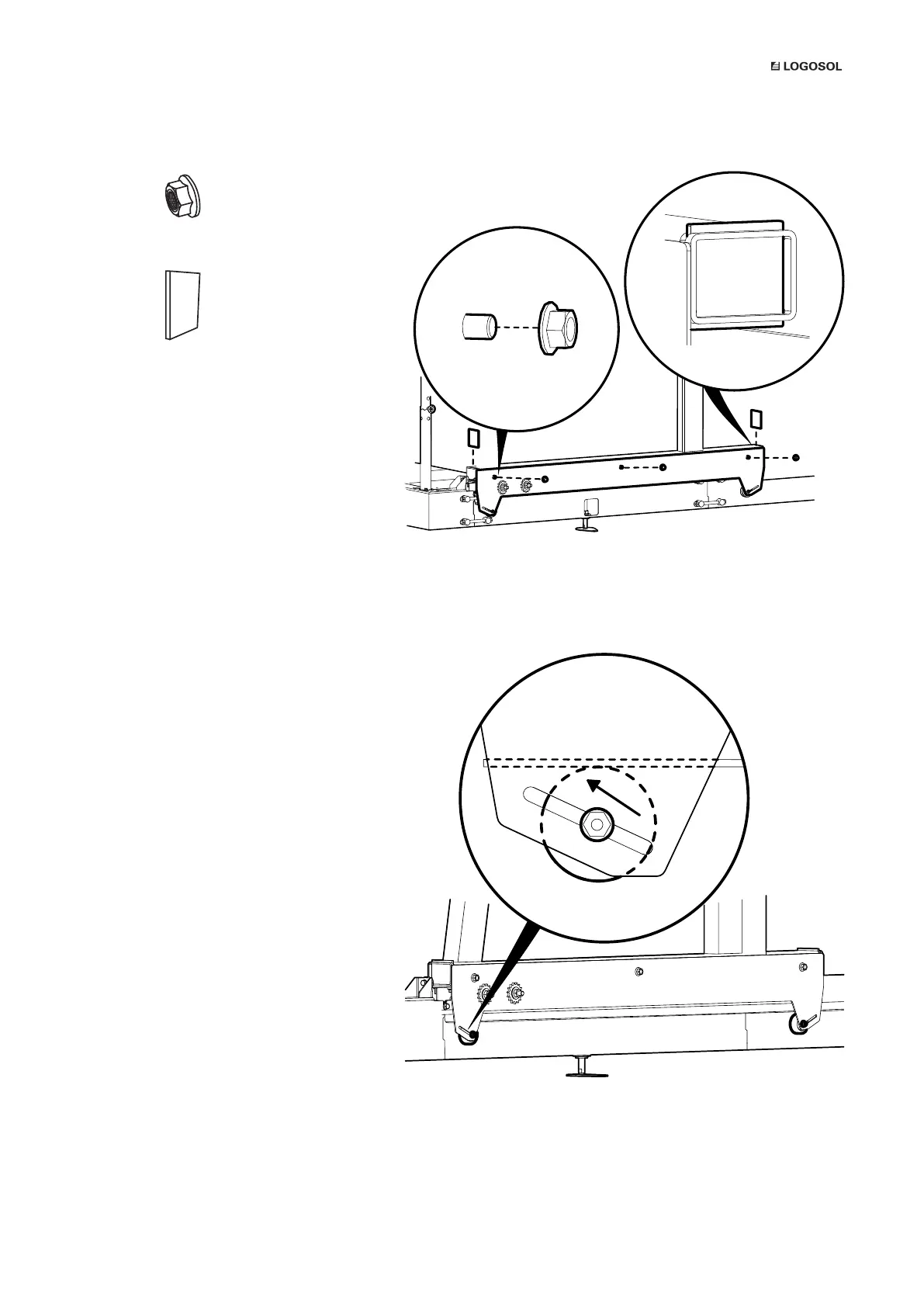

3. Fit the anti-tip plate on the bogie tube and use the existing nuts from step 1. Fit the rail cleaners by the
ends of the bogie tube.
3 x M10
2 x
4. Tighten the anti-tip wheels by pushing them upwards in the inclined groove. Move them upwards so that
they brace against the underside of the guide bar.
5. Repeat the installation and adjustment procedure seen in step 1-4 for the other side of the machine. Please
note that the process will be mirrored.
