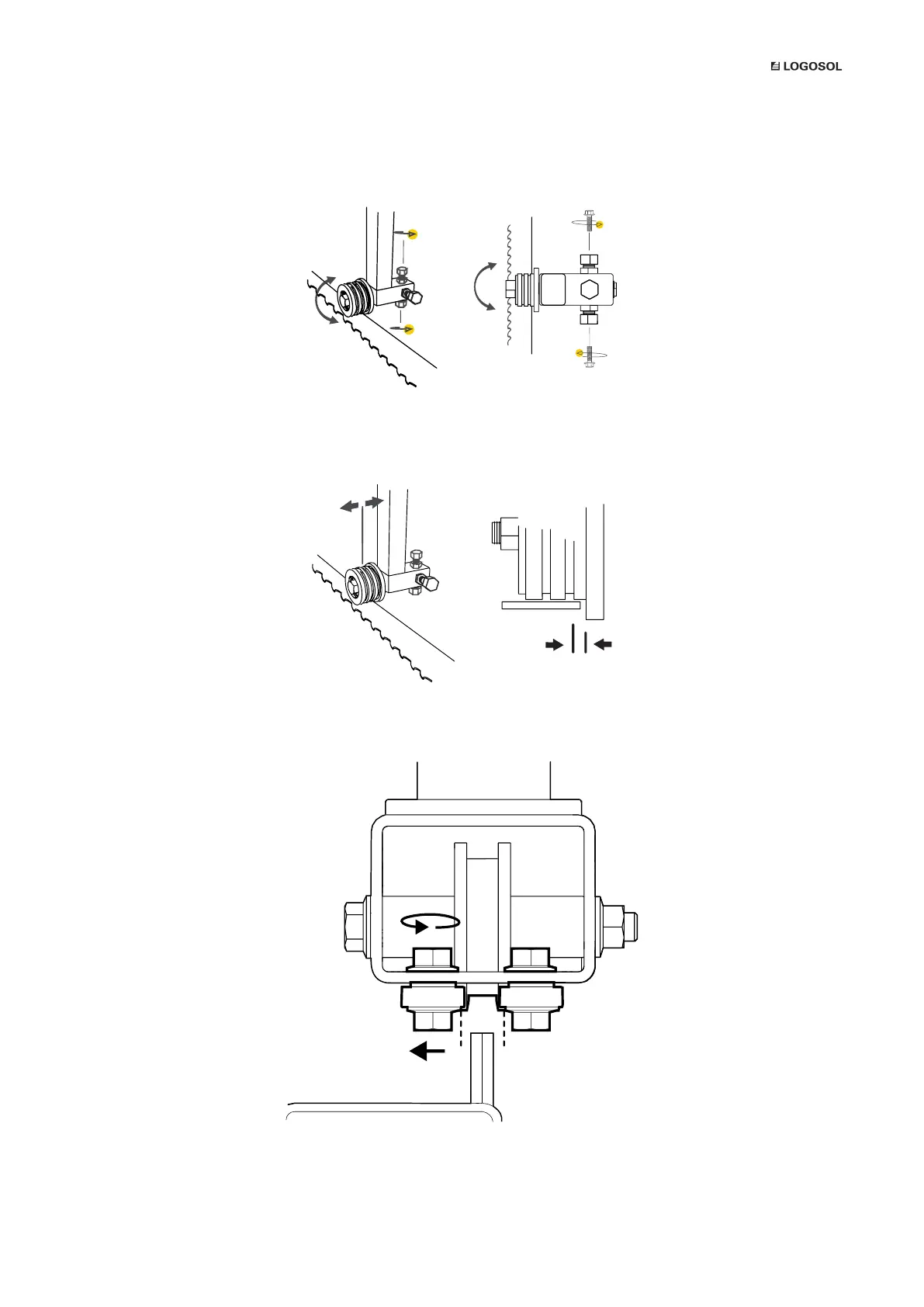

The blade guides can adjust the angle of the blade, measured in the direction of the cut, by adjusting the top
and bottom adjusting bolts. The blade guides must be adjusted so that they are parallel to the back of the
blade. This is done by adjusting the outer and inner adjusting bolts. It is crucial that the blade guides run parallel
to the blade. Be careful to adjust this correctly.
The blade guide can be adjusted inwards and outwards by pulling or pushing its shaft after the adjusting bolts
have been loosened. The back of the blade should be approx. 3-5 mm from the rear edge of the blade guide
roller.
CONTROL BEARINGS
Adjust the control bearing by loosening the nuts and moving them outwards.
