PAGE 12 STOVE INSTALLATION (CONT.)

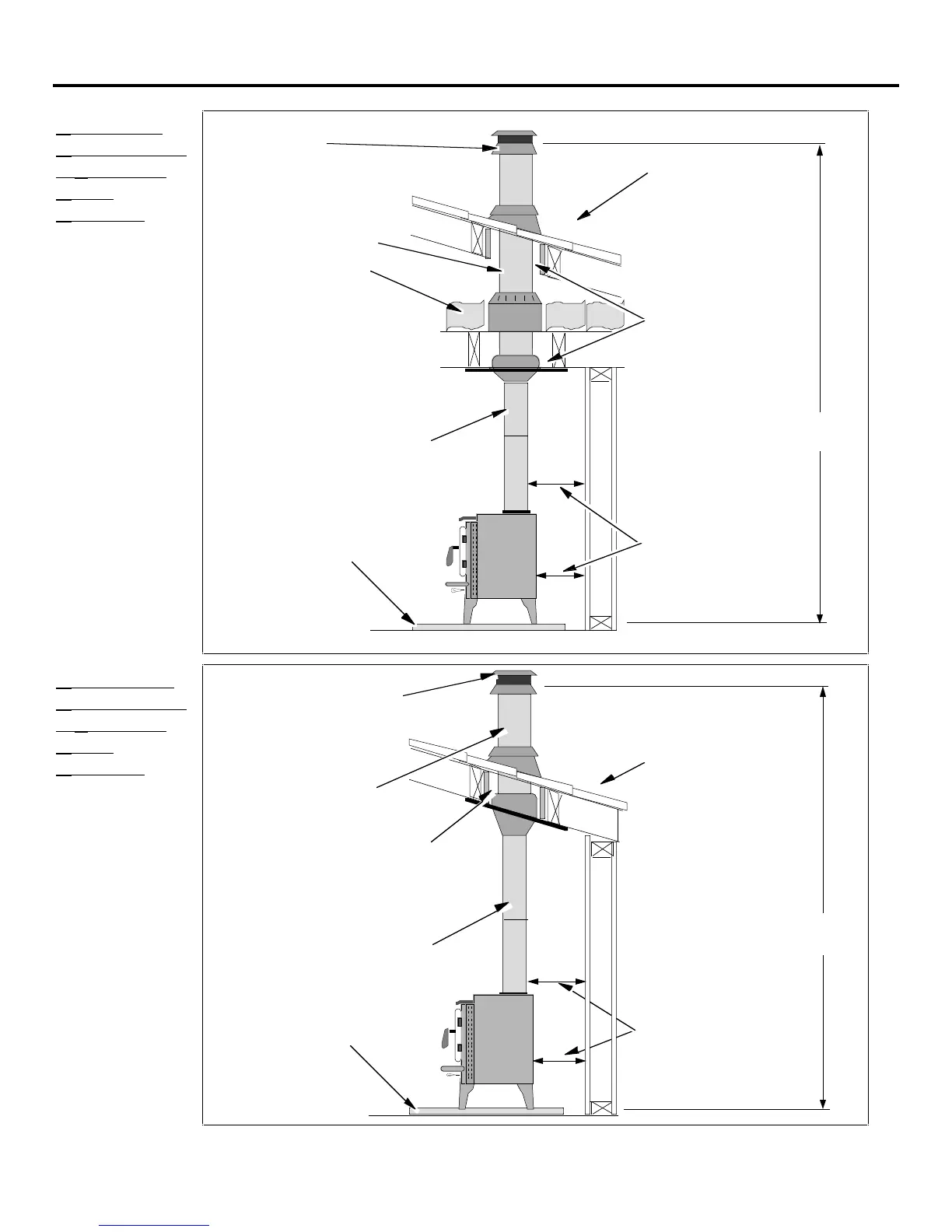

STANDARD
CEILING WITH
A FACTORY
BUILT
CHIMNEY
Chimney Cap
(See the section "Chimney
Termination Requirements"
for more details)
Chimney Sections
M
inimum Air Space to
C
ombustibles (See
C
himney Manufacturer's
I
nstructions - usually 2")
Chimney Connector Sections
F
ollow the chimney
m
anufacturer's instructions
a
nd clearances for roof
p
enetrations. A storm collar
a
nd flashing are required
(
some require a radiation
s
hield).
}
}
Minimum 15'
Maximum 33'
Stove Clearances
(See the section "Stove
Placement Requirements"
for more details)
Floor Protection
(See the section "Floor
Protection Requirements"
for more details)
Follow the chimney
manufacturer's instructions
and clearances for floor
penetrations. A ceiling
support is required, an attic
insulation shield is required
where insulation is present.
Insulation
CATHEDRAL
CEILING WITH
A FACTORY
BUILT
CHIMNEY
Chimney Cap
(See the section "Chimney
Termination Requirements"
for more details)
Chimney Sections
Minimum Air Space to
Combustibles (See
Chimney Manufacturer's
Instructions - usually 2")
Chimney Connector Sections
Follow the chimney
manufacturer's instructions
and clearances for roof
penetrations. A storm
collar, flashing, and
cathedral-style chimney
support are required (some
require a radiation shield).
}
Minimum 15'
Maximum 33'
Stove Clearances
(See the section "Stove
Placement Requirements"
for more details)
Floor Protection
(See the section "Floor
Protection Requirements"
for more details)
