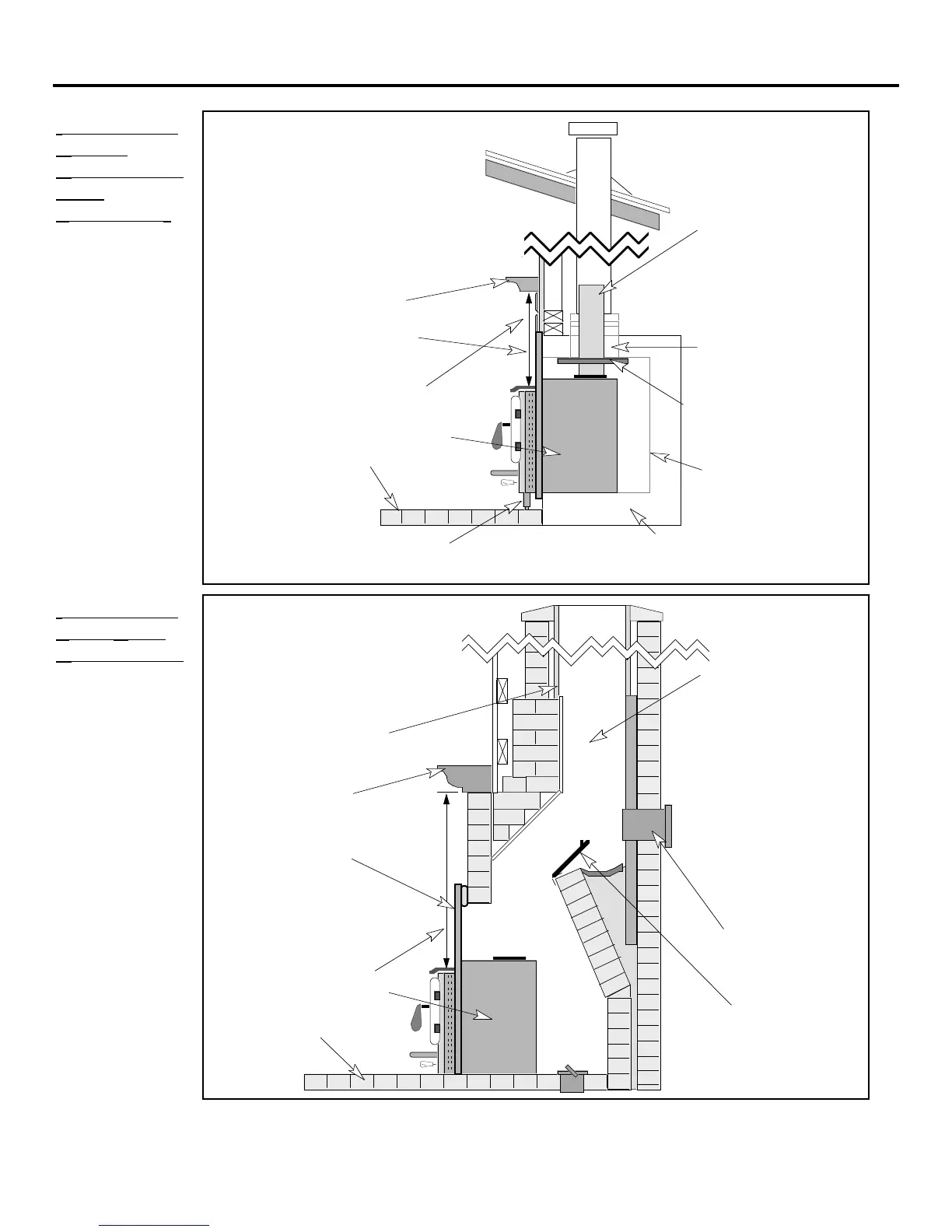

PAGE 20 INSERT INSTALLATION (CONT.)
INSERT WITH
DIRECT
CONNECTION
(Z.C.
FIREPLACE)
NOTE:
Direct
connections
require
installation of
an airtight
block-off plate
or damper
adapter (see
"Block-off
Plate
Installation"
on page 18).
Block-off plate or
damper adapter
Stainless steel
chimney connector
must Extend 1' past
the block-off plate
or to the flue liner
Combustible Mantle
See the section
"Insert Placement
Requirements" for
minimum clearances
and hearth required.
Surround Panels
NOTE: This installation may be
used with a masonry or zero
clearance fireplace. This
illustration depicts a zero
clearance insert, all requirements
in the section "Zero Clearance
Fireplace Requirements" must be
fulfilled prior to installation.
Z.C. (Metal) firebox
Optional
Telescoping Legs
No modification to the firebox
of the z.c. fireplace is allowed.
Damper must
be removed
INSERT WITH
FACE SEAL
CONNECTION
NOTE:
Face seal
connections
require
installation of
the surround
panels and
insulation (see
the "Surround
Panel
Installation"
on pages 40
and 41).
Remove damper
or wire it open
Airtight Insulated
Clean-Out
Combustible Mantle
NOTE: This installation may be
used with a masonry fireplace
only. The requirements in the
section "Masonry Fireplace
Requirements" must be fulfilled
prior to installation.
Flue Liner
See the section "Insert
Placement Requirements"
for minimum clearances
and hearth required.
Surround Panels with
insulation (see "Surround
Panels" installation
instructions in the back of
the manual)
NOTE: It is
recommended your
chimney have a
minimum 28 and a
maximum of 144
square inch
cross-sectional area
to use a face seal
connection, otherwise
your chimney maynot
have sufficient draw
for the fireplace insert
to operate correctly.
