PAGE 32 MAINTAINING YOUR APPLIANCE (CONTINUED)

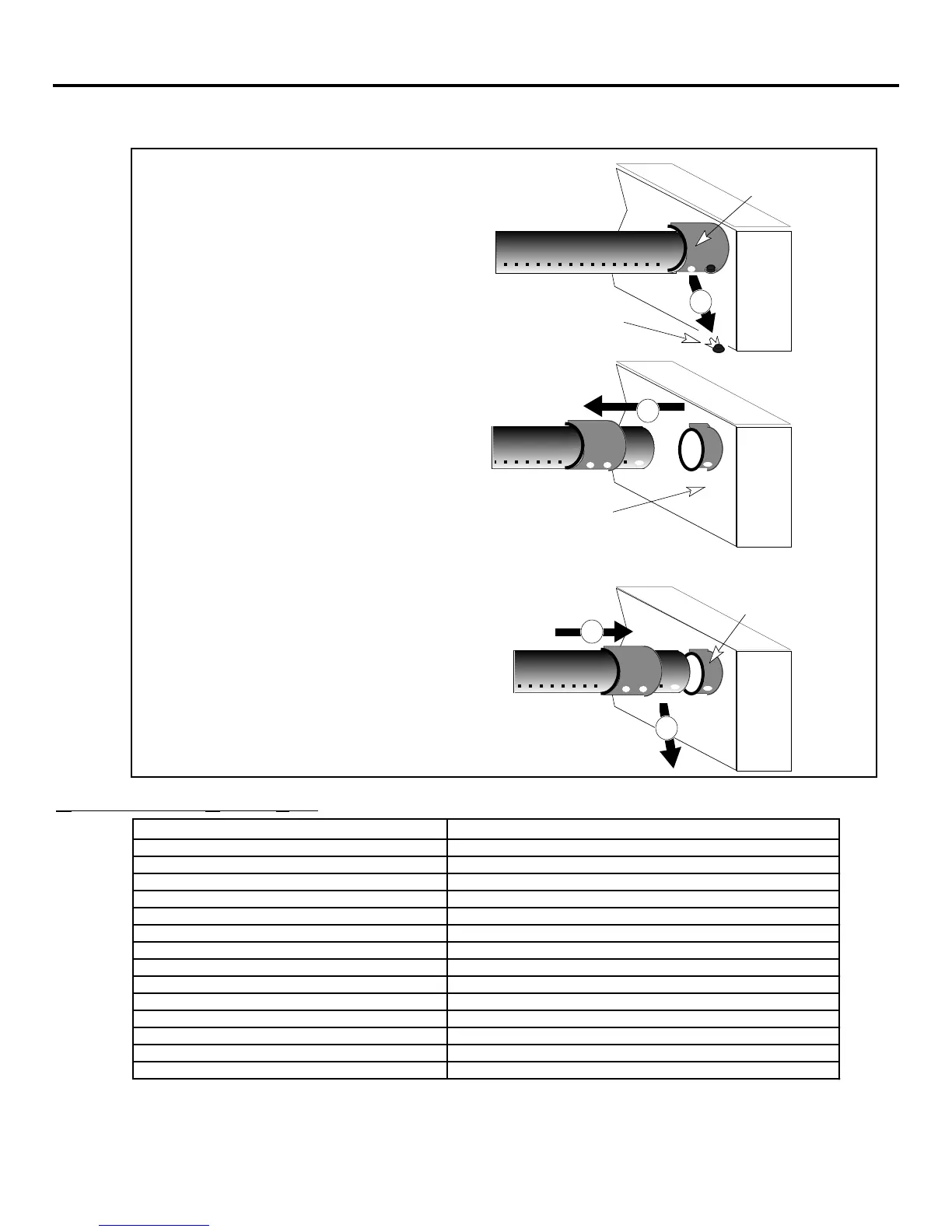

Secondary Air Tube Replacement Instructions
Secondary Air
Tube Sleeve
Pry out both pins on the secondary
air tube sleeve (use a screwdriver).
1.
Pin
Slide the secondary air
tube sleeve to the left.
2.
Side Air Channel
(Welded to side of Firebox)
NOTE: When replacing, make sure the
two holes on the secondary air tube
sleeve line up with the hole on the
secondary air tube and the hole on the
air tube stub welded to the side air
channel.
Slide the secondary air tube to the right
until it disengages from the left side.
3.
Air Tube Stub
(welded to the
side air channel)
4.
REMOVING THE
SECONDARY AIR TUBES
Follow the directions to the right.
To remove the front tube, the
baffle firebricks and front baffle
support must be removed first.
REPLACEMENT PARTS LIST
PART PART DESCRIPTION
Door Gasket Black 7/8" dia. Fiberglass Rope 54" Long
Glass Gasket Black 3/4" x 1/8" Fiberglass Channel Tape 47" Long
Door Glass 5 mm Neoceram, 9" Tall @ Center, 15 1/2" Wide
Firebrick 1 1/4" x 4 1/2" x 9" - Some firebrick will require cutting
Secondary Air Tube 16 5/8" long with holes every 3/4"
Front Baffle Support 17 5/8" long, 1 1/2" L bar + 1" Strip
Handle for Door Brass spring
Door Handle Steel shaft with threaded end
Door Cam Cast Brass
Air Control Handle Brass spring
Owner's Manual This Document
Cast Glass Retainer Fits within door with ten screws
Air Control Slider Steel plate with air control rod
Air Control Floating Plate with Springs 4 springs and the floating plate used to guide air control slider
