PAGE 36 OPTIONAL EQUIPMENT

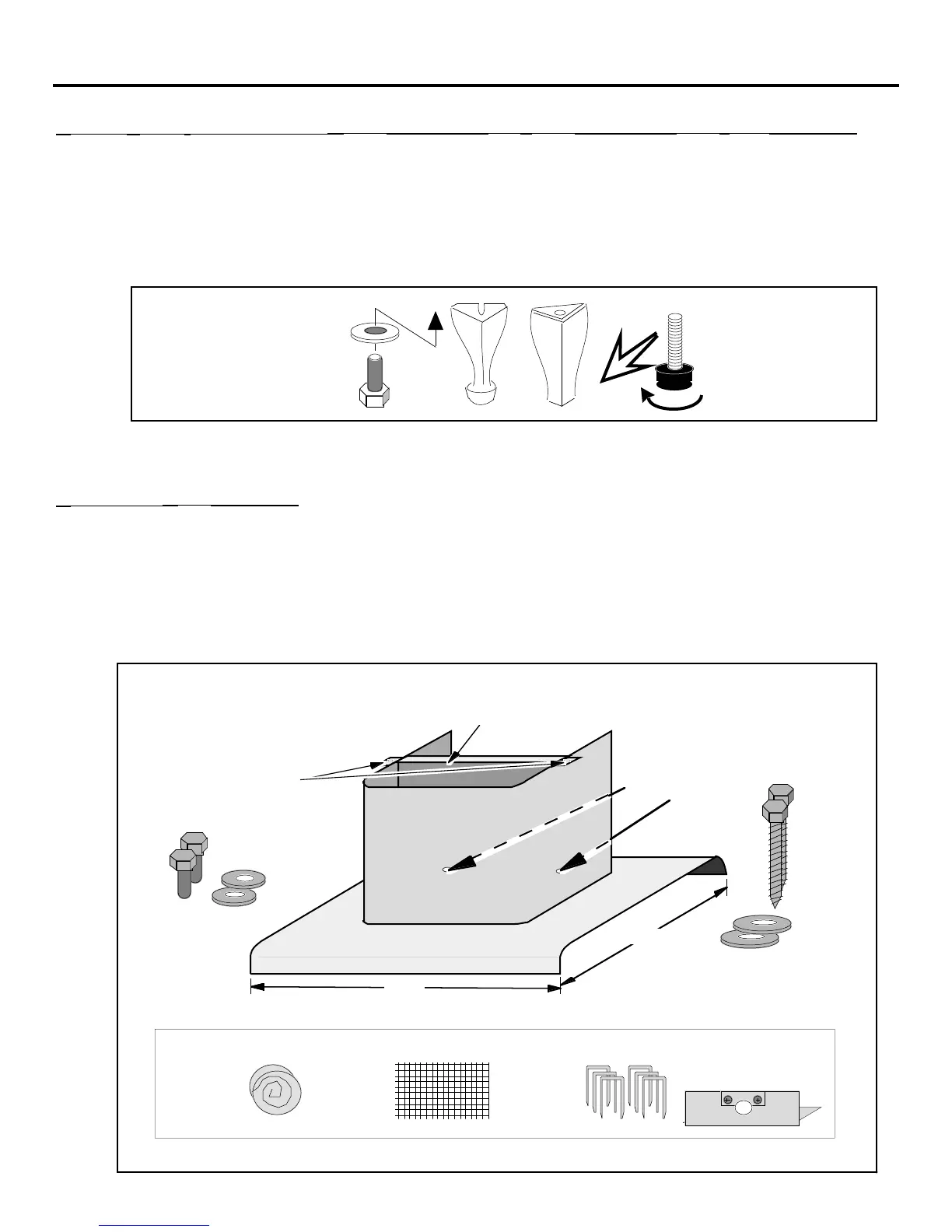

STOVE LEGS INSTALLATION (BRASS # 99200500, CAST BLACK # 99200800, BLACK STEEL # 99200100)
There are three different stove legs available for your wood stove: cast brass; cast black; and, black steel.
The instructions for installing the legs are the same for each type of leg.
Raise the stove by inserting some pieces of lumber in the middle of the stove to a height of about 8".
Line up the hole in the top of the leg with the threaded bolt hole in each corner of the stove bottom.
Using a 9/16" open end or socket wrench, fasten the leg to the stove with the supplied attachment bolts
and washers, making sure the legs are flush with the corners of the stove. Unscrew the leveling bolts
enough so the stove will rest on the upper tips, not the metal portion of the legs. Lower the stove down.
Attach each leg to the stove
by inserting a bolt and washer
through the hole or slot in the
leg and into the threaded hole
on the stove. Use a 9/16"
socket wrench to tighten.
Leveling bolts are
attached to the leg. Do
not have any weight on
the bolts while
adjusting them Ð the
rubber tips may tear.
To level the stove, lift the stove up and unscrew each leveling bolt the appropriate amount. The rubber
tips of the leveling bolts will tear if they are adjusted while weight is applied to them.
PEDESTAL (PART # 99200106)
NOTE: If installing outside air with the pedestal, first follow the directions titled "Using
Outside Air with the Pedestal" on the following page.
Place the pedestal in place and lift the stove on top of it. Line up the threaded bolt holes in the bottom of
the stove with the two holes in the tabs that stick out of the side of the pedestal (see the illustration
below). Using a 9/16" socket wrench, fasten the pedestal to the stove with the supplied bolts and
washers. If installing in a mobile home, the pedestal will need to be attached to the floor. Insert the two
included lag bolts through the pedestal base and screw them into the floor with a 1/2" socket wrench.
When attached, the faceplate of
the stove is flush with the front of
the front edge of the pedestal.
23 5/8Ó
Optional Air
Intake Port
Attachment Bolts and
Washers - use a 9/16"
socket wrench to
attach the pedestal to
the stove.
If installing in a mobile home,
insert the lag bolts through
these holes and screw them
into the floor with a 1/2" socket
wrench.
OUTSIDE AIR EQUIPMENT
Staples are
used to attach
the screen to
the floor.
Screen is used
to prevent
rodents from
entering.
nsulation is
sed to seal
he side edges
f the pedestal
Cover plate is used to
seal off room air.
16 1/4Ó
