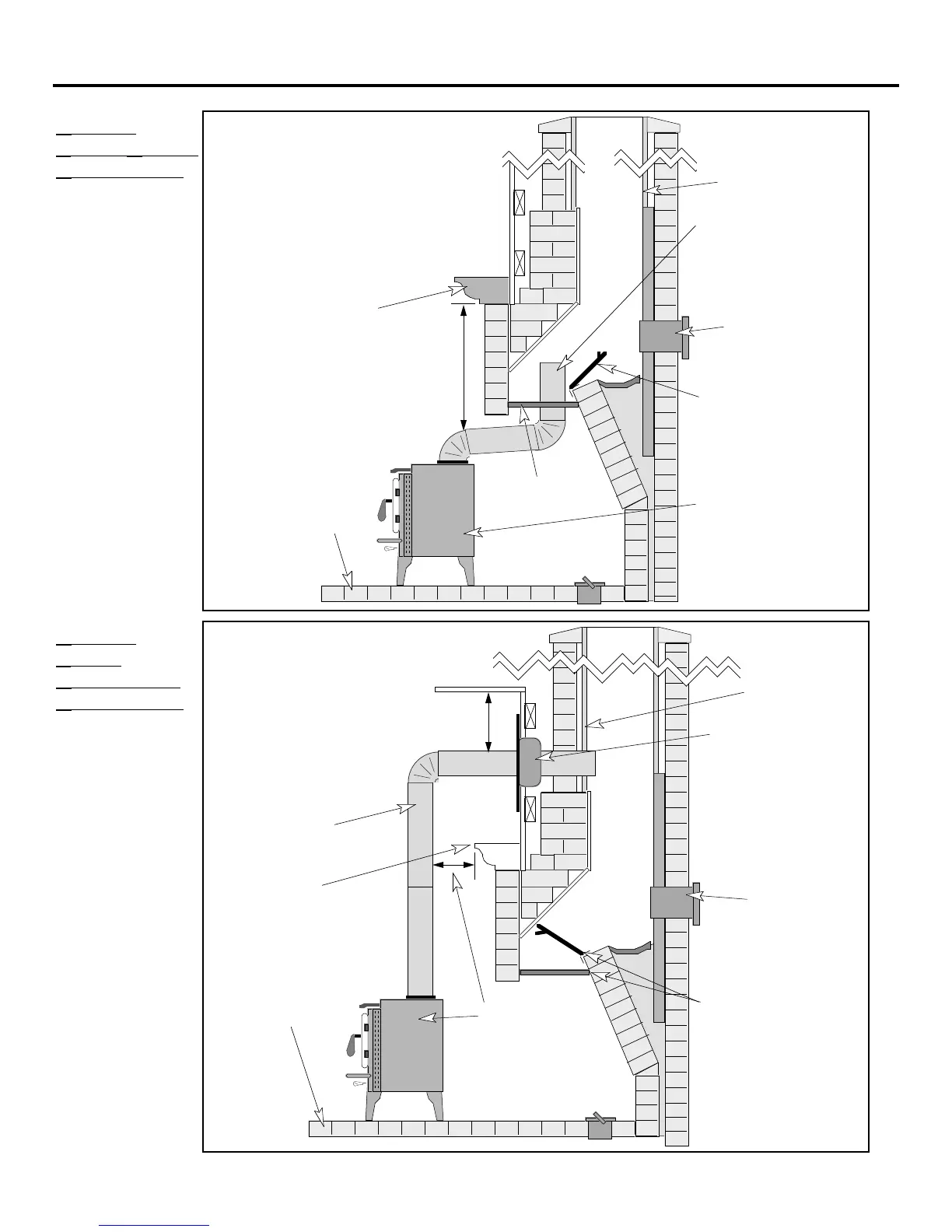

PAGE 14 STOVE INSTALLATION (CONT.)
HEARTH
STOVE DIRECT
CONNECTION
NOTE:
Direct
connections
require
installation of
an airtight
block-off plate
or damper
adapter (see
the section
"Block-off
Plate
Installation"
on page 18).
Block-off plate or
damper adapter
Remove
damper
or wire it
open
Airtight
Insulated
Clean-Out
Stainless steel
chimney connector
must Extend 1' past
the block-off plate
or to the flue liner
Min. 18"
Combustible Mantle
NOTE: This installation may be used
with a masonry or zero clearance
(metal) fireplace. The requirements in
the section "Masonry Fireplace
Requirements" or "Zero Clearance
(metal) Fireplace Requirements" must
be fulfilled prior to installation.
Flue Liner
Floor Protection
(See the section
"Floor Protection
Requirements" for
more details)
See the section
"Stove Placement
Requirements" for
minimum clearances
required.
HEARTH
STOVE
HORIZONTAL
CONNECTION
NOTE:
This type of
installation
requires a wall
radiation
shield
(thimble).
Either close
off and seal
the damper,
install a block-
off plate or
install a
damper
adapter (see
the section
"Block-off
Plate
Installation"
on page 18).
Airtight
Insulated
Clean-Out
Combustible Mantle
NOTE: This installation
may be used with a
masonry fireplace only.
The requirements in the
section "Masonry
Fireplace Requirements"
must be fulfilled prior to
installation.
Flue Liner
Floor Protection
(See the section
"Floor Protection
Requirements" for
more details)
See the section
"Stove Placement
Requirements" for
minimum clearances
required.
Min. 18"
clearance
to ceiling
Either close off and
seal the damper,
install a block-off
plate, or install a
damper adapter.
Follow the chimney
manufacturer's
instructions and
clearances for wall
penetrations. A wall
radiation shield
(thimble) is required.
Chimney
connector
sections
