FLUE ADAPTER INSTALLATION (PART NUMBER 98900117)
The flue adapter is designed to make flue attachment easier for certain insert installations by moving the
position of the flue exit.
1. Place the flue adapter over the flue exit on the insert. Mark the location of the four mounting
holes on the top of the insert. Remove the flue adapter and drill four 5/32" holes into the top
where the marks were placed (see the illustration below).
2. Place the flue adapter in place. Use a 5/16" nutdriver to attach the four screws that secure it to
the insert.

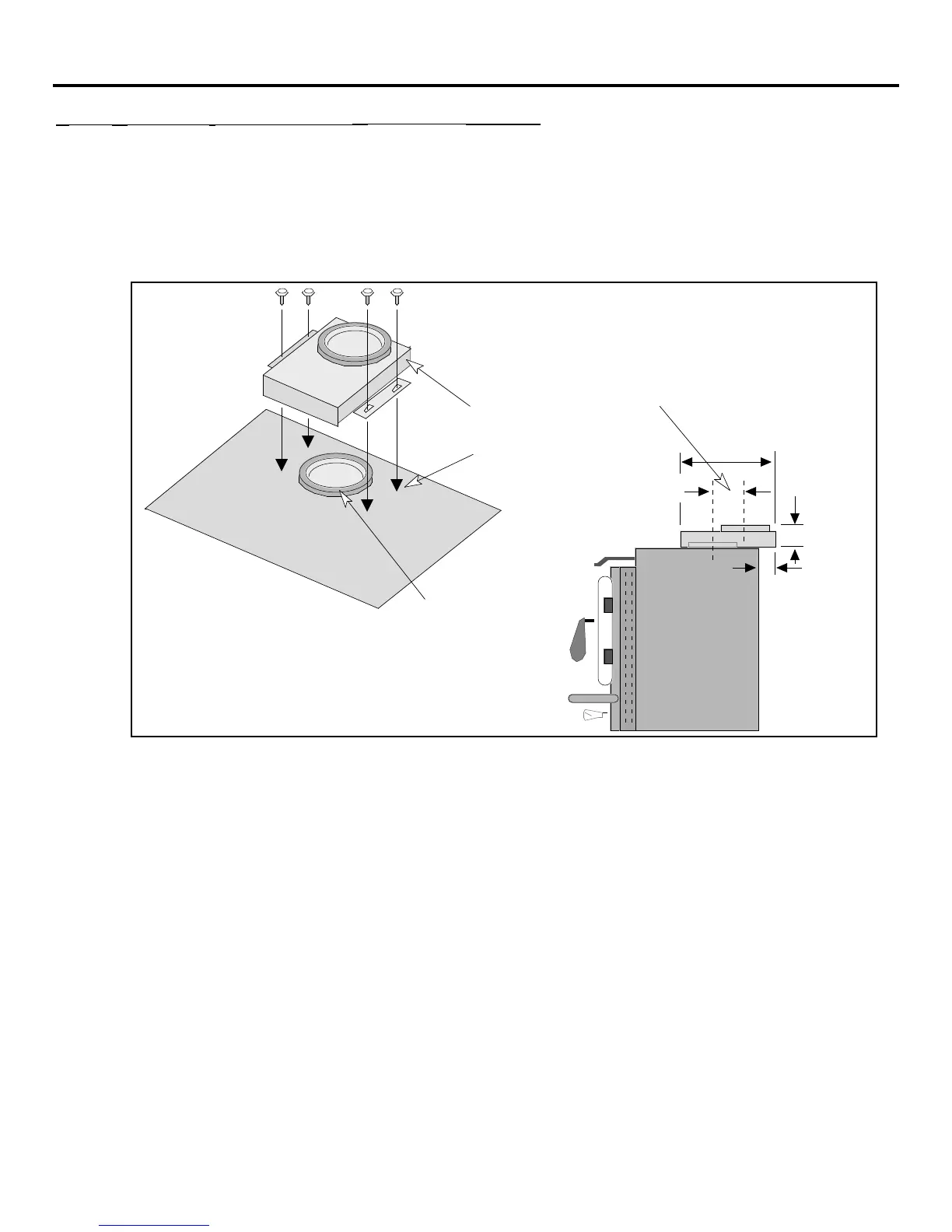

The flue adapter offsets the
position of the flue 3 1/6"
towards the rear.
3 1/16"
1 1/16"
10 1/2"
3 1/4"
Attach the adapter
to the insert with the
four screws included
with the kit (use a
5/16" nutdriver).
Drill 5/32"
diameter holes
for the screws.
Flue Exit
Flue Adapter
Top of Insert
