MAINTAINING YOUR APPLIANCE (CONTINUED) PAGE 31

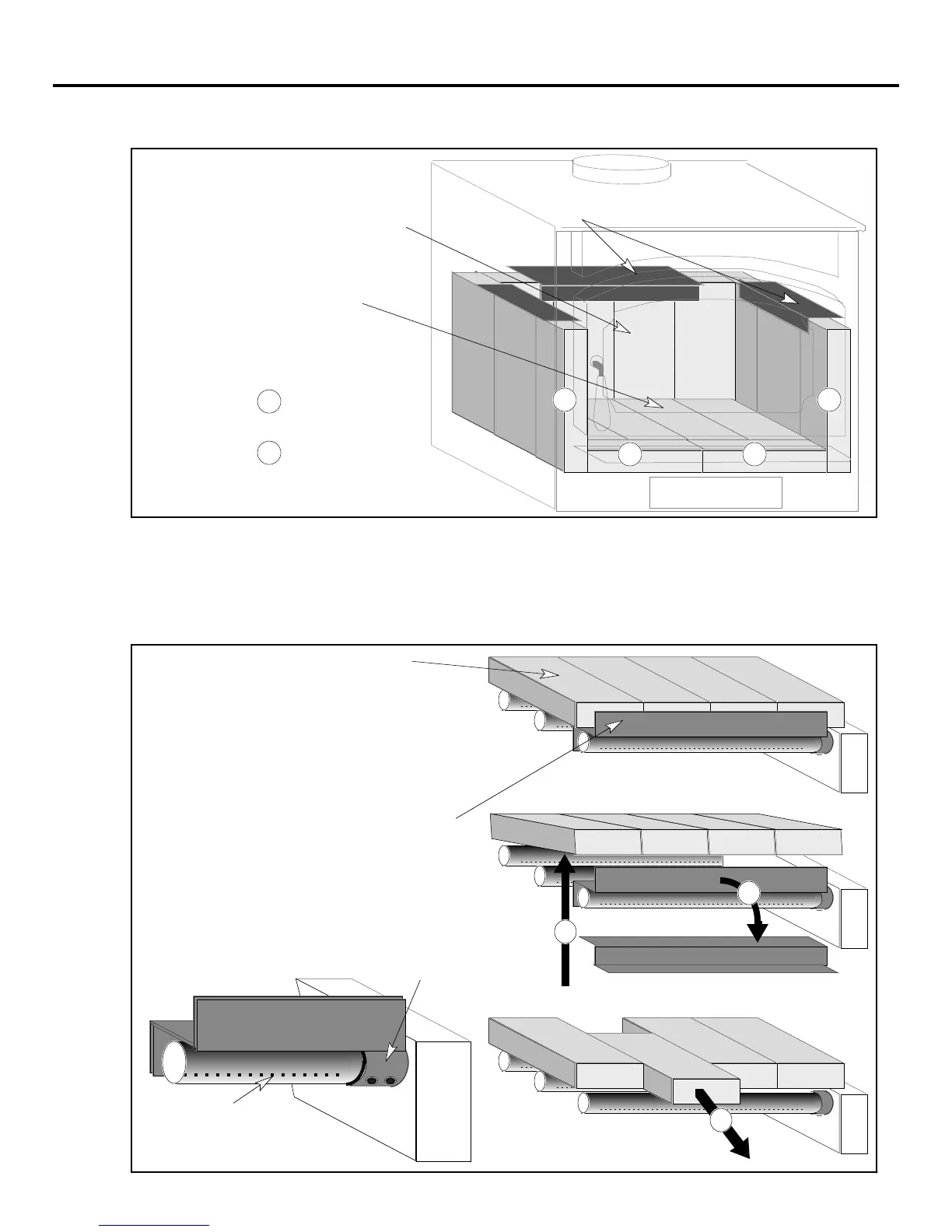

Firebrick Removal and Replacement Instructions (Continued)
WALL FIREBRICKS
First remove the firebricks on the floor in
front of the firebrick needing replacement.
Then pivot it out from the bottom to clear
the clip that holds it in place.
FLOOR FIREBRICKS
Remove the firebricks in front of the
firebrick needing replacement.
FIREBRICK SIZES -
All firebrick is 1 1/4" x 4 1/2" x 9"
except those labeled.
Firebrick labeled are
1 1/4" x 2 1/2" x 9".
Firebrick labeled are
1 1/4" x 1 3/8" x 9".
A
B
CLIPS -
Hold the wall firebrick in place.
A
B B
A
Baffle Removal and Replacement Instructions
All of the baffle components are removable to facilitate easy cleaning and repairs. Make sure the
appliance is cool before removing any of the components. The directions below detail the procedure for
removing the baffle firebricks and front baffle support. See the instructions on the following page for
removing the secondary air tubes.
3.
REMOVING BAFFLE FIREBRICKS
AND FRONT BAFFLE SUPPORT
Lift up on the front portion of all four firebricks. Then
rotate the front baffle support forward until it can be
removed. Then slide the baffle firebricks forward
and out the door opening. The center bricks must be
removed prior to removing the outer bricks.
NOTE:
When replacing the front baffle support,
make sure it rests squarely on the
secondary air tube sleeves on both ends.
1.
2.
Front Baffle Support
Secondary Air Tube
(removal instructions are
on the following page)
Secondary Air
Tube Sleeve
