12 Before commissioning
12.1 Fasten transportation belt
16615
6 Transportation belt
15 Plastic slides
16 Velcro fastener

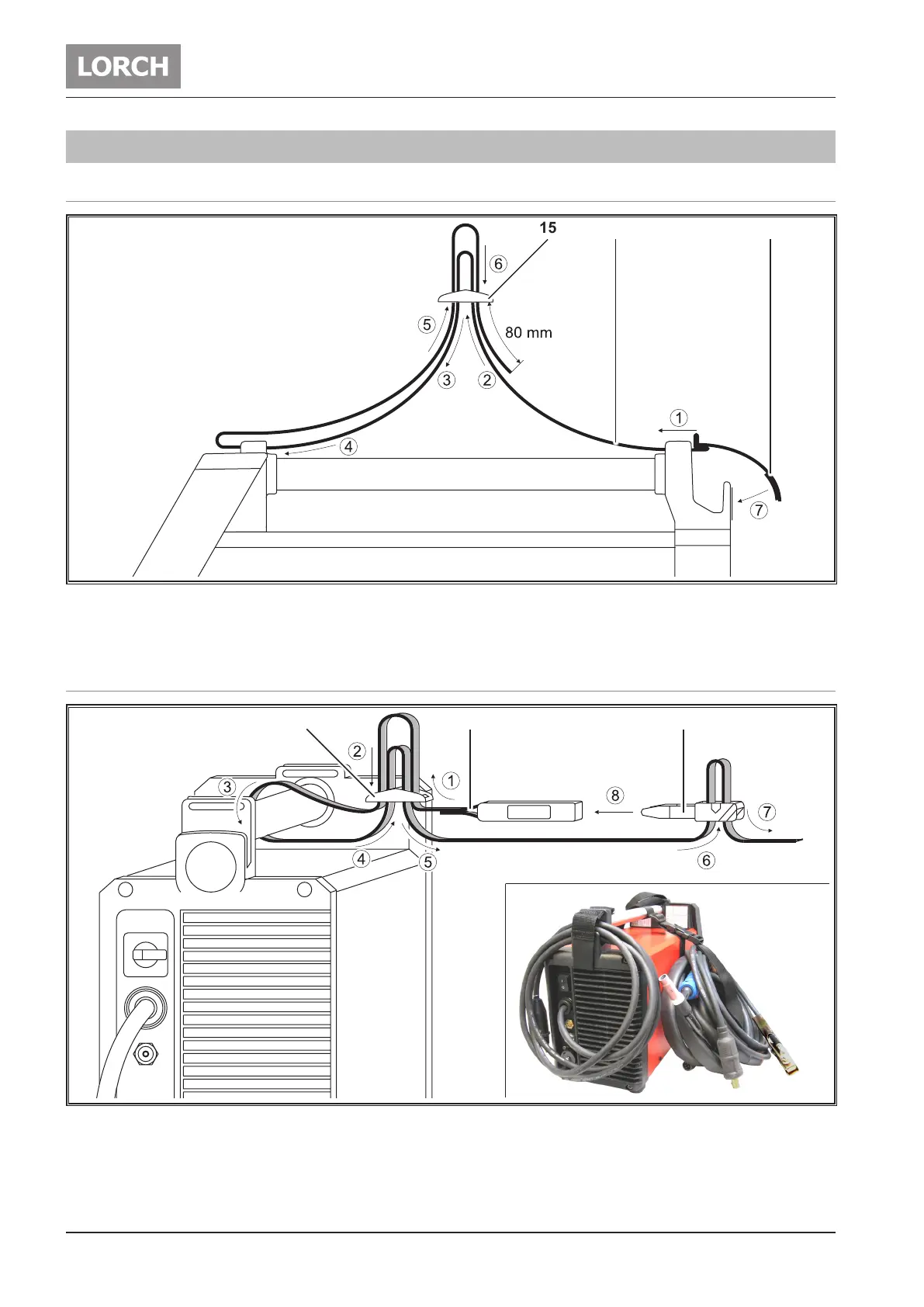

 Thread the transportation belt into the welding machine
and plastic slides. See sequence of the numbering in the
picture.
12.2 Fastening accessories belt
14 1715
14 Accessories belt with fastener
15 Plastic slides
17 Belt fastener
 Thread the accessories belt into the handle and plastic
slides. See sequence of the numbering in the picture.
 Plug the belt fasteners together.
