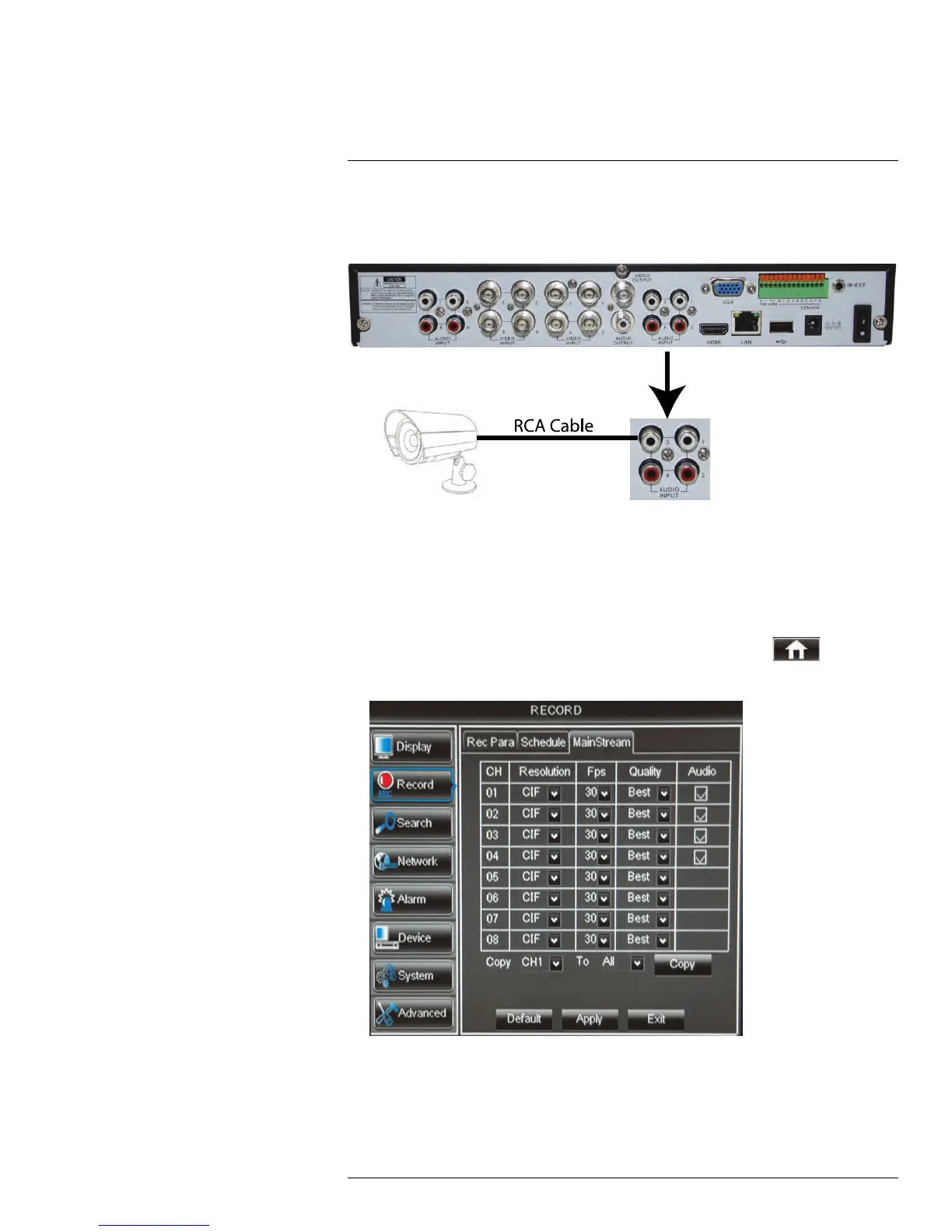

Recording Audio (LH150 Series)
23
The system can also record audio for up to 4 channels (16-channel models) or 8 channels
(8-channel model). You must have audio-capable cameras (not included) or self-powered
microphones (not included) in order to record audio on the system.
To enable audio recording:
1. Connect the BNC video cable from the camera to one of the BNC Video Input ports
on the rear panel of the DVR between 1 and 4 (16-channel models) or any Video Input
port (8-channel). For example, connect the camera to Video INPUT port 1.
2. Connect the RCA audio cable from the camera to the corresponding Audio Input. Fol-
lowing the example in step 1, you would connect the cable to Audio Input port 1.
3. Right-click to open the Menu Bar and click the Main Menu button (
).
4. Click Record and select the MainStream tab.
5. Ensure the Audio checkbox is checked next to the channel the audio-enabled camera
is connected to.
6. Click Apply to save your changes.
#LX400012; r. 2.0/12066/12066; en-US
