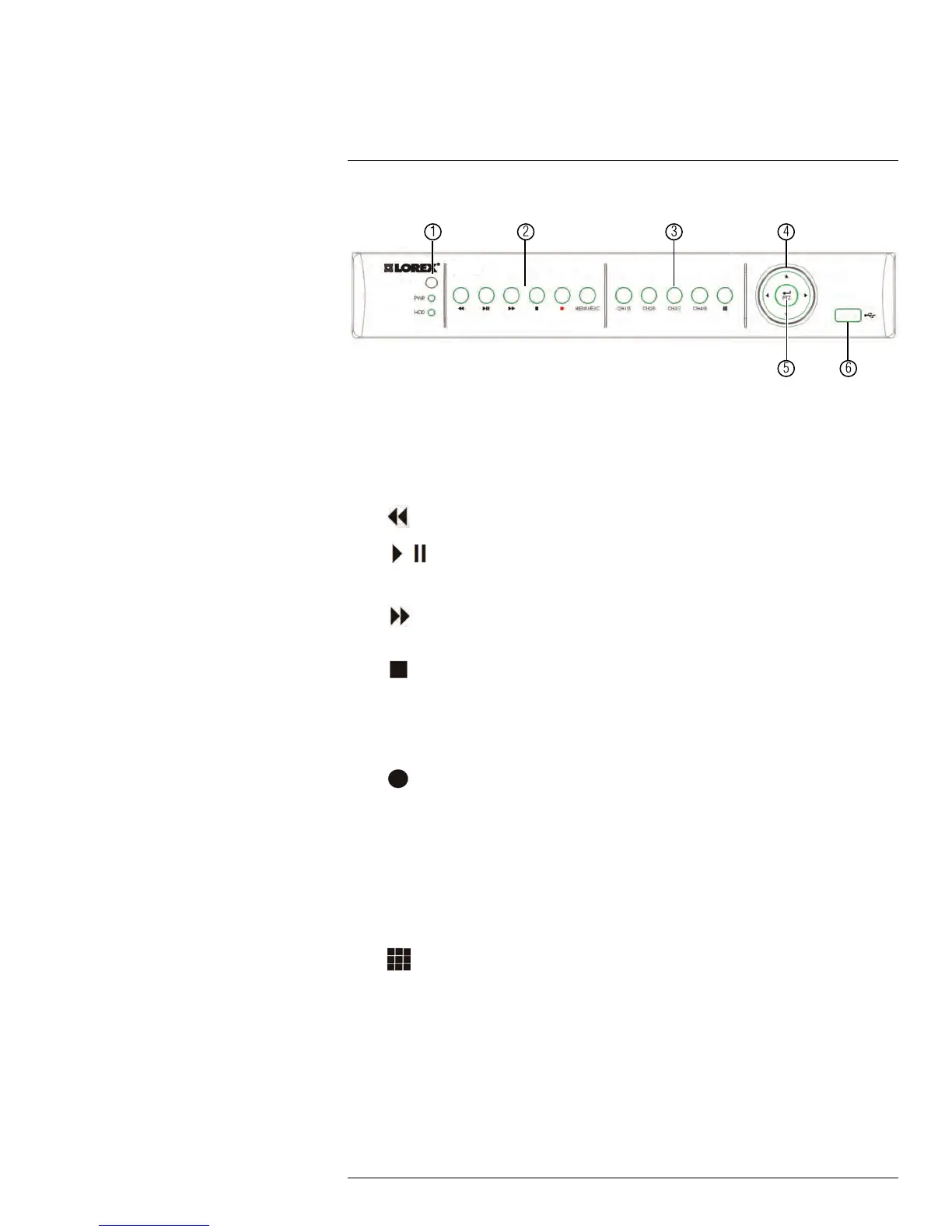

Front Panel (LH150 Series)
4
8–Channel
1. IR Sensor: IR receiver for the remote control.
LED Indicators:
• PWR: Power LED.
• HDD: Hard disk activity LED.
2. Menu & playback controls:
•
: In Playback Mode, press to rewind. Press repeatedly to increase rewind speed.
•
: In Playback Mode, press to play/pause video.
• In Live Viewing Mode, press to open Search Menu to select playback time.
•
: In Playback Mode, press to fast forward. Press repeatedly to increase fast for-
ward speed.
•
: In Playback Mode, press to stop video playback.
• In Live Viewing Mode, press to stop DVR recording. Password required; does
not override scheduled recording.
• Press and hold for 15 seconds to reset the DVR to the default resolution. DVR
will reboot.
•
: Press to stop/resume recording. When the channel displays a red box with the
letter "C", the channel is recording.
• MENU/ESC: Opens the system menu. In menus, press to go back/exit menus.
3. Channel controls for full screen view:
• CH1/5: Press to switch between channel 1 or channel 5 in full screen.
• CH2/6: Press to switch between channel 2 or channel 6 in full screen.
• CH3/7: Press to switch between channel 3 or channel 7 in full screen.
• CH4/8: Press to switch between channel 4 or channel 8 in full screen.
•
: In Live Viewing Mode, press repeatedly to switch between split-screen viewing
modes.
