Front Panel (LH150 Series)
4
4. Navigation buttons:
•
: Press to move cursor up.
•
: Press to move cursor down.
•
: Press to move cursor left.
•
: Press to move cursor right.
5. PTZ/
:
• Within system menus: Press to confirm a selection.
• In Viewing mode, press to open the System Information window.
• In Viewing mode, press and hold for 6 seconds to open the PTZ menu.
6. USB port: Connect a USB mouse (included) or USB flash drive (not included) for data
backup or firmware updates.

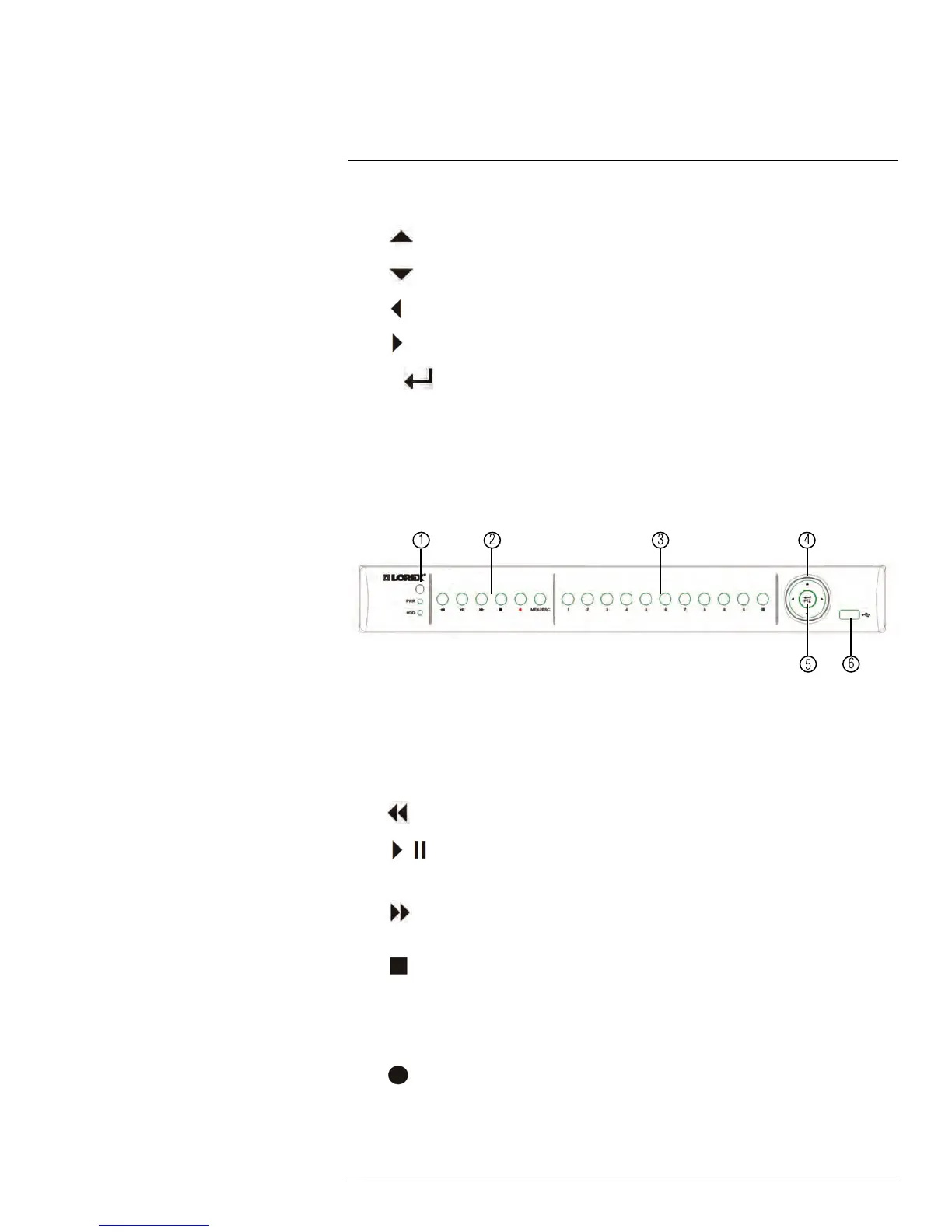

16–Channel
1. IR Sensor: IR receiver for the remote control.
LED Indicators:
• PWR: Power LED.
• HDD: Hard disk activity LED.
2. Menu & playback controls:
•
: In Playback Mode, press to rewind. Press repeatedly to increase rewind speed.
•
: In Playback Mode, press to play/pause video.
• In Live Viewing Mode, press to open Search Menu to select playback time.
•
: In Playback Mode, press to fast forward. Press repeatedly to increase fast for-
ward speed.
•
: In Playback Mode, press to stop video playback.
• In Live Viewing Mode, press to stop DVR recording. Password required; does
not override scheduled recording.
• Press and hold for 15 seconds to reset the DVR to the default resolution. DVR
will reboot.
•
: Press to stop/resume recording. When the channel displays a red box with the
letter "C", the channel is recording.
• MENU/ESC: Opens the system menu. In menus, press to go back/exit menus.
