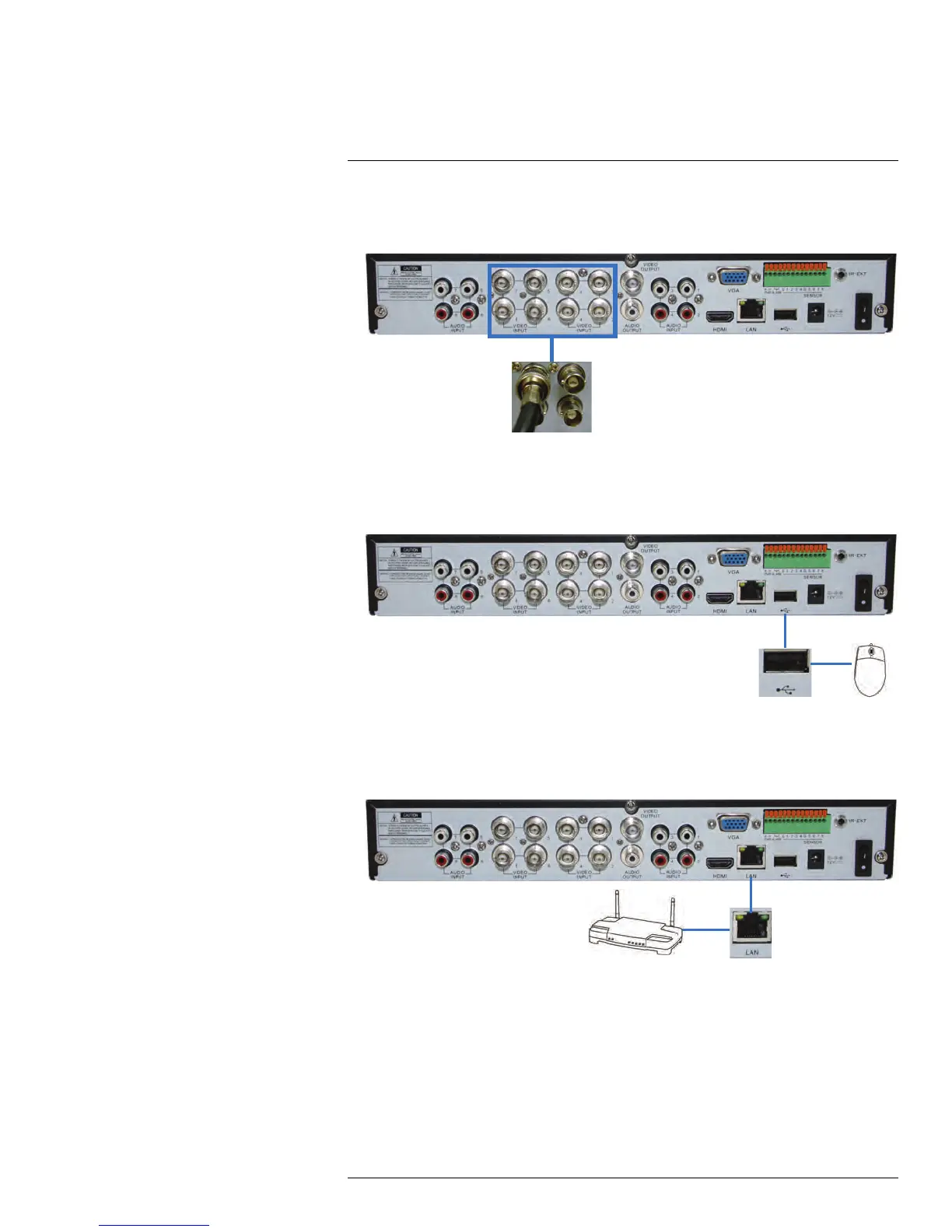

Basic Setup (LH150 Series)
6
6.1 Step 1: Connect the BNC Cameras
Connect BNC cameras to the Video Input ports on the rear panel of the DVR.
00
Push and twist the BNC connector clockwise to secure it to the BNC port
6.2 Step 2: Connect the Mouse
Connect a USB mouse (included) to one of the USB ports.
0
6.3 Step 3: Connect the Ethernet Cable
Connect an Ethernet cable (included) to the LAN port on the rear panel of the DVR.
Connect the other end of the Ethernet cable to a router on your network.
0
6.4 Step 4: Connect the Monitor
Connect the included HDMI cable from the HDMI port to the TV or monitor
(recommended).
OR
Connect a VGA cable (not included) from the VGA port to the monitor.
#LX400012; r. 2.0/12066/12066; en-US
11
