Using the System
2 Signal Indicator: The signal indicator shows the strength of the signal being received from
the camera. The number of bars in the Signal Indicator shows the strength of the signal. One,
or no bars indicates the signal is poor, and 4 bars indicate a very strong signal. The signal
indicator is not shown during quad mode.
NOTE: If the signal is lo
w (e.g. 1 or 2 bars) adjust the antennas, or reposition the cameras
or receiver for best performance.
3 Recording Indicator: "REC" appear
s during manual, motion, and schedule recording.
4 SD Card icon: A
white "SD" icon displays that an SD card is in the wireless receiver.
5 Power Failure icon:
Flashing icon indicates a power failure has occurred on the system. You
may need to manually restore settings or modes on the system after a power failure. For
details, see “Appendix G: Power Failure Indicator” on page 38.
6 File Icon: Flashes
yellow when writing data to the SD card. Flashes red when the SD card is
full.
SD card full
SD card writing data
7 Camera indicator: Displays the camera you are presently viewing; position of camera
indicators shifts to the left side of the screen while in Quad mode.
8 Time Stamp: The current date and time on the system.

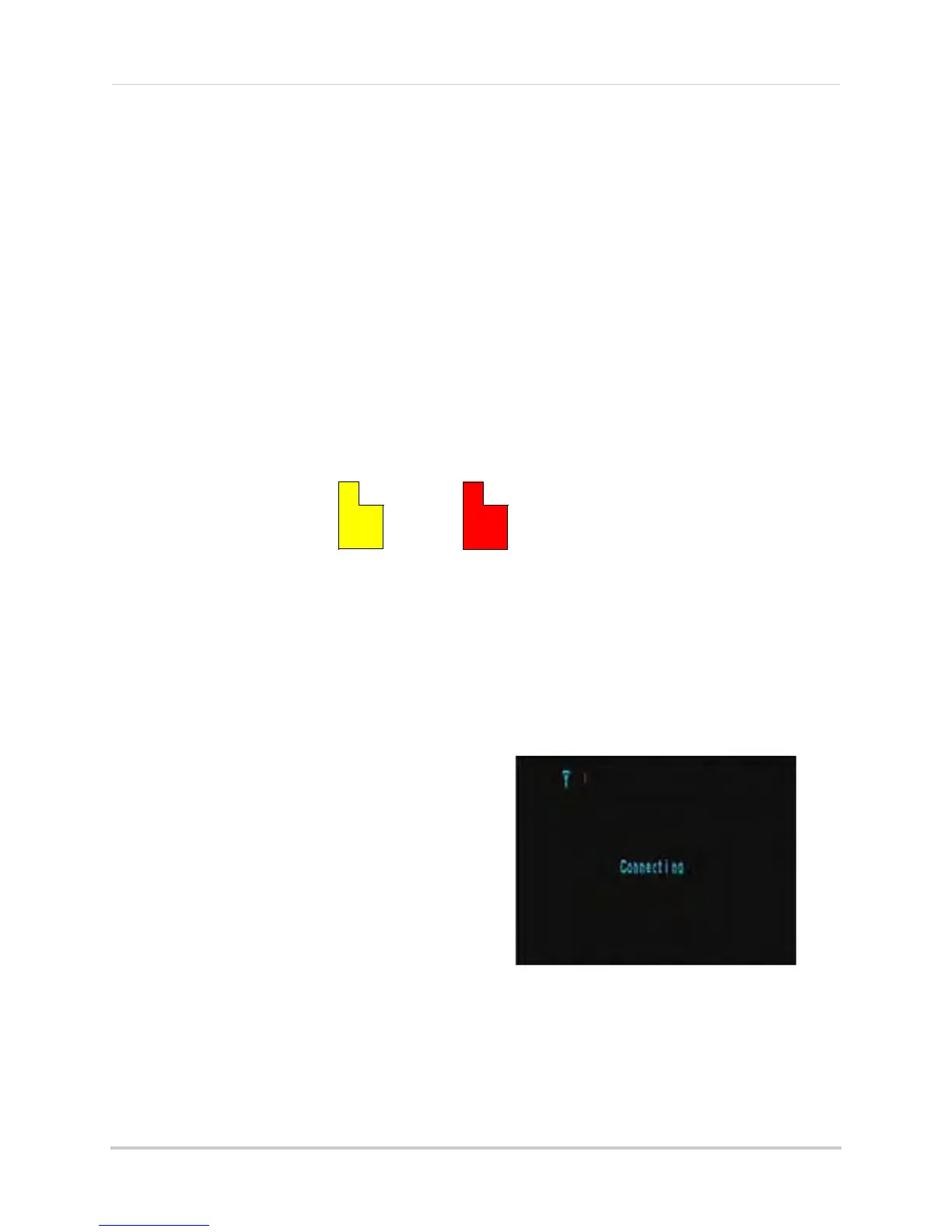

About the Status Indicator
The status indicator message "Connecting"
appears when the receiver is trying to
locate a camera.
NOTE: Ther
e may
be temporary signal
losses for less than 1 second, due to
the connection retrieval process
between the Camera and Receiver
(when switching between channels).
This is a normal operation of the
receiver.
