Operating Instructions
3.15.8.2 Generator
The generator must be used together with the regulator;
The negative pole "-" of silicon rectification generator is grounded. The positive and negative poles of the
generator, regulator and battery can not be connected incorrectly, or the generator
and regulator will be burnt out;
It is prohibited to check whether the generator generates electricity by grounding ignition;
During shutdown, the ignition key shall be pulled out to cut off the connection between the motor and the
battery, so that the battery will not discharge for a long time.
3.15.8.3 Starter
The starter shall not work continuously for a long time, and each starting time shall not exceed 5s (seconds)
to avoid damage to the starter;
At the moment of starting, if a clear impact sound (withstand gear) of the starter pinion and flywheel ring
gear is heard, the key shall be returned immediately, and then
the second start shall be performed;
During starting, if the key is returned and the starter continues to run, it shall be shut down immediately and
started after troubleshooting.
3.15.8.4 Rear Trailer Socket
The electrical system of TE series tractors is of 12V (volt) negative grounding two-wire system. See Fig. 3-19
for the composition and circuit of the electrical system.

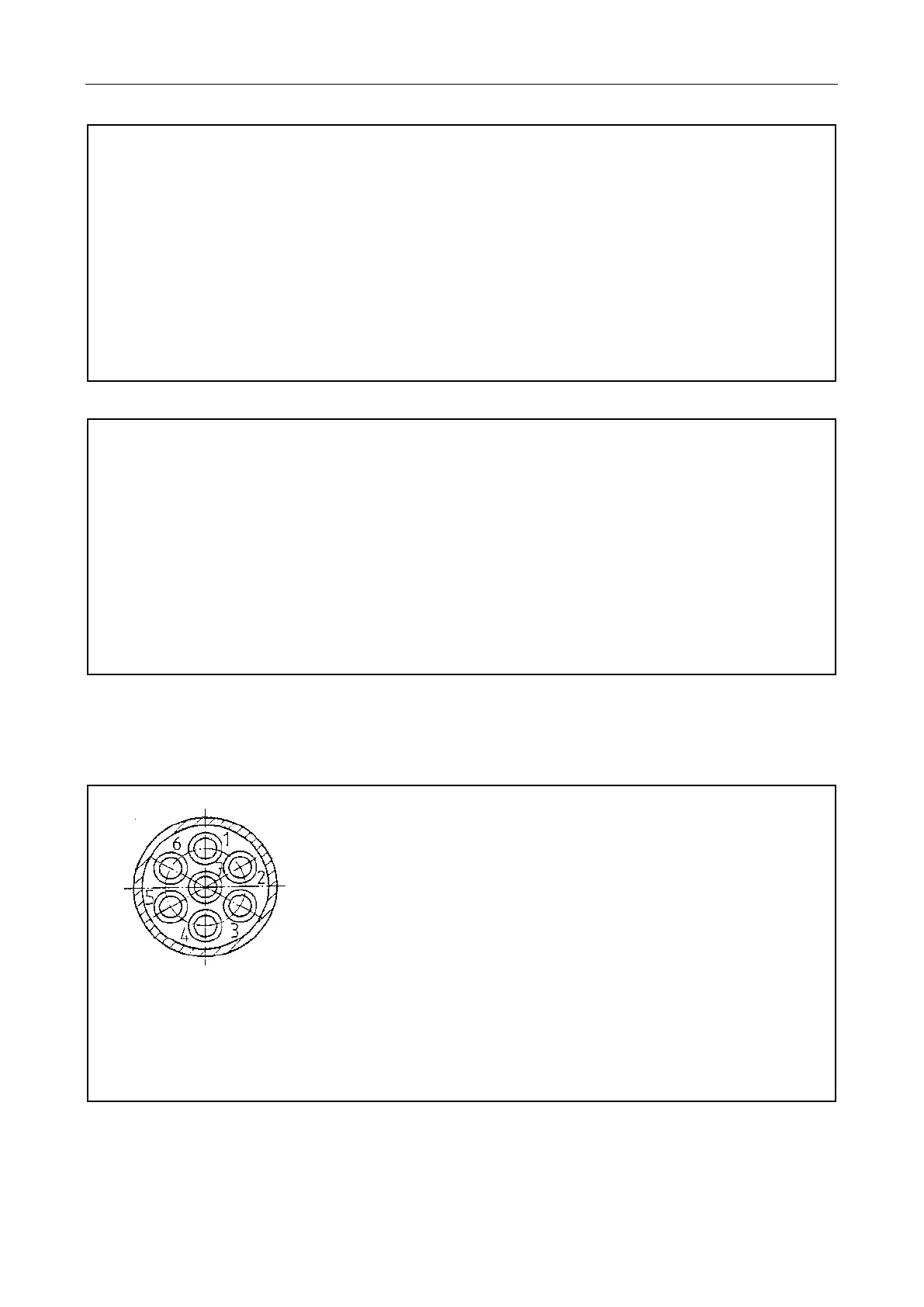

Rear trailer socket: in order to make it convenient to add trailer signal lights
when tractors are equipped with trailers, this vehicle is equipped with rear trailer
socket, and a bolt is equipped in the spare parts box. The connection position of
socket is shown in the figure.
Contact 1: To left turn signal
Contact 2: Empty
Contact 3: Ground wire
Contact 4: To right turn signal
Contact 5: To rear right position lamp and rear license plate lamp
Contact 6: to brake lamp
Contact 7: To rear left position lamp and the rear license plate lamp
Fig. * Rear Trailer Socket
