Operating Instructions
3.15.7.1 Running-in of Power Take-off Shaft
The TE EC series tractor is equipped with a two-speed power take-off shaft with a rotating speed of
540/1000 (r/min). The operation steps of the power take-off shaft are as follows:
1. Ensure that the PTO clutch switch is turned off, i.e., in the "0" position, and can be controlled by the
dashboard.
2. Turn the control handle of power take-off shaft to neutral
position, remove the cover of power take-off shaft, then connect
the connect the universal joint on the agricultural tool with the
power take-off shaft.
3. Confirm that the PTO guard is installed;
4. Then turn the control handle to the gear position of the required
speed.
5. Turn on the PTO clutch, the corresponding PTO clutch
engagement indicator light (green) on the combination
instrument is on, and the work machine starts to operate.
6. Set the lifter control handle to the "lifting" position to lift the farm
implements;
7. Disconnect the work machine in the opposite order.
Warning: When the power take-off is engaged, no one is allowed to approach the agricultural
machinery, so as to avoid accidental injury!
3.15.8 Use of Electrical Equipment
3.15.8.1 Battery
The battery is used to store the electric energy generated by the generator. When the generator does not work or
runs at low speed, the stored electric energy can be supplied to the electrical equipment of the tractor, and when
the generator is overloaded for a short time, it can assist in power supply.
The dust and sludge shall be removed from the battery case frequently to avoid electric leakage.
It shall be checked for cracks and electrolyte leakage, the pole and wire shall be kept in good contact, and the vent
hole of the plastic cover shall be unblocked to avoid explosion;
The battery voltage shall be checked frequently, and when it is too low, the battery shall be charged in time;
Each starting time shall not exceed 5s (seconds) to avoid over discharge;
If the tractor is not used for a long time, the battery shall be removed for charging and maintenance.

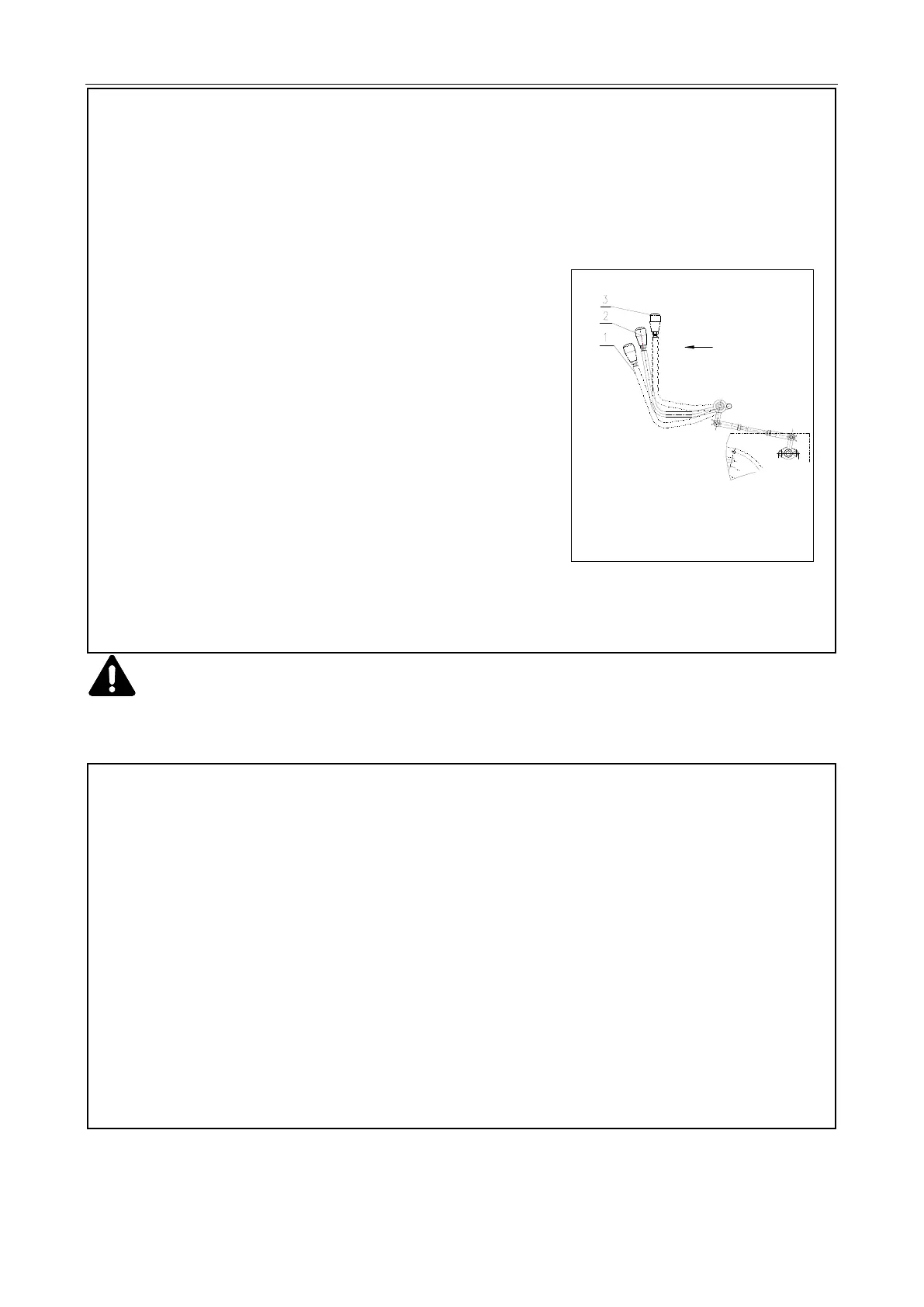

Operation of Power Take-off Device
1. High gear 2. Neutral gear 3. Low gear
