4.2 Hygienic preparation of the therapy device

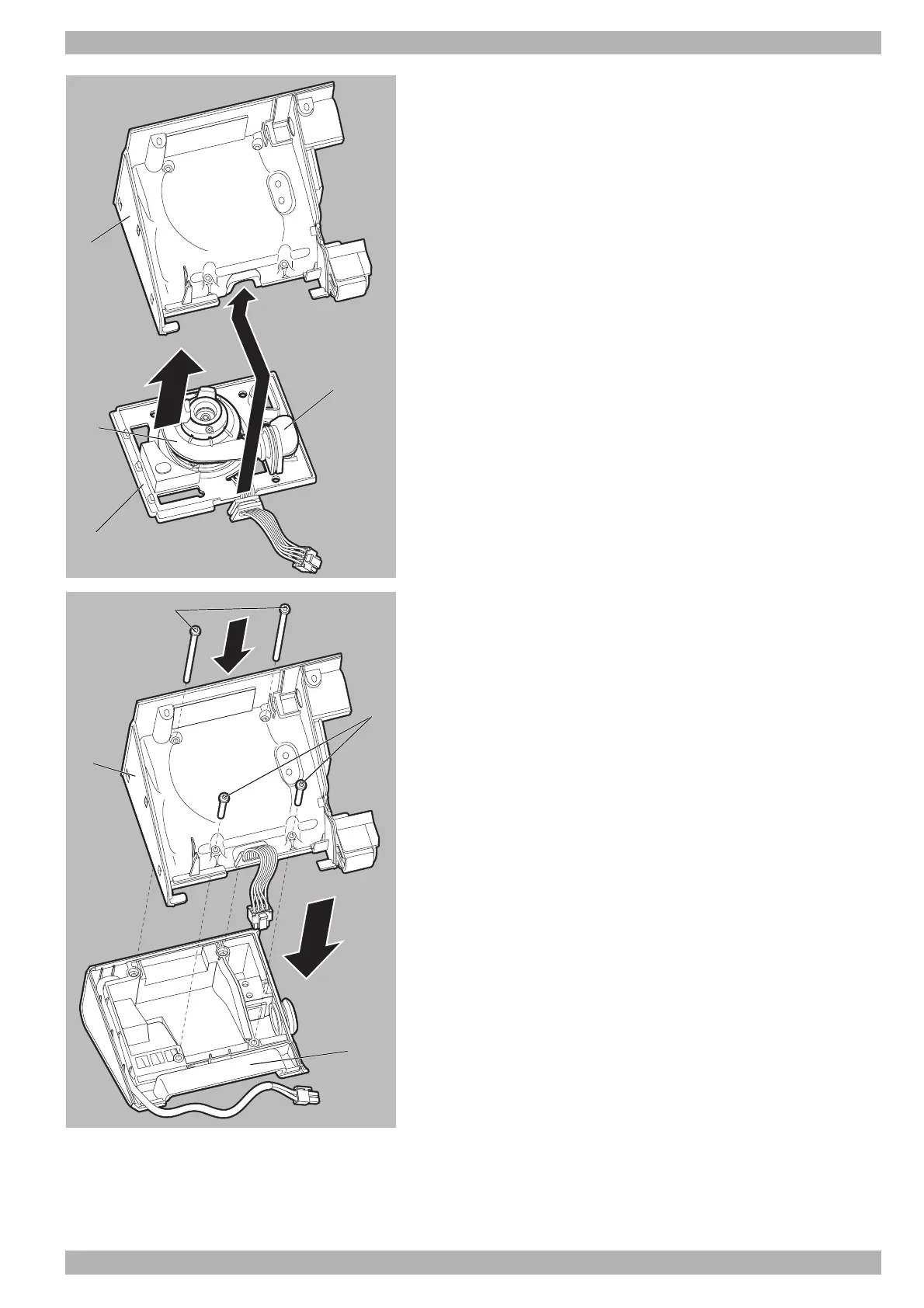

20.Insert the fan 47 with the membrane 36 into the central part of the
housing 2.
21.Insert the decoupling hose 7 and the cable bushing into the central
part of the housing 2.
Note: The decoupling hose must not be kinked or trapped.
22.Place the central part of the housing 2 on the rear of the housing 1.
Note:
• The connection cable for the power supply unit must be
installed and correctly routed.
• The membrane between the parts of the housing must be
positioned correctly.
23.Secure the central part of the housing 2 in place with the 4 screws
23 and 24.
24.Close the therapy device (see "7.3 Closing the therapy device",
page 43).
25.Replace the air filter and pollen filter (if present) (see "3.3 Changing
the filter", page 20).
26.Insert the new seal for the device outlet 40 and the new device
outlet 51.
27.Reset therapy device to factory settings.
28.Test the therapy device (see "5 Final test", page 29).
