7.6 Replacing the fan
7.6.2 Installing the fan

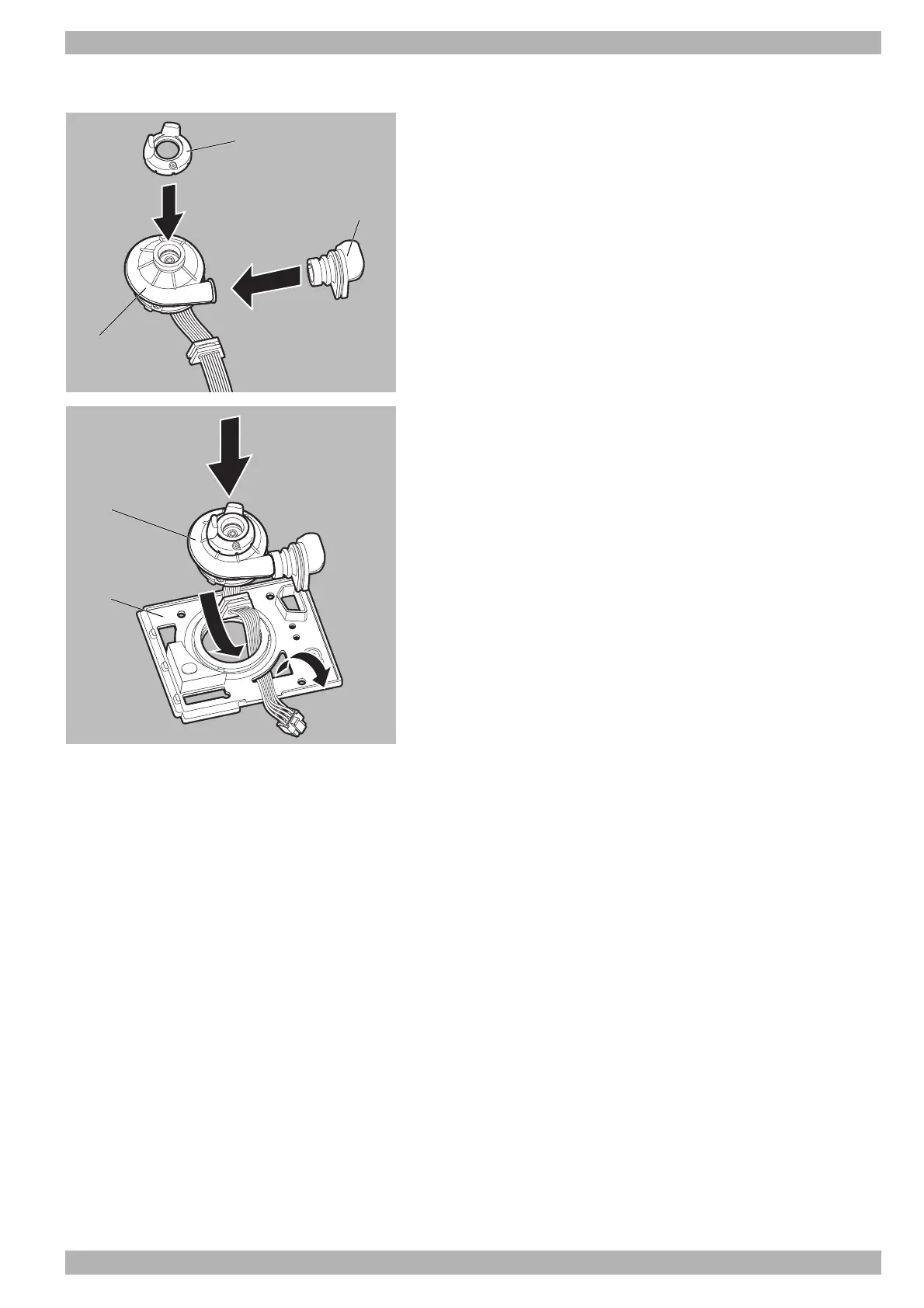

1. Secure the new decoupling hose 7 and new spacer 44 on the new
fan 47.
When doing so, pay attention to the correct positioning.
2. Insert the fan 47 in the membrane 36.
Note: The marks on the membrane must be aligned with the screws
on the fan.
