54 EN WM 100 TD and WM 100 TH
WM 67971b 09/2017

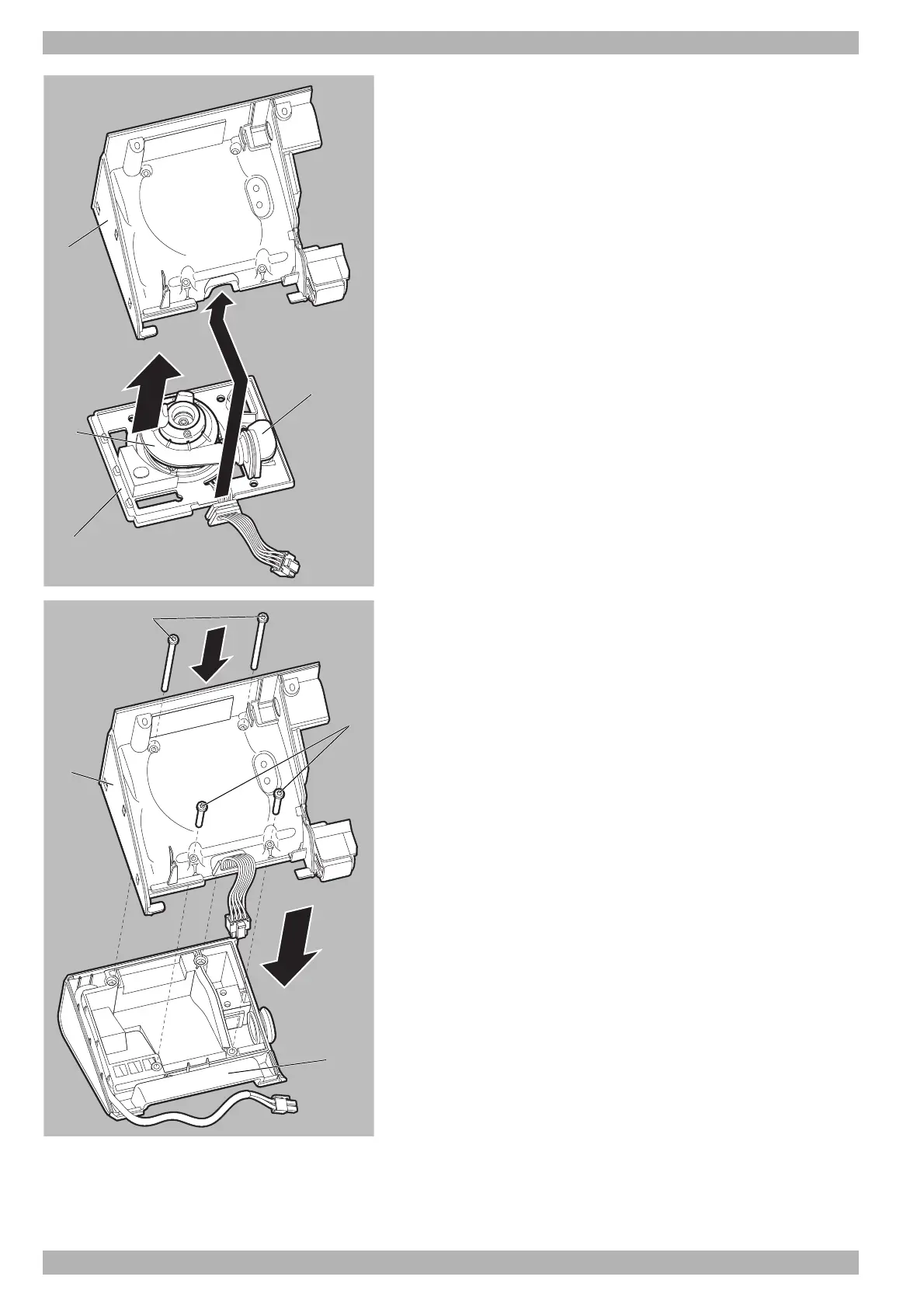

7 Repairs
3. Insert the fan 47 with the membrane 36 into the central part of the
housing 2.
4. Insert the decoupling hose 7 and the cable bushing into the central
part of the housing 2.
Note: The decoupling hose must not be kinked or trapped.
5. Place the central part of the housing 2 on the rear of the housing 1.
Note:
• The connection cable for the power supply unit must be
correctly routed.
• The membrane between the parts of the housing must be
positioned correctly.
6. Secure the central part of the housing 2 in place with the 4 screws
23 and 24.
7. Close the therapy device (see "7.3 Closing the therapy device",
page43)
