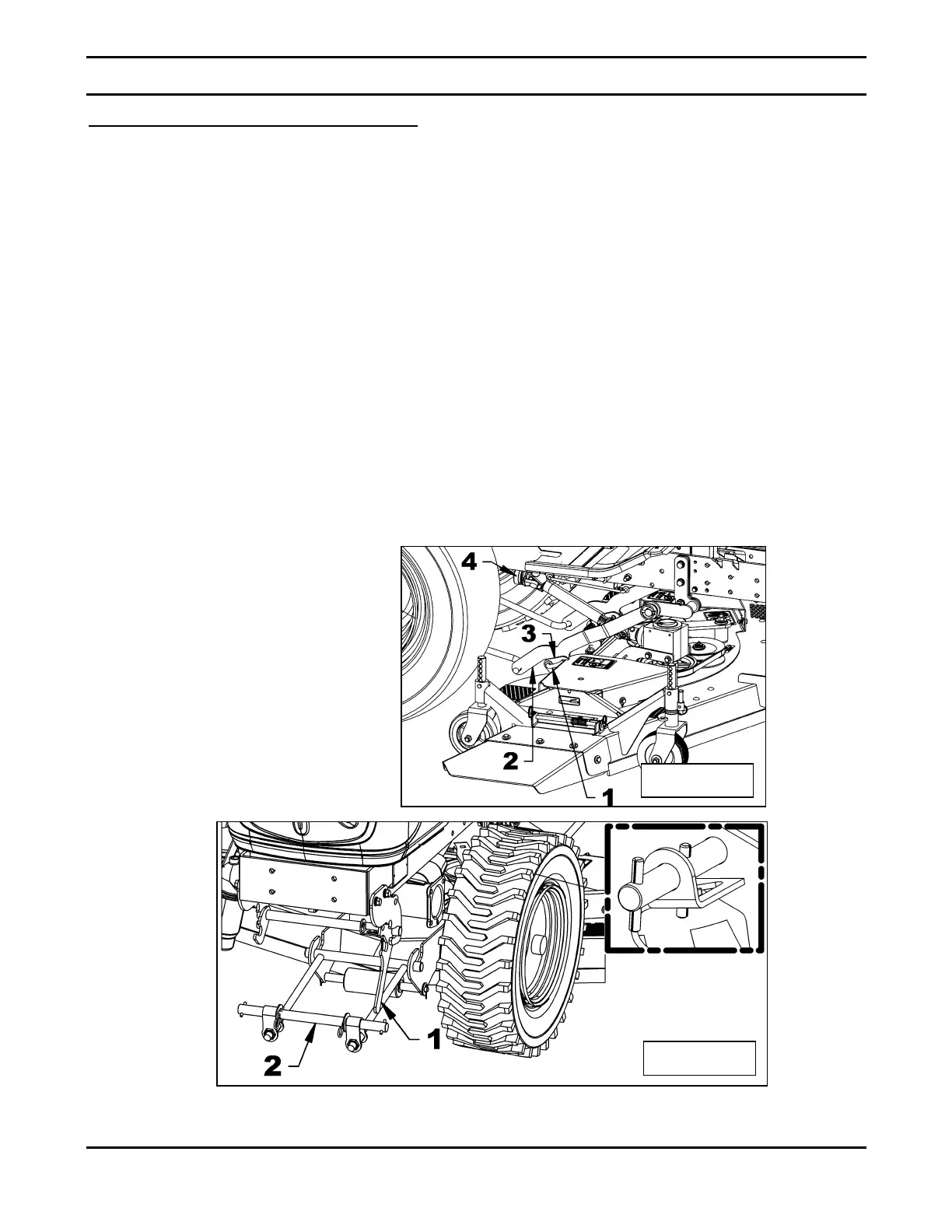

Removing the Mower from the Tractor (figures 18-19)
1. Figure 18: Lower the tractor 3 point hitch
completely.
2. Figure 18: Disconnect the driveline
(item 4) from the tractor. Lay it down in
the middle of the mower away from the
tractor wheels.
3. Figure 18: Pull out the latch (item 1) until
it's completely out of the hole and rotate
it slightly until the end rests against the
plate (item 3).
4. Figure 18: Remove the lifting arm
(item 2) from the two plates (item 3).
5. Figure 18: Rotate the latch (item 1) until it's
inserted in the plates (item 3).
6. Repeat the same procedure on the other
lifting arm.
7. Figure 19: Remove the locking “T” pin of the
anchor lever rod (item 1). Lower the anchor
lever (item 1) and free the anchor rod (item 2).
8. Figure 19: Raise the anchor lever (item 1)
and lock it with the "T" pin to lock the front
support.
