LS tractor LM3560A User Manual

PARTS
OM 0442MW-A
39
5000017
5000028
SPINDLE
REF.
DESCRIPTION
QTY
PART #
1
Flat washer 26mm x 50mm x 4mm PTD
1
1400034
2
Bearing 6206_rs1
1
4300095
3
Bearing 6305_rs1
1
4300096
4
Lockwasher mb-5
1
4300097
5
Nut M25 x 1.5 km-5
1
4300098
6
Spindle hub
1
5000018
7
Round end key 8 x 7 x 25
1
5000019
8
Grease fitting M8 x 1.0
1
5000020
9
Spindle shaft
1
5000021
10
Spacer for bearing
1
5000022
11
Plug allen 1/8"NPT PTD
1
656090

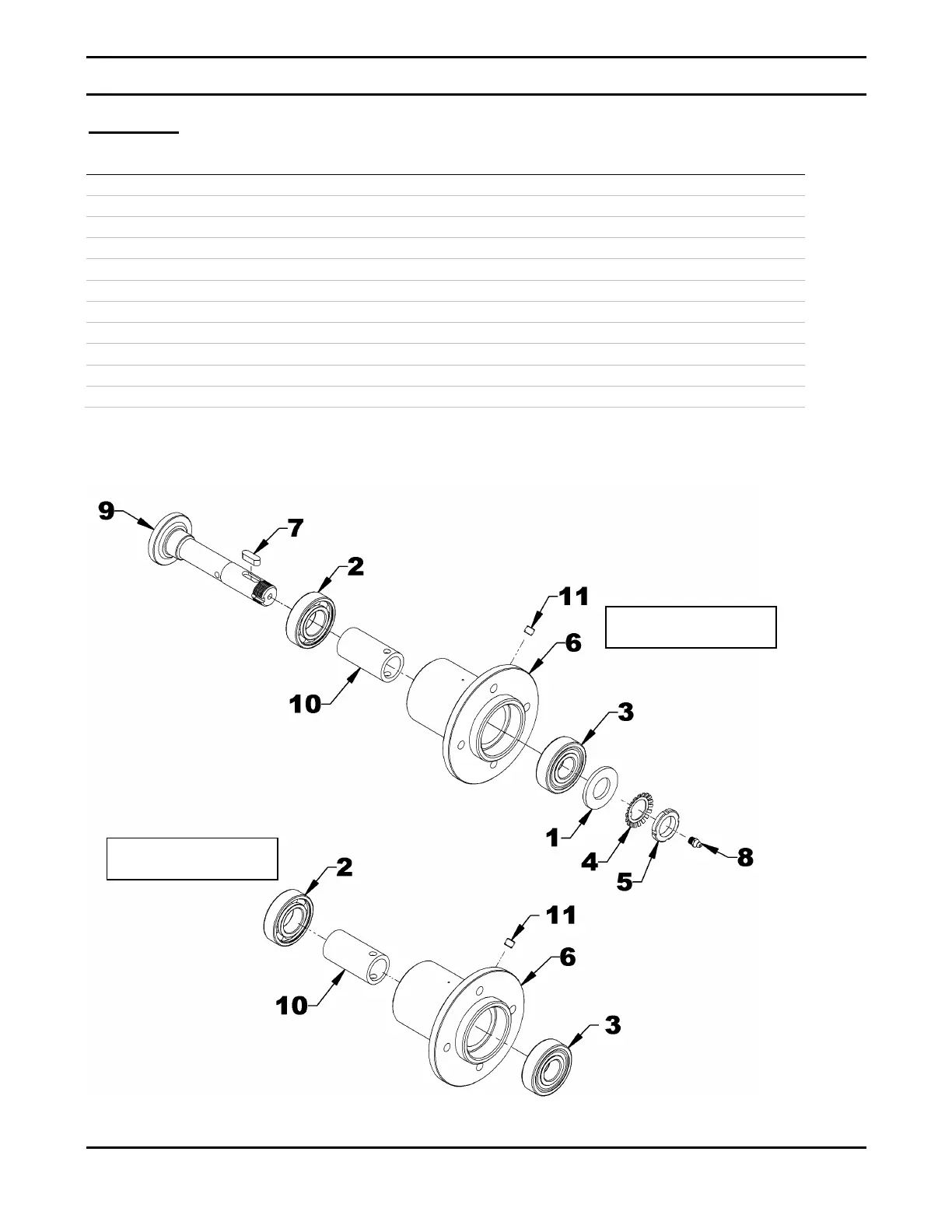

FIG: 000700_RAD1504015
