LS tractor LM3560A User Manual

PARTS
OM 0442MW-A
34

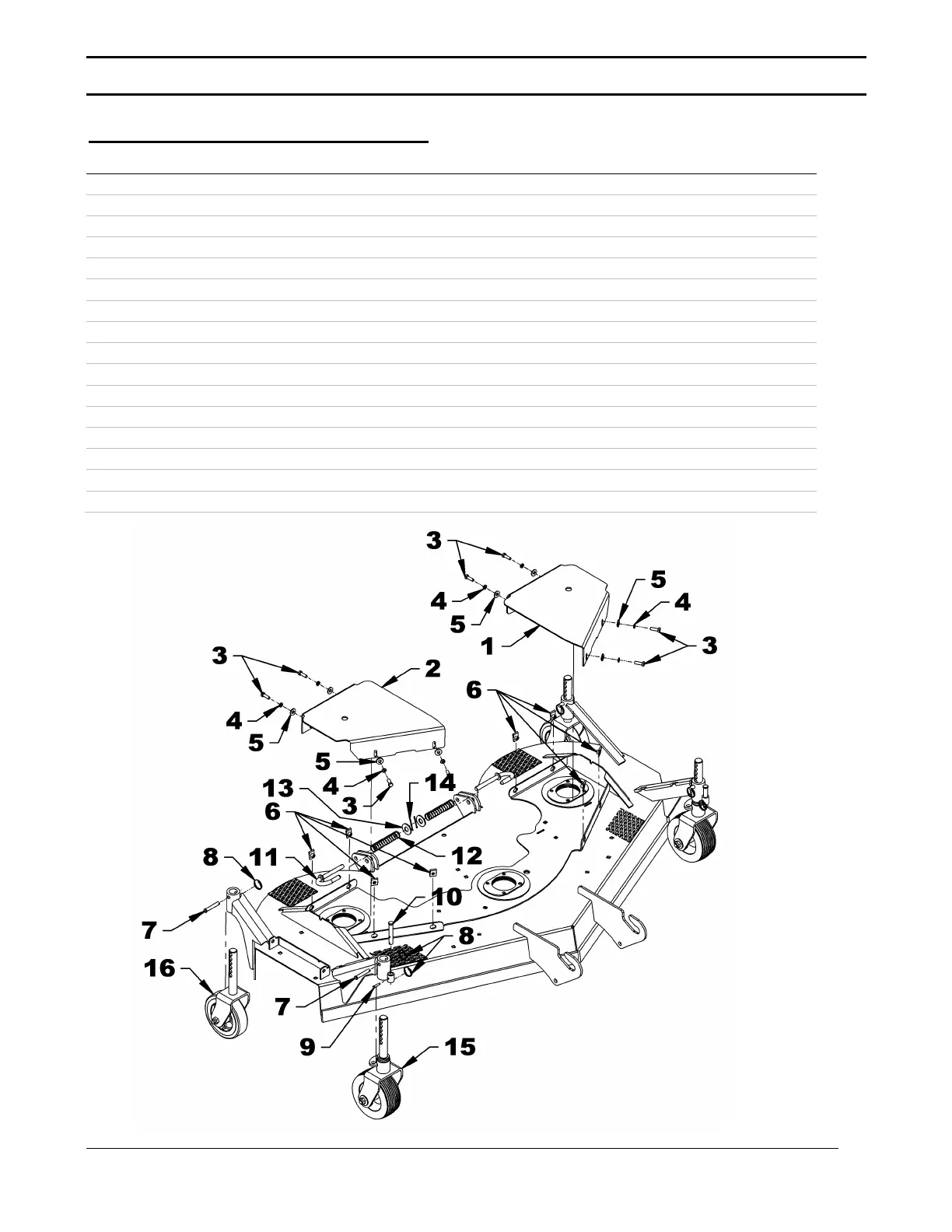

UPPER PART OF MOWER FRAME
REF.
DESCRIPTION
QTY
PART #
1
Left belt guard
1
671181
2
Right belt guard
1
671182
3
Hex bolt 5/16"NC x 1" gr.5 PTD
8
0100019
4
Lockwasher 5/16" PTD
8
1200003
5
Flat washer 5/16" (3/8" hole) PTD
8
1400003
6
Spring nut 5/16"NC x 1" x 11/16"
8
1100030
7
Clevis pin 3/8" x 2 1/4" PTD
4
4600059
8
Circle cotter 1 1/8"OD x 0.072" wire
6
1900010
9
Pin 3/16" x 1" PTD
2
4600002
10
Pin 1/2" x 3" PTD
2
669935
11
Latch PTD
2
669894
12
Compression spring .906" x 4 1/4" x 0.050" wire
2
2200024
13
Flat washer 9/16" (9/16" hole) PTD
2
1400007
14
Cotter pin 3/32" x 1 1/4" PTD
2
1500003
15
Front wheel 6 1/4" x 3" ass'y
2
671082
16
Rear wheel 6" x 2" ass'y
2
671083
FIG: 000300_RAD1504011
