PARTS
OM 0442MW-A
38

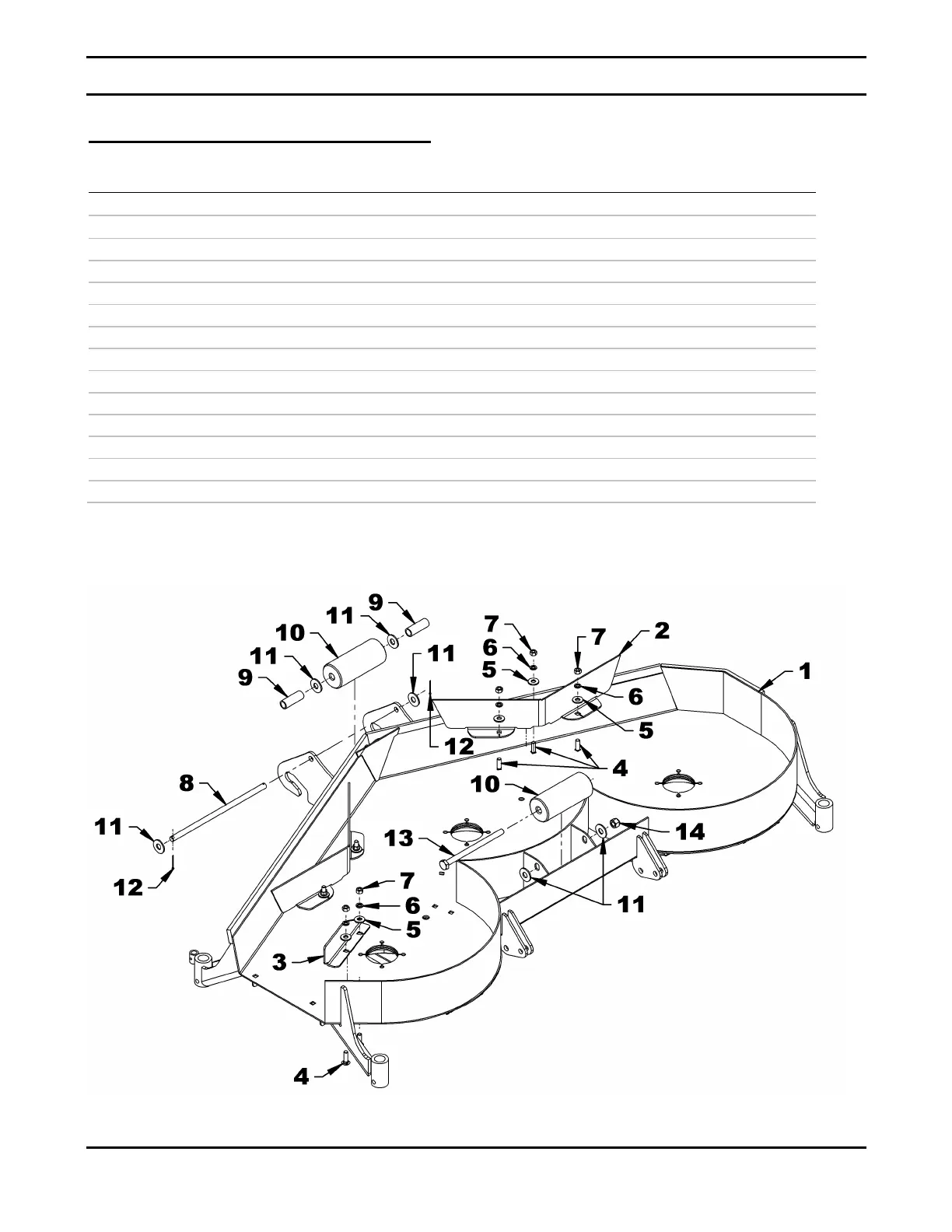

UNDER PART OF MOWER FRAME
REF.
DESCRIPTION
QTY
PART #
1
Mower frame
1
671180
2
Middle ejection deflector
2
670231
3
Ejection deflector
1
670232
4
Carriage bolt 3/8"NC x 1 1/4" lg PTD
8
0300009
5
Flat washer 3/8" (7/16" hole) PTD
8
1400004
6
Lockwasher 3/8" PTD
8
1200004
7
Nut hex. 3/8"NC PTD
8
0900003
8
Roll pivot pin 1/2"X 12 5/16" lg
1
669914
9
Spacer bushing
2
669916
10
Anti-scalp roller 2 1/2" x 6" - 9/16" hole
2
3800075
11
Flat washer 1/2" (9/16" hole) PTD
6
1400006
12
Cotter pin 3/32" X 1 1/4"
2
1500003
13
Bolt hex 1/2"NC x 7 1/2" lg PTD
1
0100085
14
Nylon insert locknut 1/2"NC PTD
1
1000011
FIG: 000600_RAD1504014
