LS tractor LM3560A User Manual

PARTS
OM 0442MW-A
31

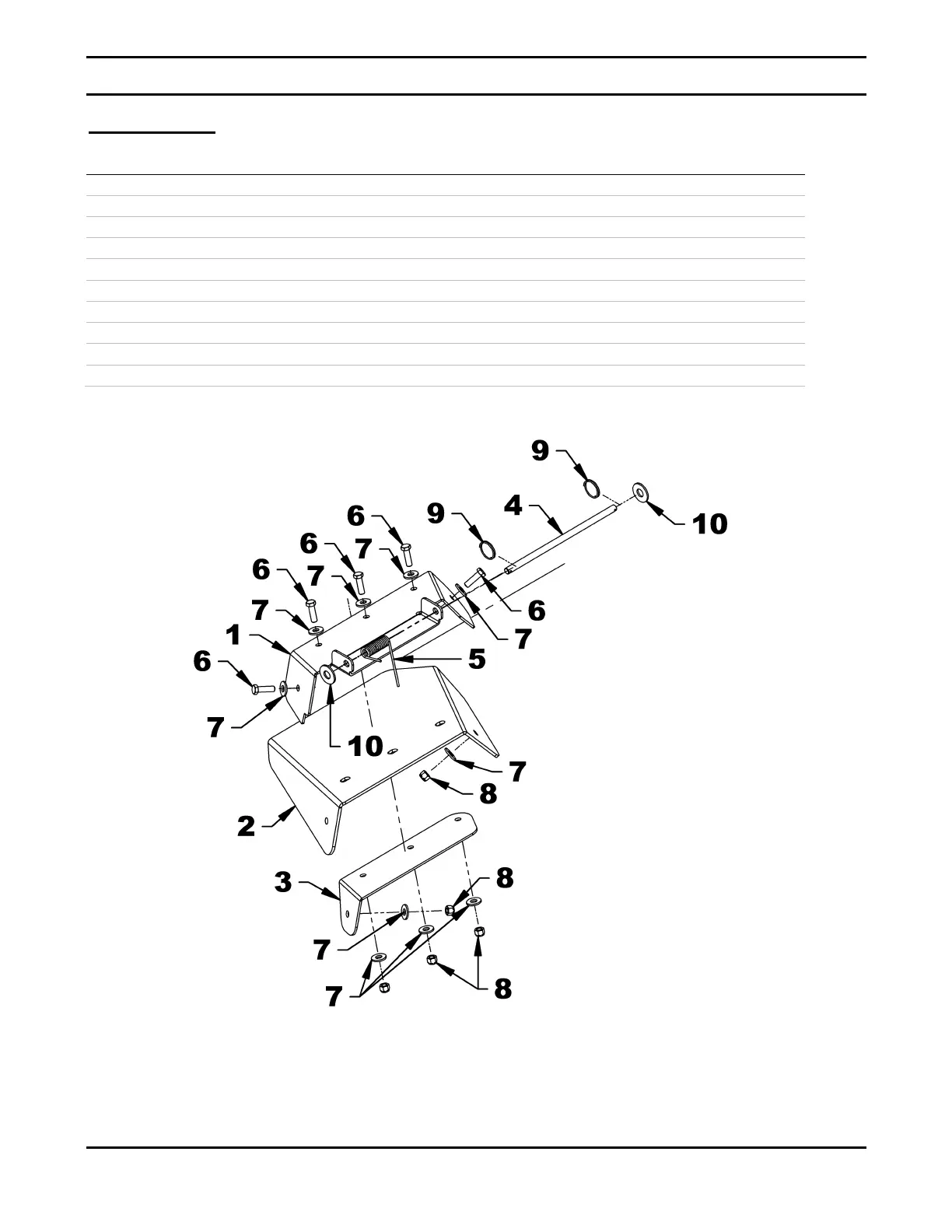

DEFLECTOR
REF.
DESCRIPTION
QTY
PART #
1
Deflector support
1
669932
2
Rubber deflector
1
669939
3
Deflector reinforcement
1
669933
4
Deflector pivot pin 7/16" X 10 1/4" lg
1
669913
5
Compression spring 23/32"ID X 2 1/2" x 0.12 wire
1
2200026
6
Bolt hex. 3/8"NC x 1 1/4" gr.5 PTD
5
0100039
7
Flat washer 3/8" (7/16" int.) PTD
10
1400004
8
Nylon insert locknut 3/8"NC PTD
5
1000006
9
Circle cotter 1 1/8" OD x 0.072"dia. wire
2
1900010
10
Flat washer 1/2" (9/16" int.) PTD
2
1400006
FIG: 000100_RAD1504009
