WARNING
Bracket screw location –Use of incorrect screws can cause ventilator failure with resulting
harm to the patient.
3) Insert five #4-40 3/8” back panel mounting screws (P/N 10879) and torque tighten to 60
in-oz (0.42 Nm). You may need to apply some pressure to the back panel and housing
to correctly align the threads and insert the screws.

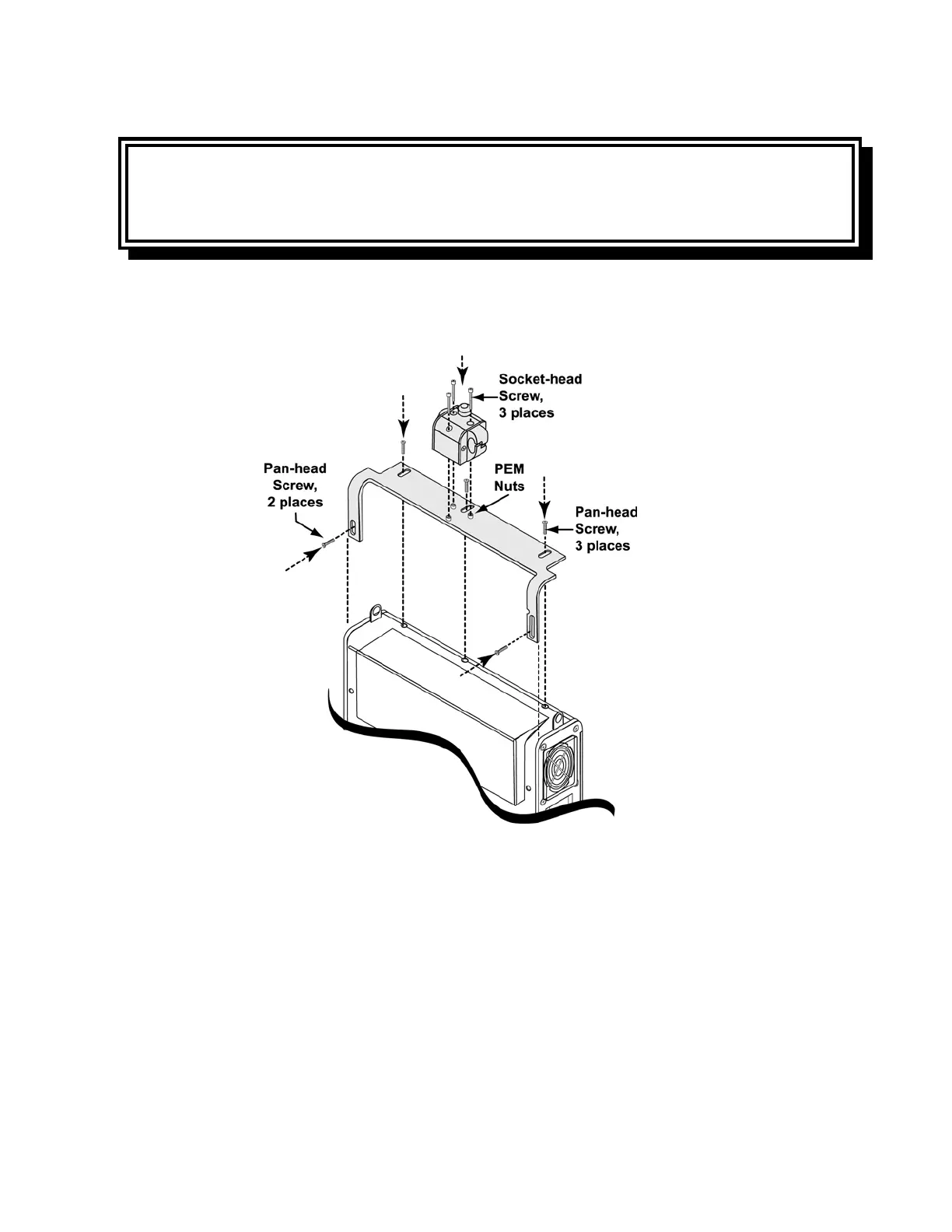

4) Orient the mounting block to the mounting bracket as shown in the illustration, and align
its three counter bored holes to the corresponding PEM
®
nuts on the bracket.
5) Insert three mounting block screws, use a 7/64” Allen-wrench and torque tighten to 60
in-oz (0.42 Nm).
