p/n 18603-001, Rev. C LTV
®
1200/1150 Ventilator Service Manual Page 8-33
Internal Flexible Tubing
Anytime service of internal components is performed on an LTV
®
ventilator and internal
tubing has been removed, it must be reattached as originally configured in order to ensure
the proper operation of the ventilator.
Pulmonetic Systems recommends that technicians review and become familiar with the
existing tubing configuration prior
to removing individual tubes and strictly adhere to the
replacement instructions provided when reattaching them (point to point and layering).

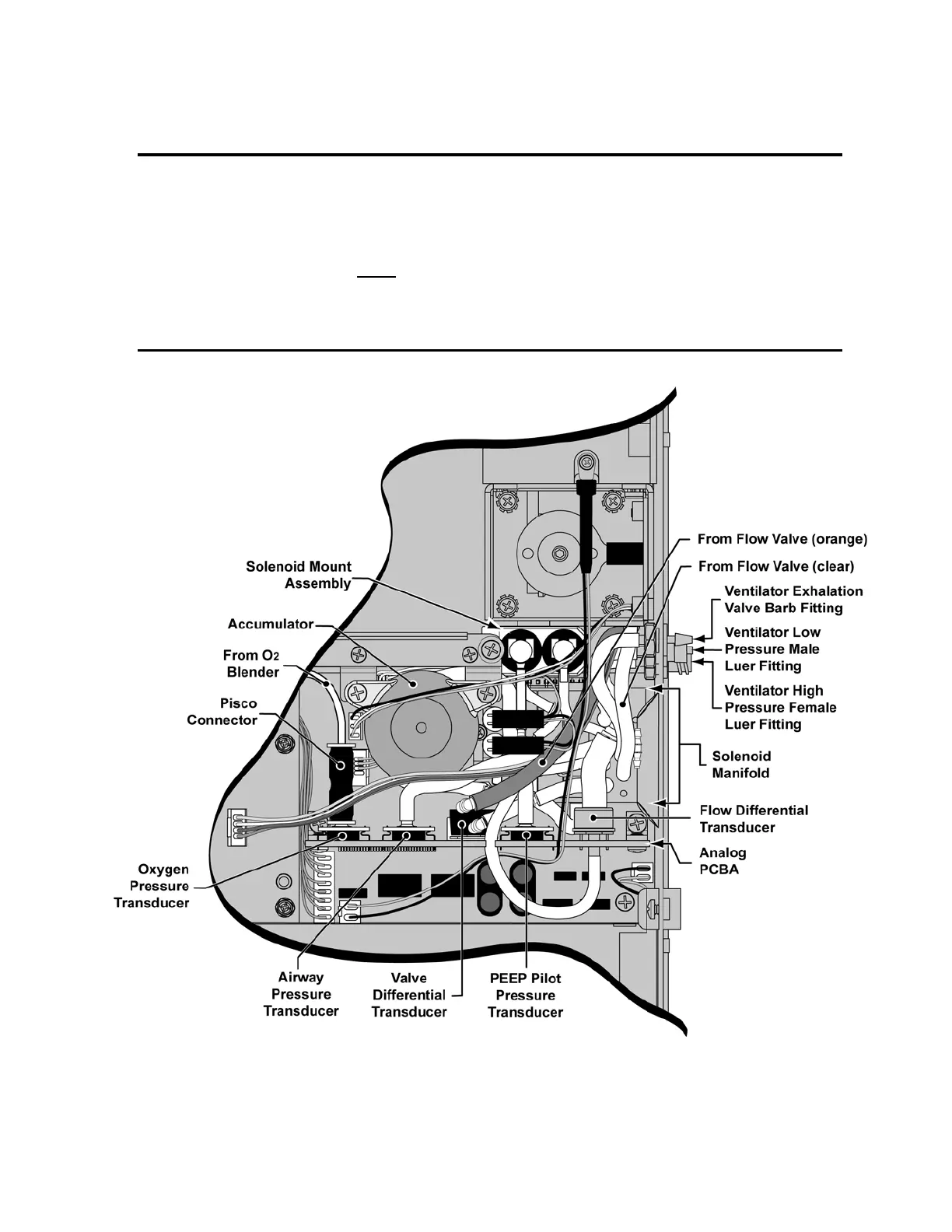

Tubing Overview Diagram
