Lubing LC-2 - Dimensions D-Line pump unit; Dimensions R-Line pump unit; Diagram no. of nozzles - necessary flow rate

Top climate system
with LUBING Touch Controller
Copyright © Lubing System - All rights reserved
55

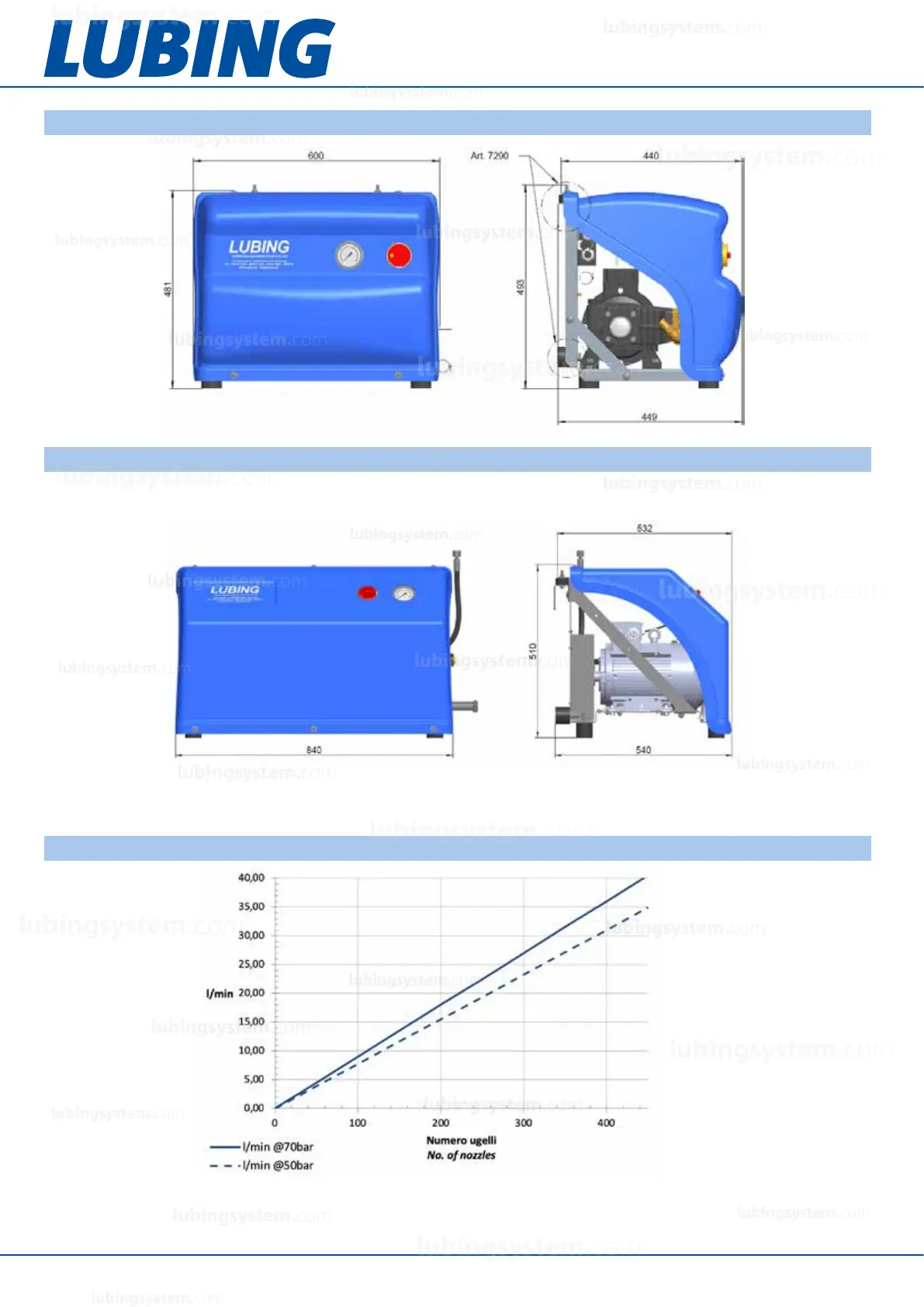

9.1 Dimensions D-Line pump unit
9.2 Dimensions R-Line pump unit
9.3 Diagram no. of nozzles – necessary flow rate
(The nozzles can work with 50-70 bar. The lower the pressure, the smaller is the water consumption per nozzle. The pressure loss in the
pipes results in lower pressures at the end of the line.)
