Top climate system

with LUBING Touch Controller

4.5.3 PressFix ﬁttings

The nozzle lines and connecting pipes can also be assembled with PressFix ttings as an alternative to cutting ring

ttings.

Required assembly tools:

PressFix cordless gripper (art. no. 7460)

PressFix Toolhead PB12 (art. no. 7465)

Preparatory measures:

Check press tting. There must be no dirt or residues in the joint.

Check sealing rings for damage and correct installation in press tting.

The pipe ends must be carefully deburred on the outside and inside. This is the only way to avoid damage to the

sealing rings when inserting the pipes into the ttings.

Note: damaged sealing rings can lead to leakages.

Proceed as follows during assembly:

– Push the pipes into the press tting up to the stop by turning them slightly.

– If problems occur, it is possible that not enough deburring has taken place. Repeat deburring.

– The joints must not be bent, otherwise the seal may be damaged.

– Connect/seal the pipes with the special press tool.

– For reliable and safe pressing, the internal groove of the press jaws must exactly surround the annular bead

of the seal of the tting.

– The jaws grip around the elevation and press the pipe and sleeve tightly.

– After a click is heard, the joint is ready.

4.5.4 Wall mounting of connecting pipes and nozzle lines

Mounting on walls is done horizontally with pipe clips (art. 7431). The distance to the ceiling should be at least

500mm. The recommended distance between the xings is 1.5m - the maximum allowed distance is 2m. At

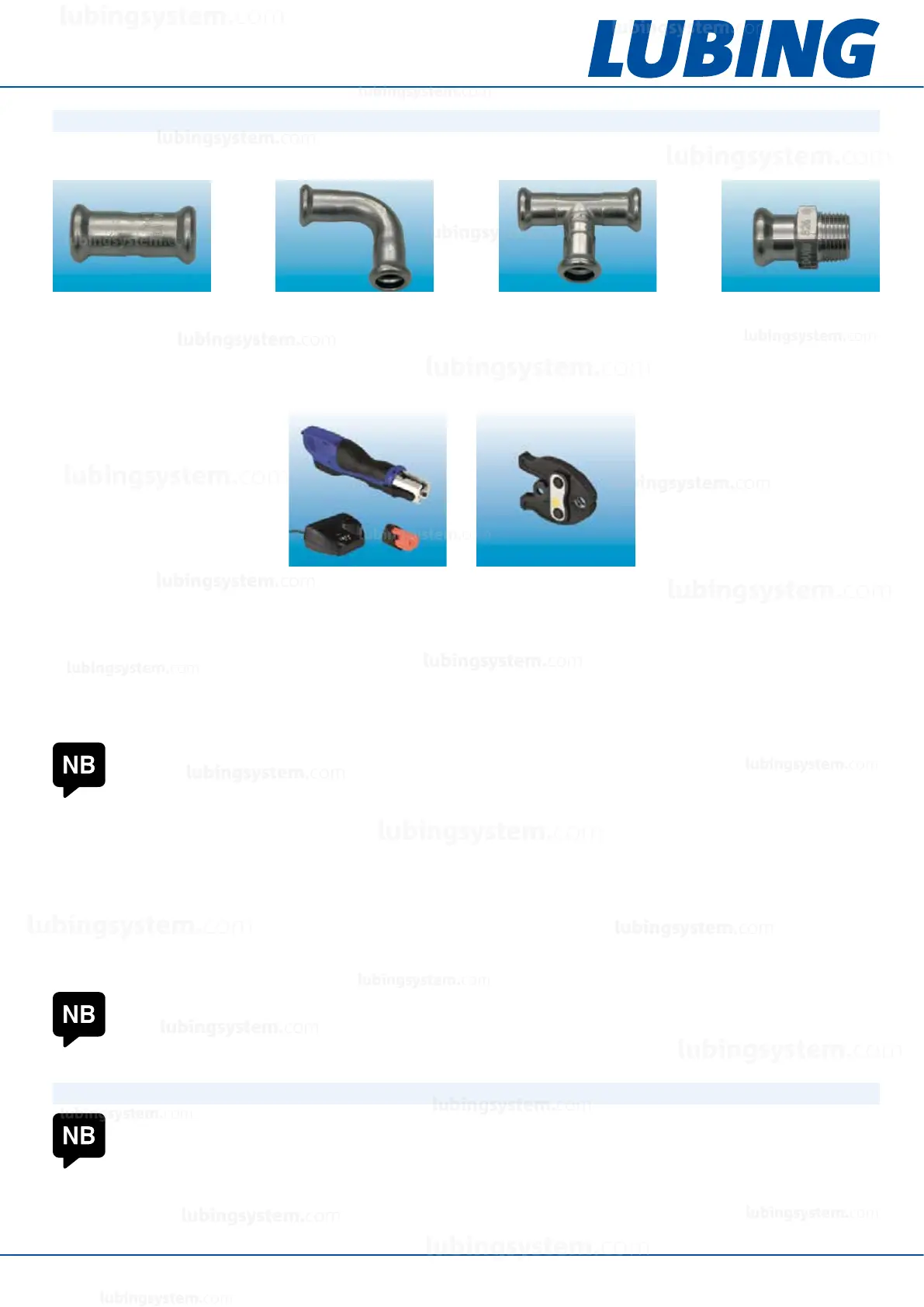

Art. no. 7404 Art. no. 7405 Art. no. 7406 Art. no. 7409

Art. no. 7460 Art. no. 7465

NOTE

The use of oil, grease, adhesives or similar substances is strictly prohibited.

NOTE

Assemble with 2 persons to avoid bending of the pipes under their own weight.

NOTE

Nozzle lines can no longer be rotated after successful installation with PressFix ttings - the spray direction

of the nozzles can no more be adjusted afterwards!
