ND30-09D 45 User's manual
The twisted pair cable categories according to the European standard
EN 50173 are minimum: Class D (category 5) - for high-speed local area
networks, includes the applications using the frequency band up to 100
MHz. For Ethernet connection use the category 5 STP type twisted-pair
cable (shielded) with RJ-45 connector, wiring colors (according to Table 11),
compliant to the following standards:
• EIA/TIA 568A for both connectors in strike-through connection (i.e.
between ND30 and hub or switch)
• EIA/TIA 568A for the first connector and EIA/TIA 568B for the second
one in the cross-over connection (i.e. when connecting the ND30
meter to the computer).
Table 13
Wire no. Signal Wire color according to the standard
EIA/TIA 568A EIA/TIA 568B
1 TX+ white-green white-orange
2 TX- green orange
3 RX+ white-orange white-green
4 EPWR+ blue blue
5 EPWR+ white-blue white-blue
6 RX- orange green
7 EPWR- white-brown white-brown
8 EPWR- brown brown
10.3.2 Web Server
The ND30 meter provides its own web server which enables remote
monitoring of the measuring values and reading a status of the meter. A web
page allows in particular to:
• obtain information about the device (serial number, code execution,
software version, bootloader version, version (standard or special),
• preview current measuring values, read a device status,
• select the web page language
Access to the server can be achieved by entering the IP address of the
meter in the web browser, for example: http://192.168.1.030 (where
192.168.1.030 is set address of the meter). The default web server port is

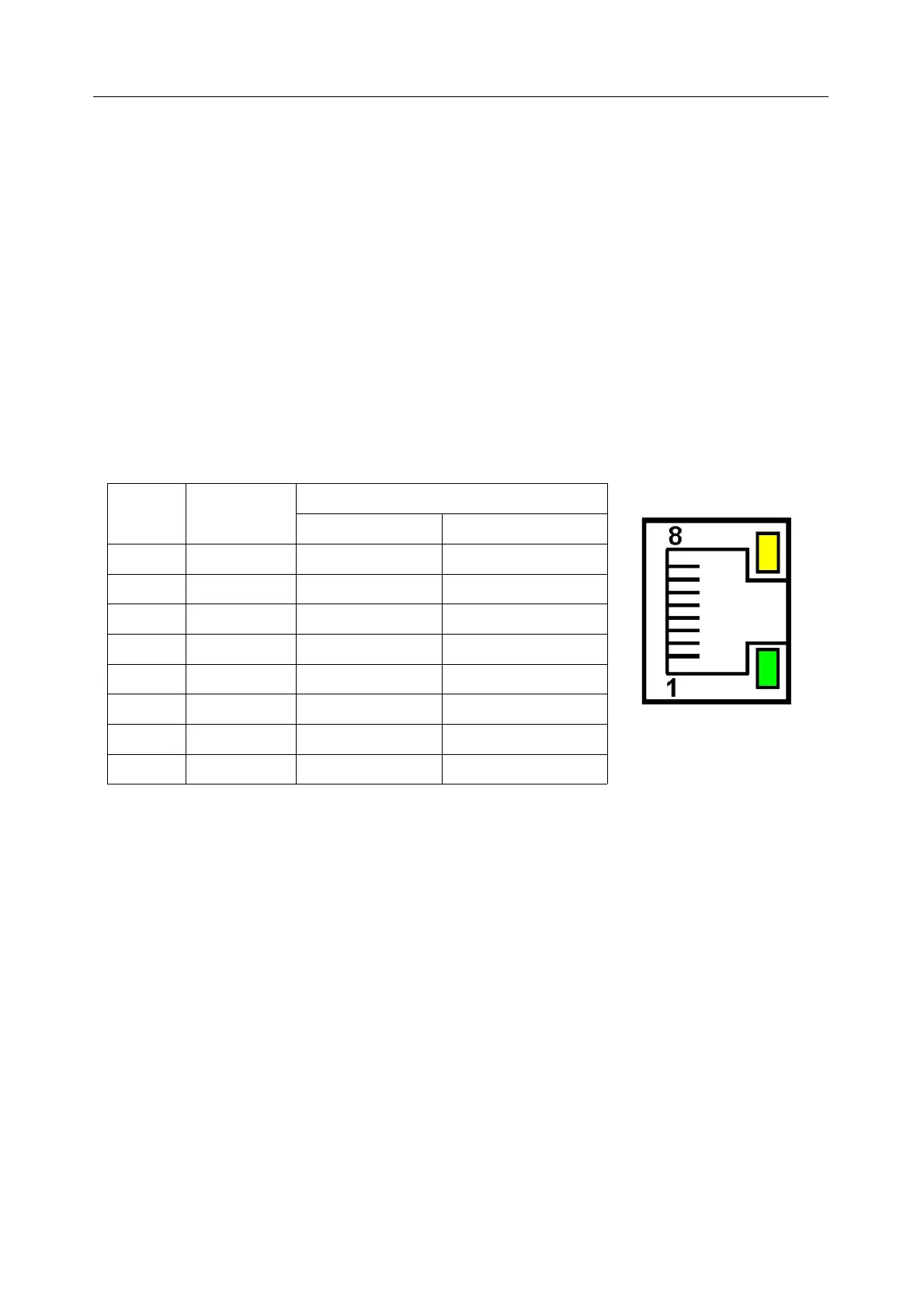

Fig. 28. View and pin
numbering of the
RJ45 socket
