Lumel ND30 - 6 ND30 Programming; Front Panel

ND30-09D 9 User's manual
6 ND30 PROGRAMMING
6.1 Front panel

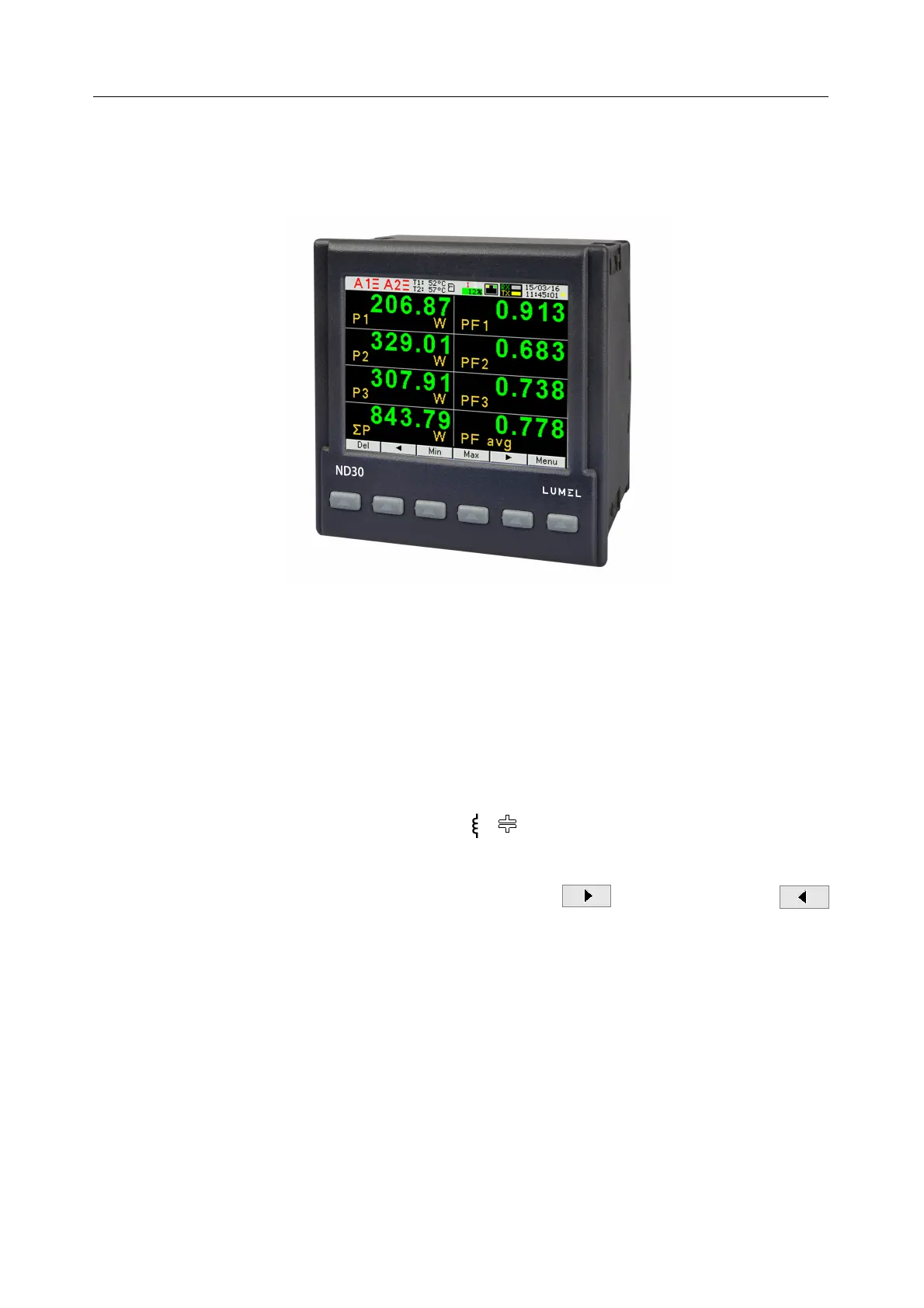

Fig. 8. Front panel
The ND30 meter has 6 buttons and a full-color graphic screen.
Front panel description:
f1, ... , f8
8 field displays - the digits
for readout and settings,
DMD Averaged value indicator (Demand)
V, A, W, var,
VA, Wh, varh,
Hz,
units of the displayed
values
k, M
kilo = 10
3,
Mega = 10
6
U1, I1, P1, ...
..EnQ
displayed parameters
markings
The markers indicating the
inductive, capacity load character
The values of the measured parameters are shown on the active pages
selected by subsequent pressing the buttons (next page) or
(previous page).
The page consists any 8 values selected from the Table 1 and displayed
simultaneously on the display. The page definition is described in the
Display mode. Depending on the location, meter buttons can perform
different functions. Functions are described in the bar on the bottom of the
screen. If the button lacks description, it is inactive at the moment.
