ND30-09D 4 User's manual
Removal of the meter housing during the warranty period voids the
warranty.
This meter conforms to all requirements of the electromagnetic
compatibility in the industrial environment.
A switch or a circuit-breaker should be installed in the building or
facility. It should be located near the device, easily accessible by the
operator, and suitably marked.
4 INSTALLATION
The meter is intended to be fixed to the panel with mounting brackets as
presented on Fig. 1. The meter housing is made of a self-extinguishing
plastics.

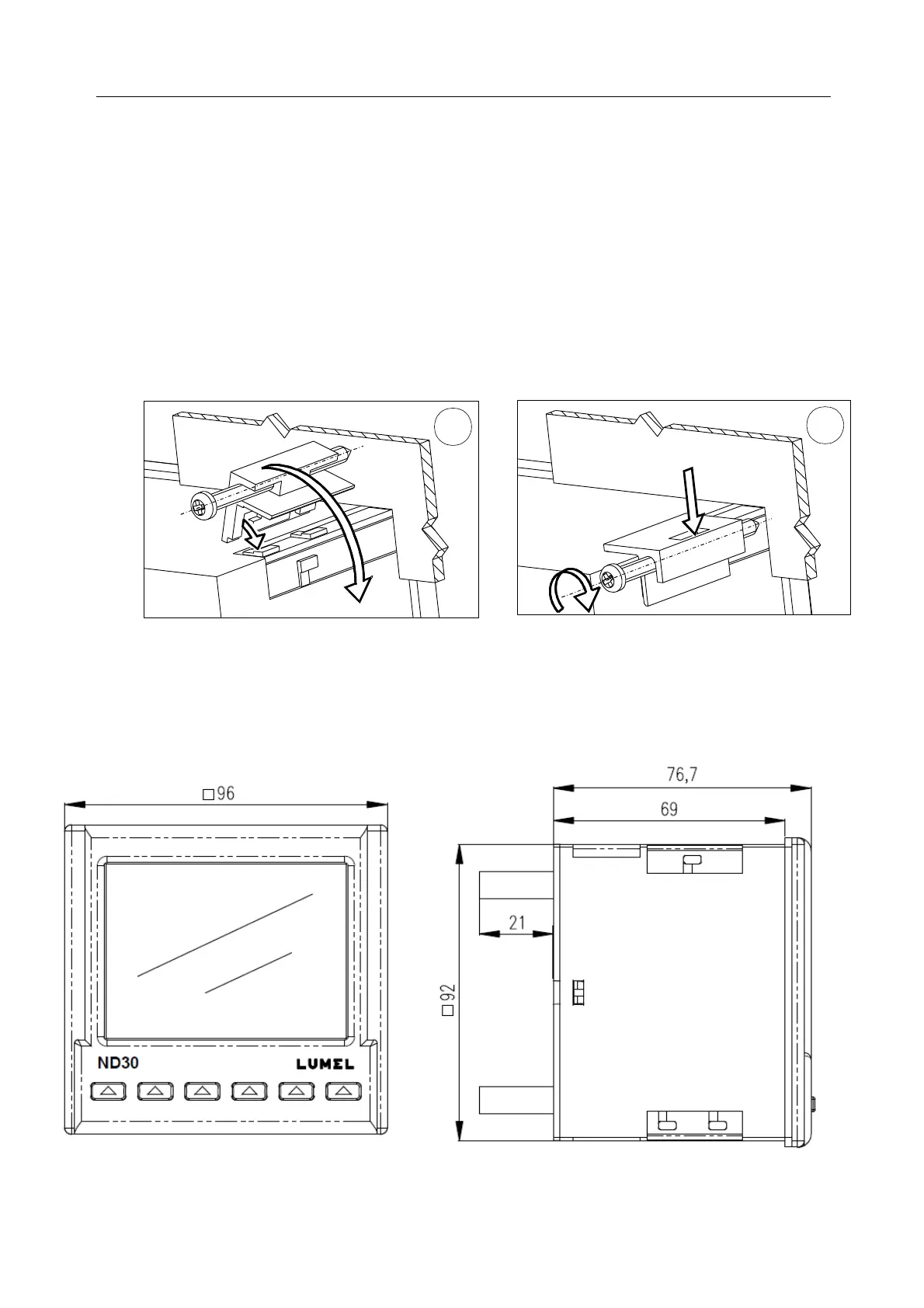

Fig. 2. Meter fitting
Housing overall dimensions 96 x 96 x 77 mm, dimensions of the assembly
hole 92.5 x 92.5 mm. There are screw terminal strips on the outer side of
the meter which enable the connection of external wires of diameter up to
2.5 mm
2
.
Fig. 3. Overall dimensions of the ND30 meter
