GB
16

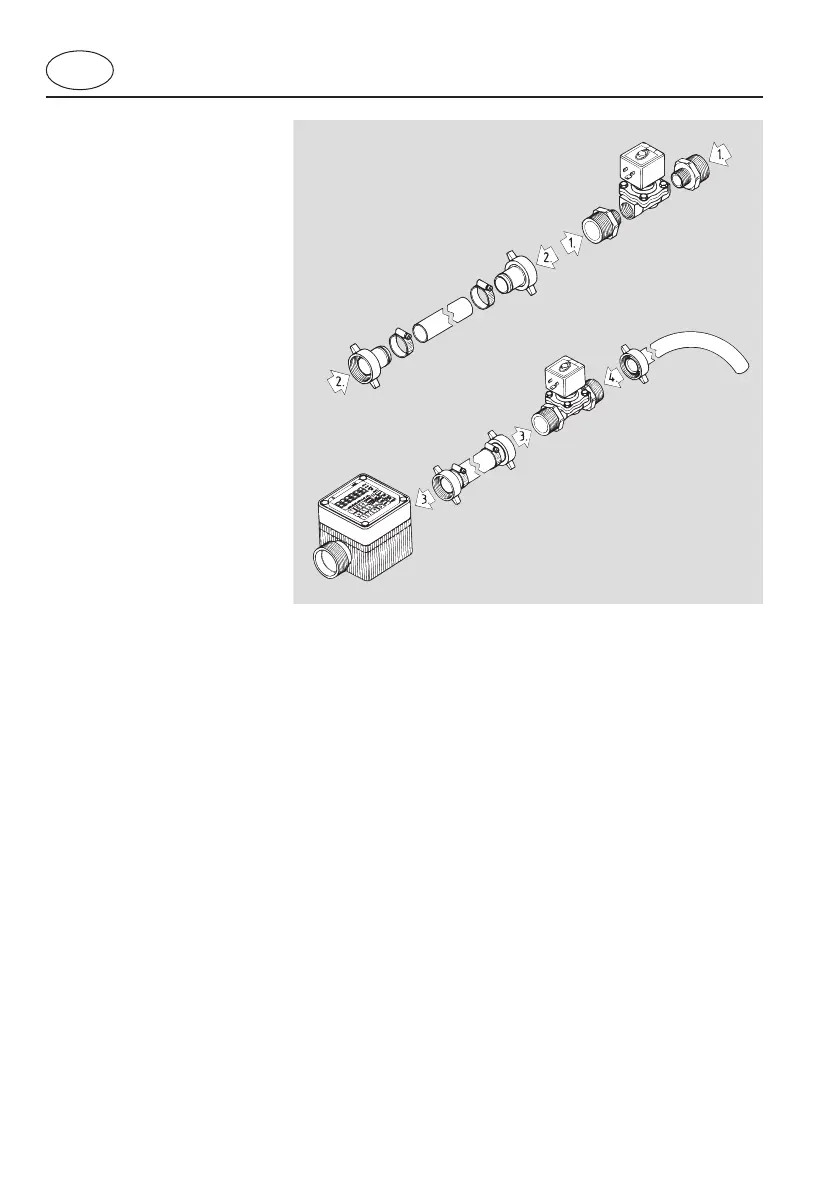

2.3 Valve connection
Mounting steps:
1. Screw the double nipple
G 3/4 – G 1 1/4 into the inlet
and outlet side of the solenoid
valve
2. Mount the hose connection
G 1 1/4 on both sides of the
hose
3. Connect the hose with the flow
meter outlet and the solenoid
valve inlet
Note flow direction of the
solenoid valve!
4. Screw the discharge bend onto
the outlet side of the solenoid
valve
Valve connection
3. Maintenance and servicing
3.1 Cleaning the filter and check valve
It is advisable to flush and clean the basic flow meter after handling aggressive, tacky, crystallizing or very
contaminating liquids.
Procedure type ST, SL, LM and UN
1. Empty the flow meter
2. Release the wing nut
3. Remove the filter and clean with a paintbrush or blow through with compressed air
4. Press in the check valve manually and blow through with compressed air
B. Basic flow meter
