2.3.2 Connecting the complete version Ex-RM1m K 230 V
The electrical connection is made using explosion proof plug-in connections. The mains is connected to the
explosion proof plug (CEAG). The maximum rating of the fuse for mains outlet socket shall be 16 A. Pump and
solenoid valve are connected to the two flange boxes of the relay module with plug system eXLink (CEAG) or mini
CLIX (steel). Maximum load: Pump 4 A, solenoild valve 0.5 A.

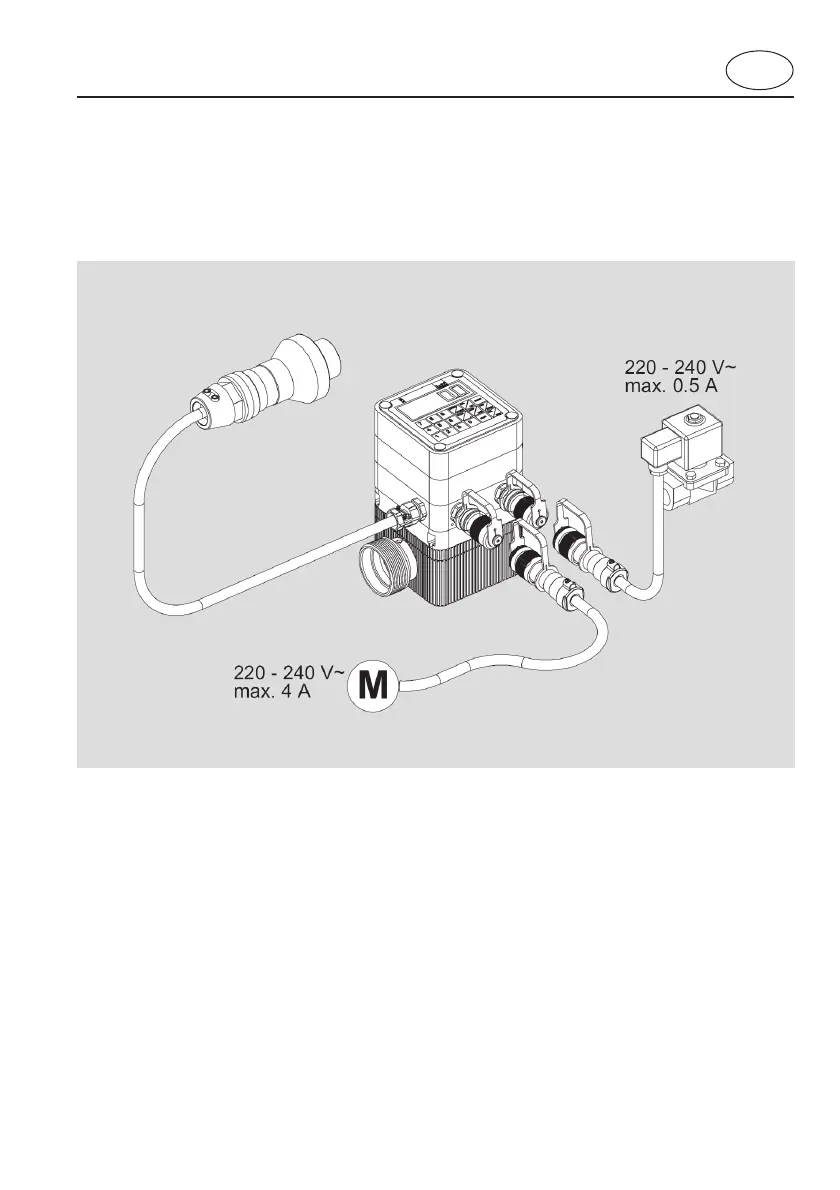

E. Relay module Ex-RM1m
