Lutz ST - Traceability; Annex; Terminal Assignment of Cables and Connectors

GB
59
G. Traceability / H. Annex
1 Plus (Battery approx. 4.5 V,
Relay module approx. 5 V)
2 Counting impulse
3 Minus
4 Relay pump

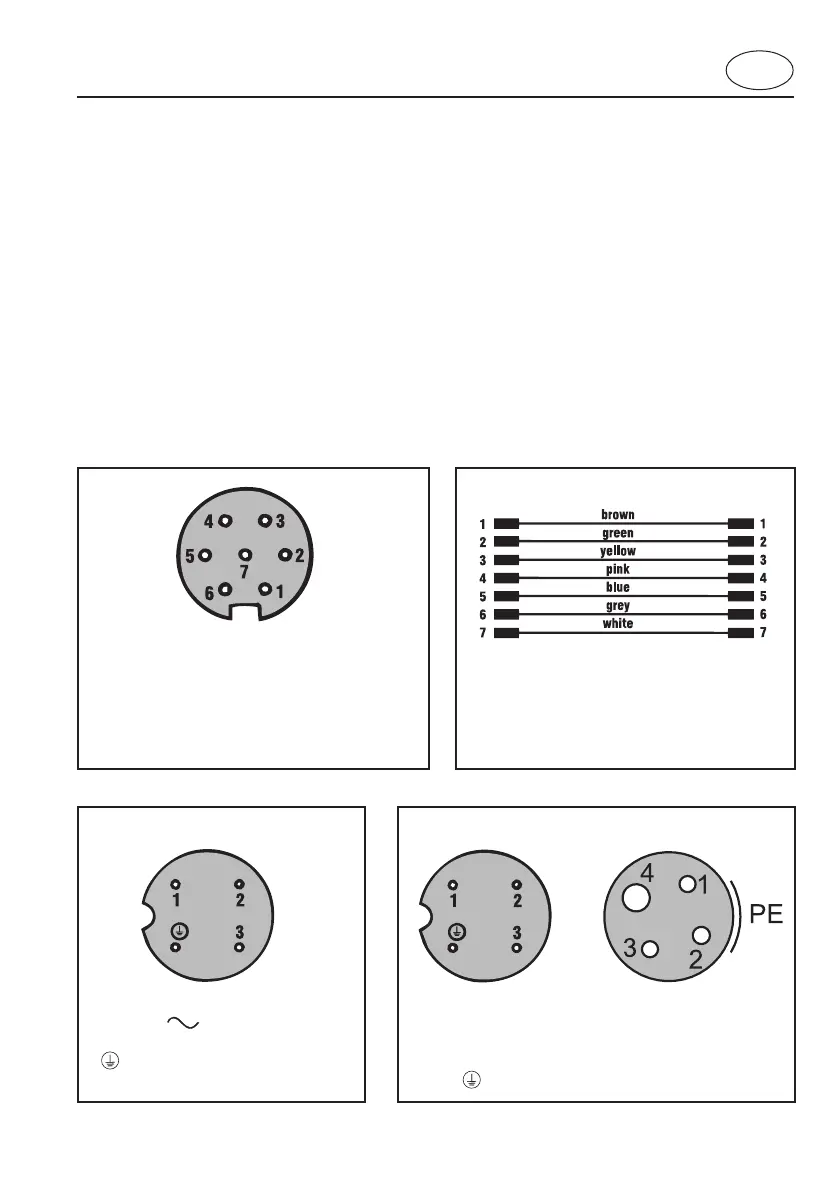

Data outlet operating unit Terminal assignment of data line
H. Annex
1. Terminal assignment of cables and connectors
Relay module RM 1- mains connection
Relay module RM 1 - connection of external electrical appliances
1 Neutral conductor
2 Pump motor / SLOW-Valve
3 Main valve
4 Not in use
PE Earth conductor
1 + 2 110-230V / 50-60 Hz
3 Not in use
Earth conductor
Ex-RM1m RM1
5 Not in use
6 Relay valve
7 Not in use
G. Traceability
Products manufactured by Lutz-Pumpen for potentially explosives atmospheres are identified by an individual
batch number which allows them to be traced. This number provides the year of construction and the design of
the equipment.
This product is an appliance for potentially explosive atmospheres. In this regard and in compliance with the
EC ATEX 94/9 Directive, provisions must be made to ensure ascending and descending traceability.
Our ATEX notified quality system ensures this traceability up to the initial point of delivery.
Except as otherwise agreed in writing, anyone that guarantees to redeliver said equipment undertakes to put in
place a system that allows for equipment that is not conform to be recalled if necessary.
