GB
35
Operation
Display
+
In automatic mode input is not possible (see chapter C 3.2.1).

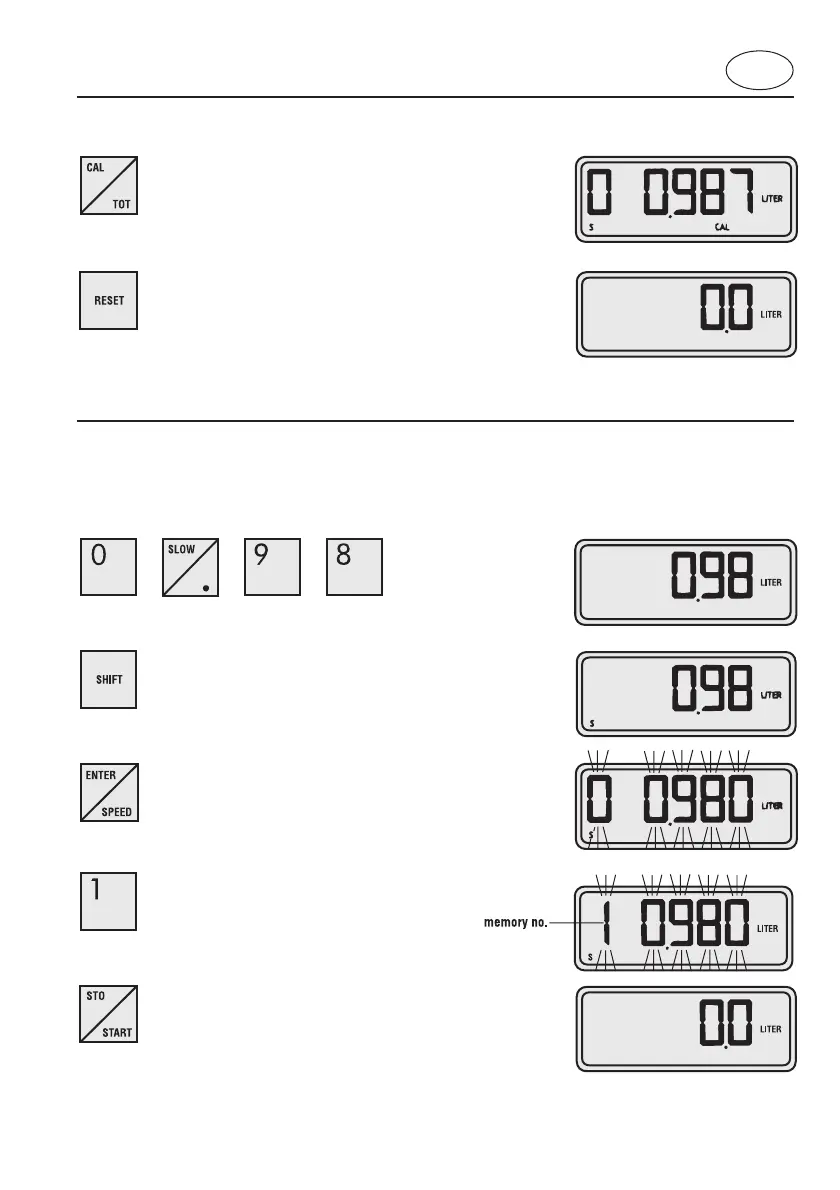

3.3.4 Entering the
correction factor into an addressable memory location
Operation
Display
Entering the correction factor
Entering the memory number
+
In automatic mode input is not possible (see chapter C 3.2.1).
C. Operating unit
34
36
Table of Contents
Default Chapter
5
Table of Contents
5
General
8
Hazard
9
Safety Information
9
Scope of Supply
9
Basic Flow Meter
10
Proper Use
10
Application in Explosion Hazard Areas
10
Technical Data
11
Maximum Pressure Depending on Temperature of the Medium
11
Complete Hose System
12
Pressure Surges (Water Hammer)
12
Pressure Drop
12
Accuracy of Measurement and Flow
13
Optimization of Measurement Accuracy by Calibration
13
Installation
14
Connection for Drum Pump Operation
14
Connection to the Piping System - Flange Connection
15
Valve Connection
16
Maintenance and Servicing
16
Cleaning the Filter and Check Valve
16
Dismantling the Basic Flow Meter
17
Repairs
17
Operating Unit
18
Proper Use
18
Technical Data
18
Application in Explosion Hazard Areas
19
Electrical Data
20
Installation
21
Insert the Batteries
21
Turning the Operating Unit
21
Separate Installation of the Operating Unit
22
Hose Installation of the Operating Unit
23
Operation
24
Manual Mode
24
Resetting the Part Volume Meter
24
Displaying Totalizer
24
Displaying Flow Rate
24
Key Lock in Manual Mode
25
Automatic Mode
25
Switching between Manual and Automatic Mode
25
Entering the Filling Volume
26
Starting the Filling Process
26
Interrupting the Filling Process
26
Correcting the Filling Process
27
Stopping the Filling Process
28
Repeating a Preselected Volume
28
Cycle Counter
29
Filling with Step-By-Step Interruption (SLOW Mode)
29
Entering/Deleting the SLOW Volume
29
Displaying the SLOW Volume
30
System Protection through Detection of Faults
31
Locking Function Automatic Mode
32
Calibration
32
Calibrating through Comparative Measurement
33
Changing the Correction Factor in the Main Memory
34
Displaying the Correction Factor from the Main Memory
34
Entering the Correction Factor into an Addressable Memory Location
35
Displaying the Correction Factor from an Addressable Memory Location
36
Copying the Correction Factor from the Main Memory into the Addressable Memory Location
36
Copying the Correction Factor from an Addressable Memory Location into the Main Memory
37
Calculating of the Correction Factor in Automatic Mode
38
Special Functions
39
Changing the Unit of Measurement
39
Unit of Measurement Litres
39
Unit of Measurement US-Gallons
39
Unit of Measurement IMP-Gallons
39
Conversion of the Flow Volume in Kilograms Via the Correction Factor
40
Example
40
Deleting Totalizer
41
Correcting Operation Errors
41
Maintenance and Servicing
42
Changing the Batteries
42
Relay Module RM1/RM3 and Mains Unit NG1
43
Proper Use
43
Technical Data
44
Application in Explosion Hazard Areas
44
Electrical Data
45
Installation
46
Retrofitting the Relay Module/Mains Unit
46
Connection for Automatic Mode
47
And Operating Unit
50
Of Operating Unit
51
Maintenance and Servicing
52
Relay Module Ex-Rm1M
53
Proper Use
53
Technical Data
53
Special Conditions (Ex-Rm1M B 230 V)
54
Installation
54
Installation Location
54
Dismantling/Assembly
55
Dismantling
55
Assembly
55
Electrical Connection
55
Connecting the Basic Version Ex-Rm1M B 230
56
Connecting the Complete Version Ex-Rm1M K 230
57
Maintenance and Servicing
58
Changing the Fuse
58
Repairs
58
Traceability
59
Annex
59
Terminal Assignment of Cables and Connectors
59
Trouble Shooting
60
Certificates of Conformity
63
Spare-Part List Accessories for Modular Flow Meter System
64
Spare Part List Flow Meter Program
68
