Flap position - current flap position. Requires the LX Flap sensor for operation.
Rec. flap position - shows the recommended flap position, as defined by yourself in the Glider
sub-section.
4.1.3.3 Status indicators
Flarm status
Is represented with a red Flarm symbol, depicted with Flarm status indicator icon. If the Flarm
icon is present, the device has an established connection with a Flarm device. On how to get
more info from the Flarm device, check the Info page section. For information about Flarm
objects and the Flarm radar page, check the Flarm radar page.

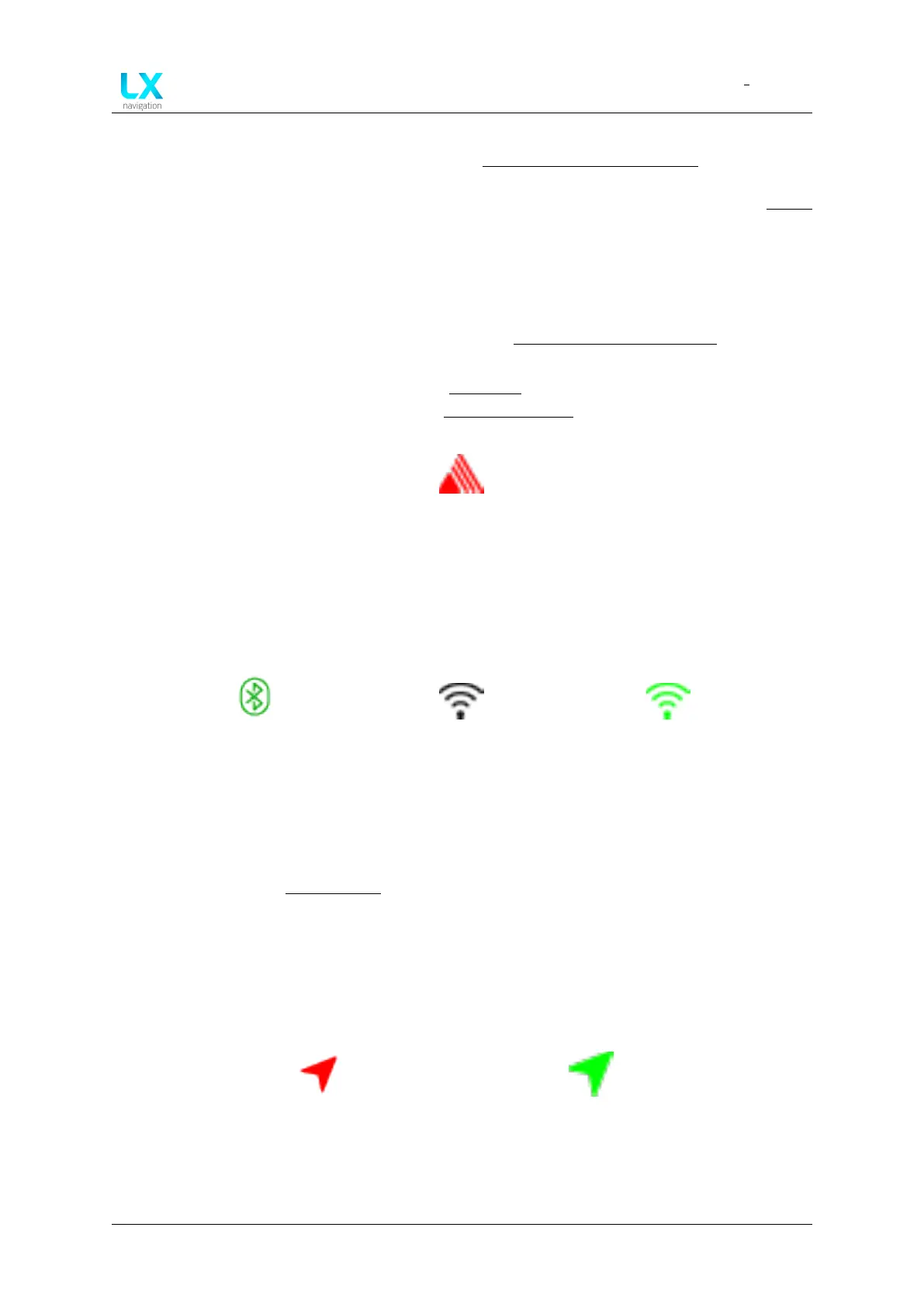

Figure 4. Flarm status indicator icon
Connectivity status
The LX 10k has both Bluetooth and WiFi capability. Both modes are depicted with an appropri-
ate icon.
Figure 5. Bluetooth sta-
tus indicator
Figure 6. WiFi is on indi-
cator
Figure 7. WiFi is con-
nected indicator
The Bluetooth icon indicates the current wireless mode is set to Bluetooth. The WiFi icon
shows in two colours. A black WiFi icon indicates the wireless mode as set to WiFi, while the
green WiFi icon indicates that we have established a connection. For more information on
connectivity, check the Connectivity section.
GPS status
The GPS status indicator indicates whether or not the device has a valid GPS lock. Under valid
GPS lock, a connection to at least four satellites is required.
Figure 8. GPS signal is not valid Figure 9. GPS signal is valid
Device manual Public 24
