LX 10k
Advanced operation
Document name: LX 10KUM
Document revision: R1

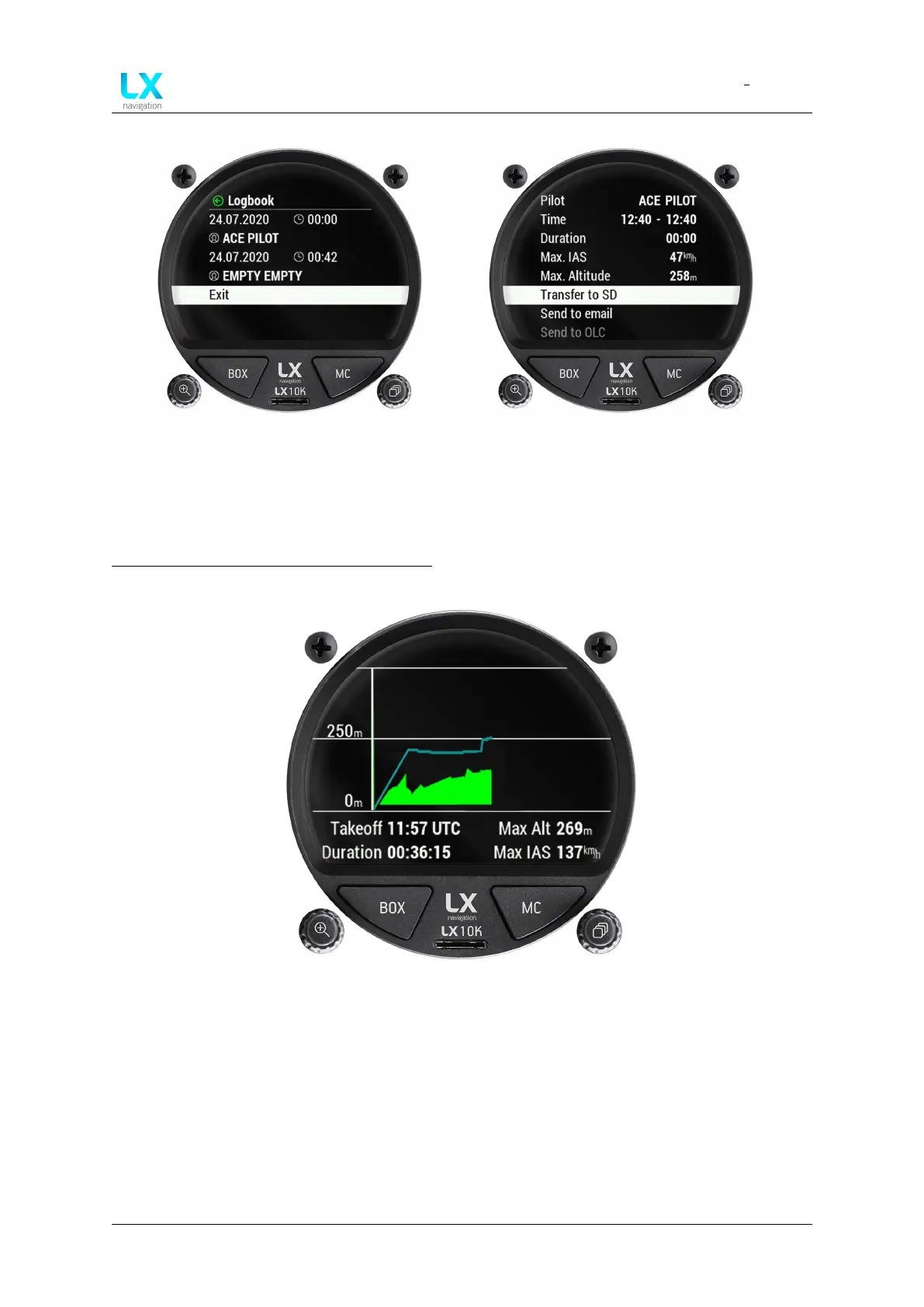

Figure 47. List of flights in the logbook Figure 48. Flight details in the logbook
4.7.2 Flight statistics
Once the device enters flight mode, which is explained in detail in sub-section
A word on internal battery and flight mode, the Flight statistics page appears.
Figure 49. Flight statistics page
We can see the take-off time, flight duration, maximum altitude and maximum indicated
airspeed, as well as an altitude graph.
Device manual Public 49
