LX 10k
Advanced operation
Document name: LX 10KUM
Document revision: R1
Bank scale - the inverted white triangle indicates zero on the bank scale. Major tick marks at
30° and 60° and minor tick marks 10°, 20°, and 45° are shown to the left and right of the zero.
Angle of bank is indicated by the position of the pointer on the bank scale.
Turn coordinator

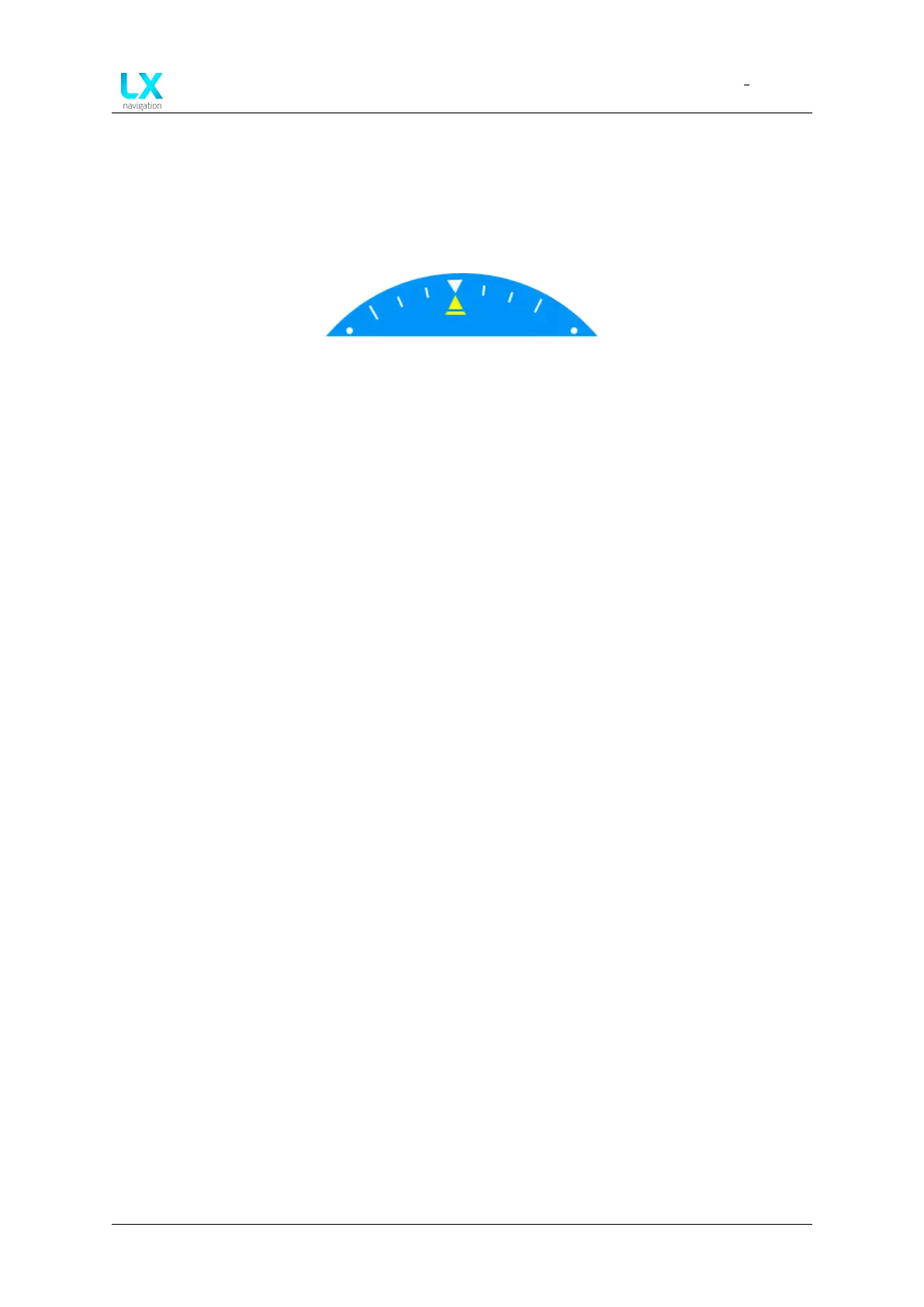

Figure 42. Turn coordinator indicator
Standard rate turn indicator - standard rate turn indicator is represented by two airplane
silhouettes on the bank indicator. The silhouettes are hidden when IAS is less than 10 m/s.
The pilot performs standard rate turn when the bank indicator marker (yellow triangle) aligns
with airplane silhouette.
The standard rate turn is defined as 3° per second turn (which gives a complete 360° turn in 2
minutes).
Bank pointer - bank pointer is displayed as a yellow triangle and is always fixed at its position.
Underneath the yellow triangle we can find Slip/skid indicator.
Slip/skid indicator is displayed as a thin rectangle below the Bank pointer. The combination of
the two is also referred to as ”sailboat” due to its looks.
